Battery Current Sensor: Locations

Harness Routing Views

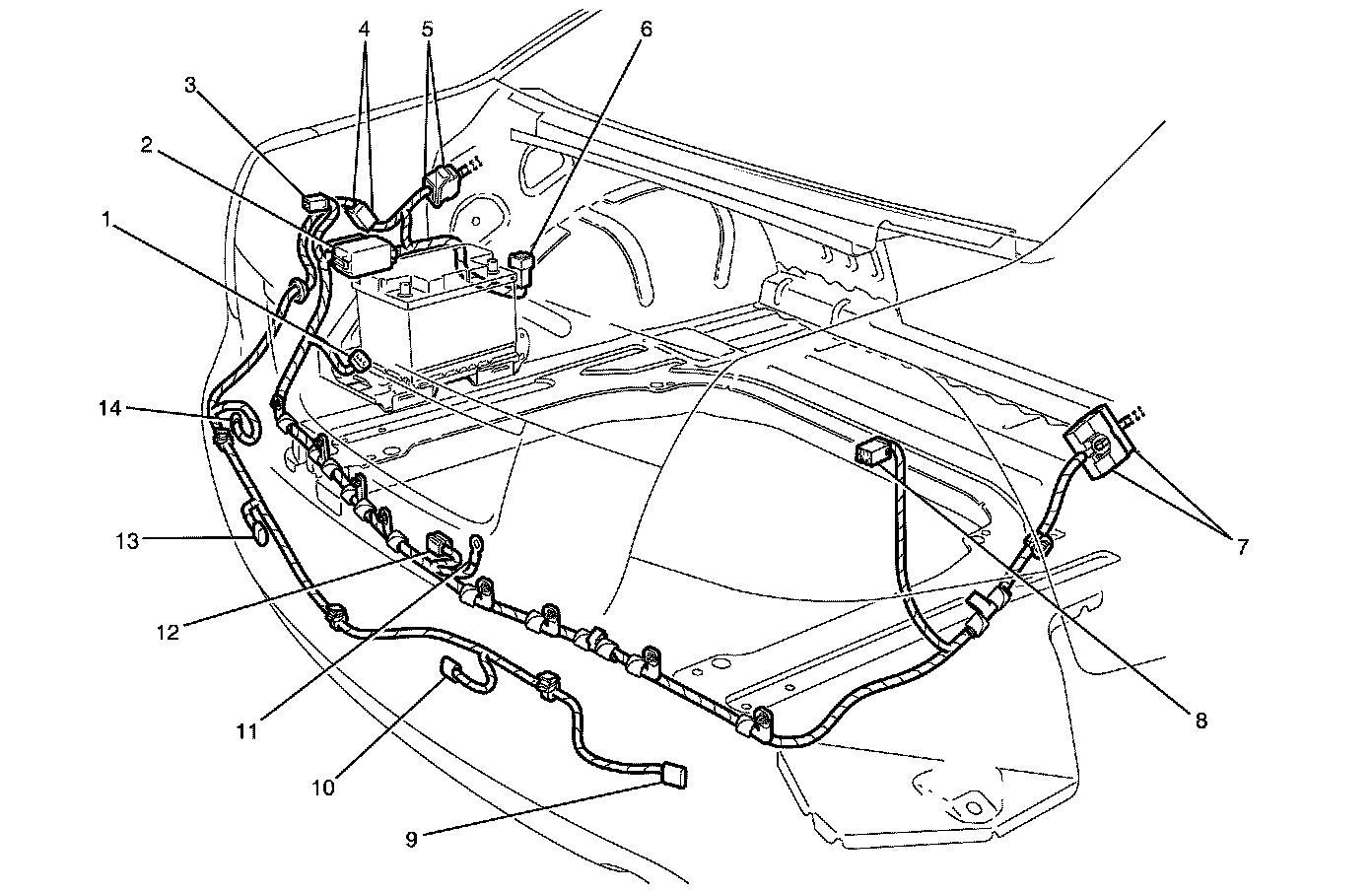

Body Wiring - Rear (Short Wheel Base)




1 - Battery Current Sensor Connector - B168
2 - Fuse Block - Rear - X131
3 - Tail Lamp Assembly - Left Connector - X451
4 - Body Rear to Rear Fascia Wiring Connector - X405
5 - Left Hand Body Wiring Connector - X403
6 - Battery Cable to Body Rear Harness - X408
7 - Right Hand Body Wiring Connector - X404
8 - Tail Lamp Assembly - Right Connector - X450
9 - Rear Object Alarm Sensor - RR Corner Connector - B133
10 - Rear Object Alarm Sensor - RR Middle Connector - B133
11 - Rear Compartment Lid Latch Bracket Ground - G409
12 - Rear Compartment Lid Latch Assembly Connector - Y23
13 - Rear Object Alarm Sensor - LR Middle Connector - B133
14 - Rear Object Alarm Sensor - LR Corner Connector - B133
