Data Link Connector: Locations

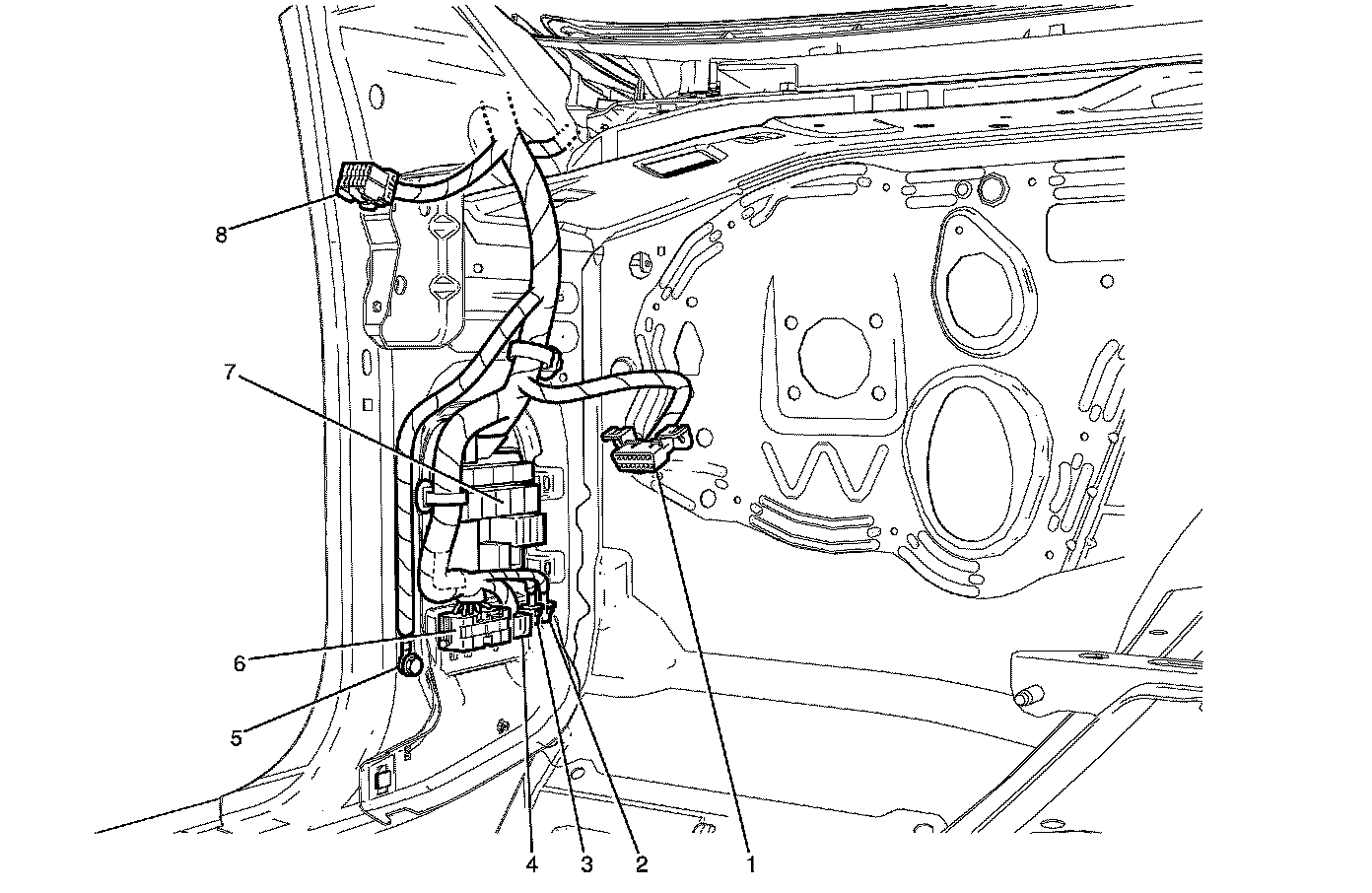

Harness Routing Views

Left Kick Panel (Left Hand Drive)




1 - Data Link Connector (DLC) Connector - X40
2 - Antenna Diversity Harness to Diversity Coaxial Harness Connector - X367
3 - Antenna Quad Harness to Coaxial Harness Connector - X328
4 - Left Hand Body Wiring Connector 2
5 - Left Cockpit Endplate Ground - G202
6 - Left Hand Body Wiring Connector 1 - X202
7 - Fuse Block - Instrument Panel - X129
8 - Headlamp and Dimmer Panel Switch - S125
