Data Link Connector: Service and Repair

Data Link Resistor Replacement

Removal Procedure




1. Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (Service and Repair).

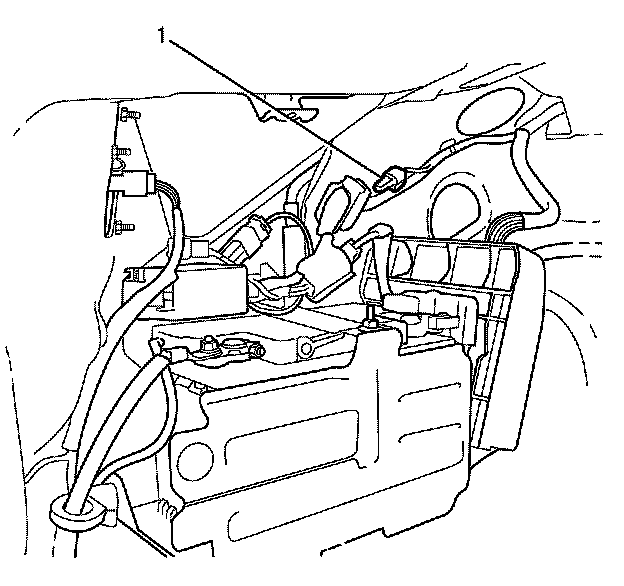

2. Remove the tape from the data link resistor (1).
3. Disconnect the data link resistor (1) from the rear body harness.

Installation Procedure




1. Connect the data link resistor (1) to the rear body harness.
2. Tape the data link resistor (1) to the rear body harness.
3. Install the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (Service and Repair).
