Connector Locations

Harness Routing Views

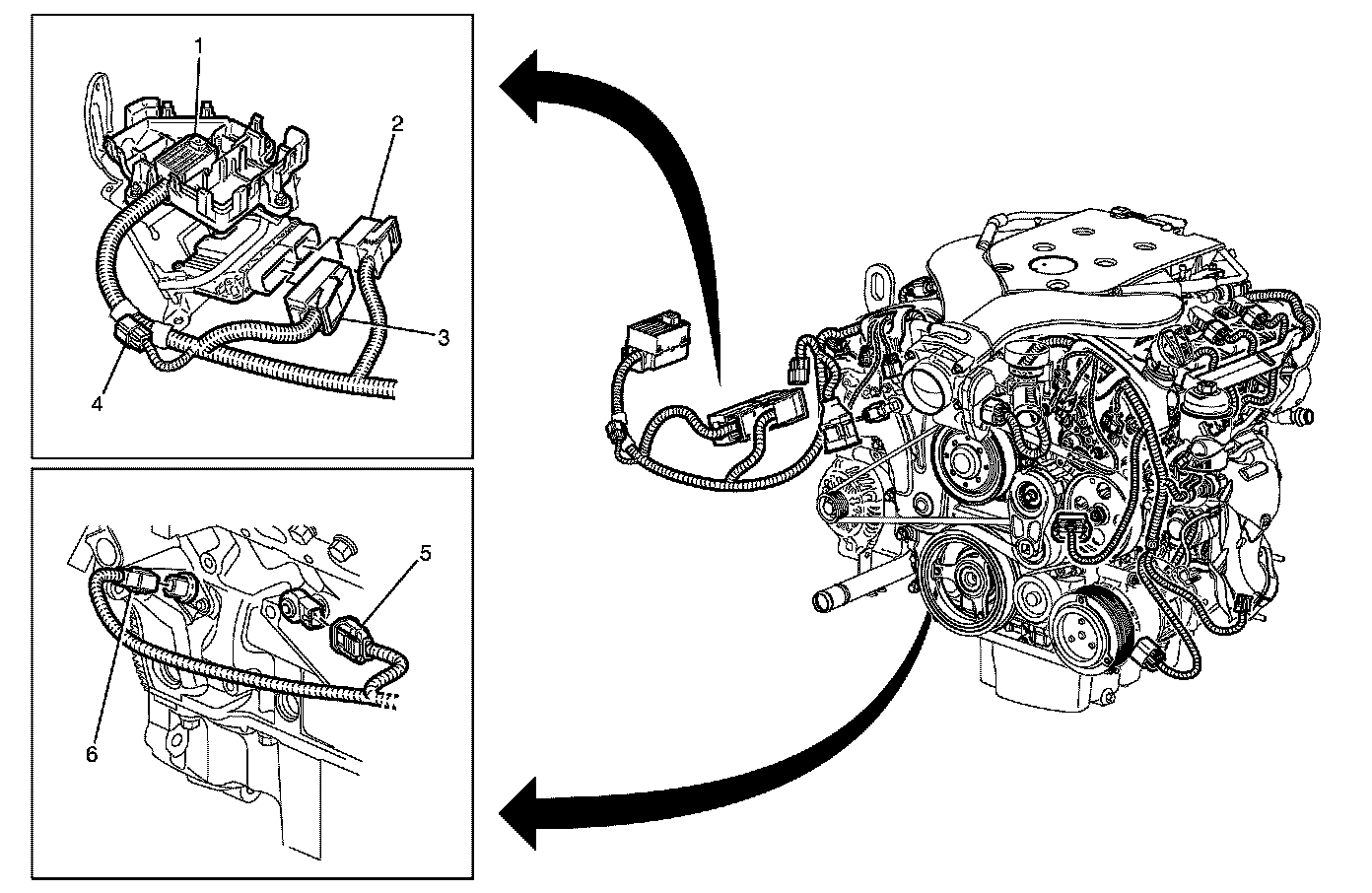

1 - Fuse Block Underhood - X124
2 - Engine Control Module 2 Connector - A43-X2
3 - Engine Control Module 1 Connector - A43-X1
4 - Body Front Wiring Connector 3 - X103
5 - Knock Sensor (KS) Bank 1 Connector - B65
6 - Crankshaft Position (CKP) Sensor Connector - B30

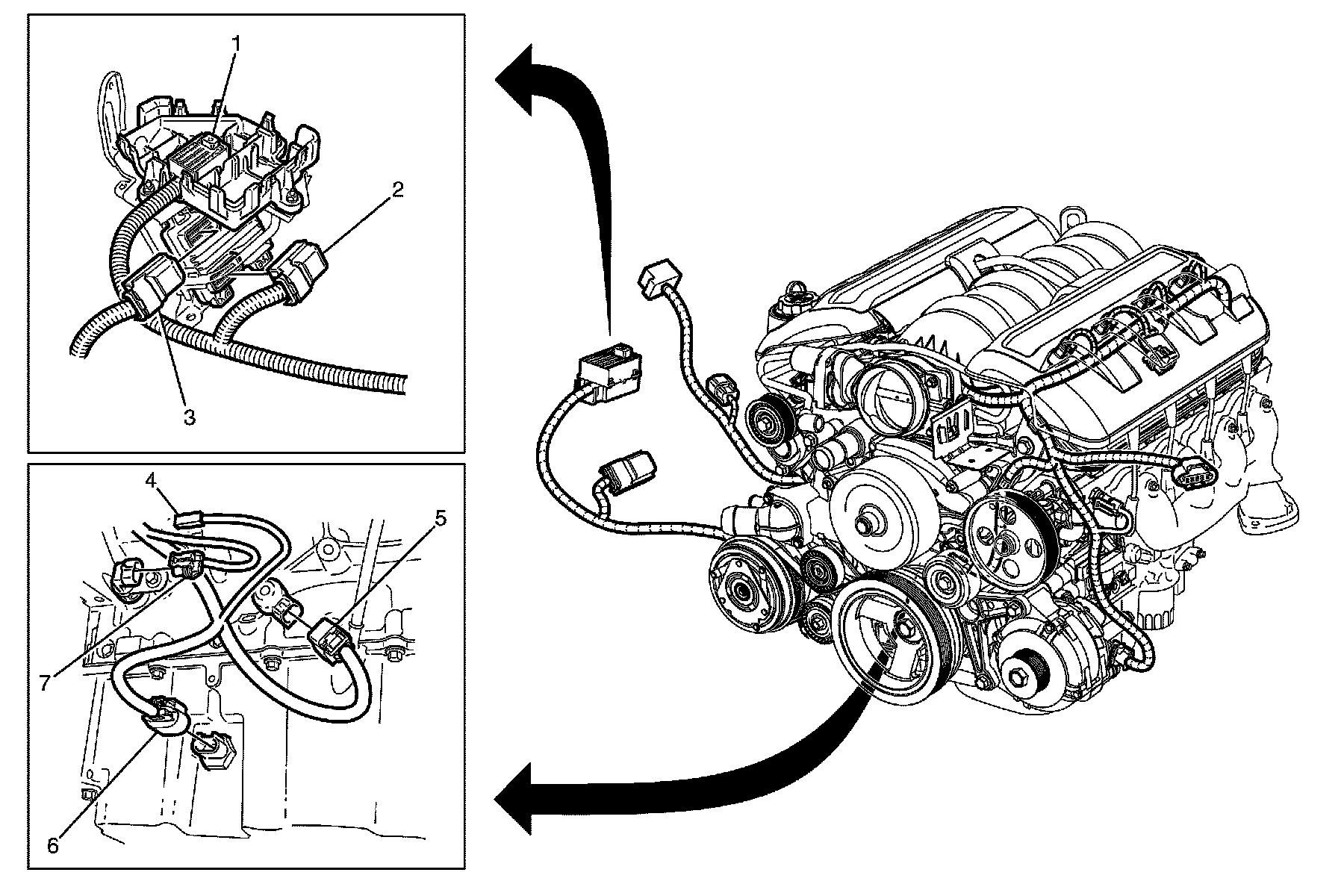

1 - Fuse Block Underhood - X124
2 - Engine Control Module 2 Connector - A43-X2
3 - Engine Control Module 1 Connector - A43-X1
4 - Starter Connector - M15
5 - Knock Sensor (KS) Right Connector - B65
6 - Engine Oil Level/Temperature Sensor Connector - B41
7 - Crankshaft Position (CKP) Sensor Connector - B30
