System Specifications

Primary Camshaft Drive Chain
Left Guide Bolt - Oil Pump 13 Nm (115 lb in)
Tensioner Bolt 23 Nm (17 lb ft)
Upper Guide Bolt 23 Nm (17 lb ft)

Secondary Camshaft Drive Chain
Guide Bolt 23 Nm (17 lb ft)
Shoe Bolt 23 Nm (17 lb ft)
Tensioner Bolt 23 Nm (17 lb ft)

Crankshaft Balancer Bolt - First Pass 100 Nm (74 lb ft)
Crankshaft Balancer Bolt - Final Pass 150 Degrees

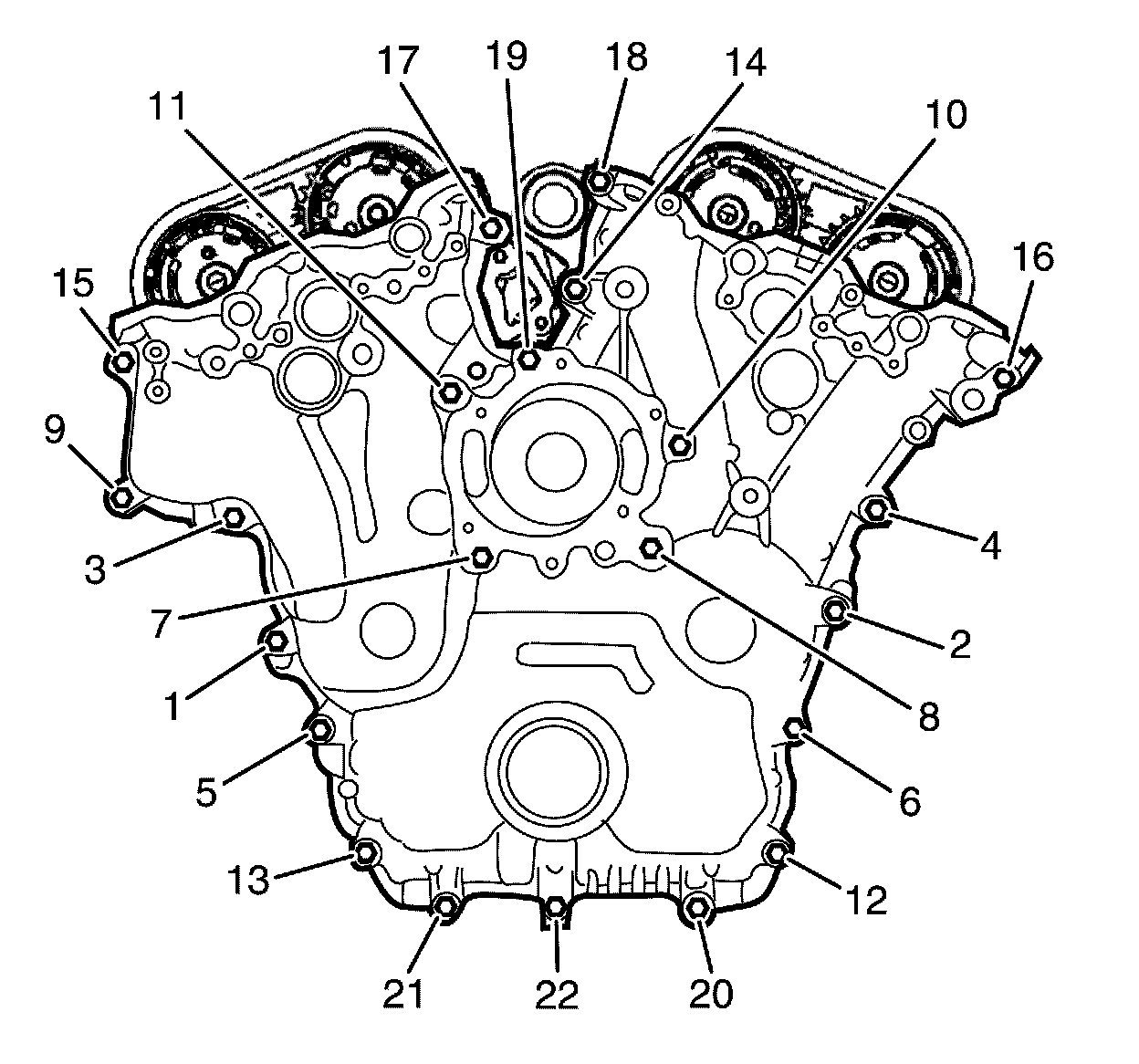

Engine Front Cover Bolt - First Pass 20 Nm (15 lb ft)
Engine Front Cover Bolt - Final Pass 60 Degrees
