Connector Locations

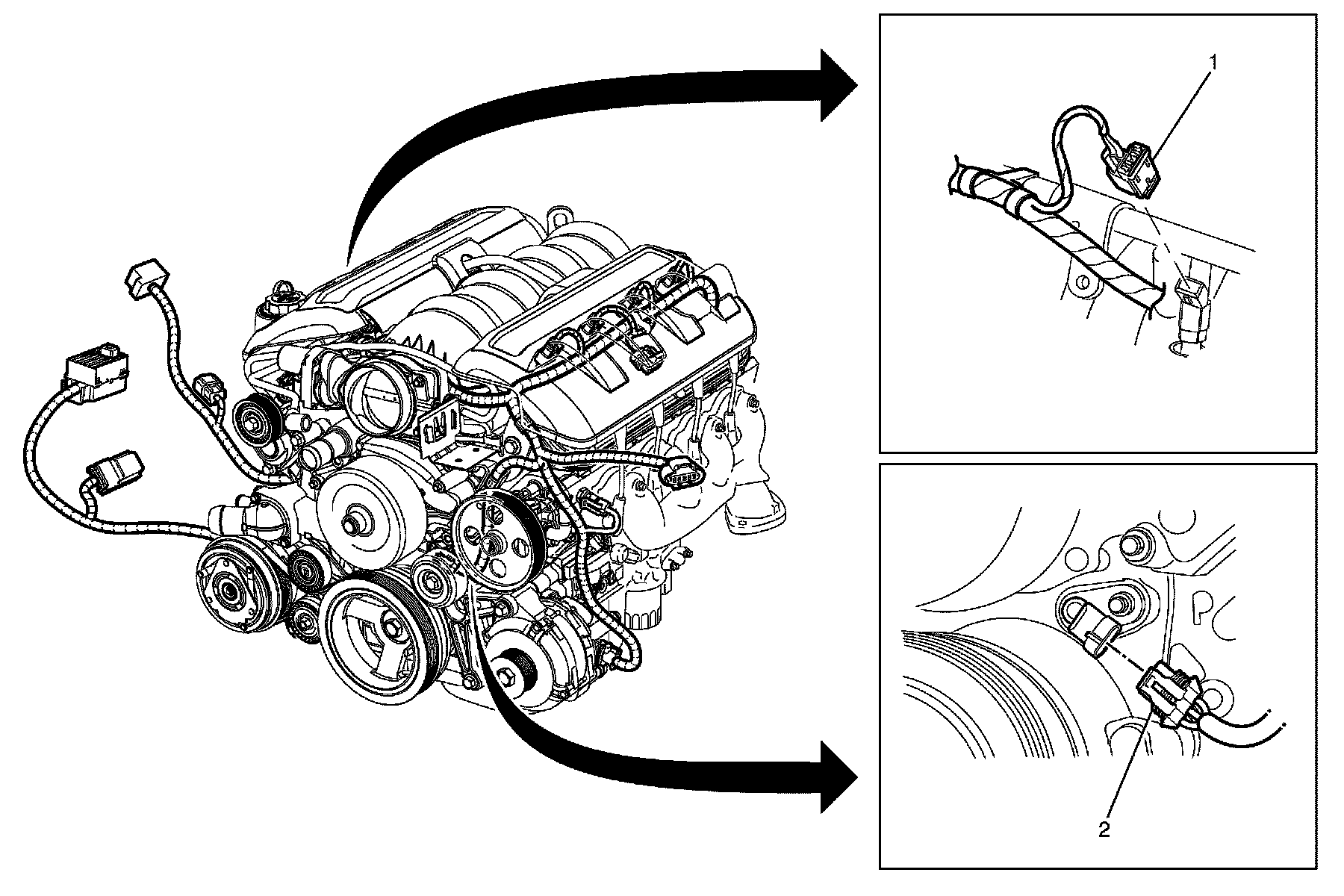

Harness Routing Views




1 - Fuel Injector (Even) Connector - L2
2 - Camshaft Position (CMP) Sensor Connector - B28
