Digital Radio Receiver Replacement

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

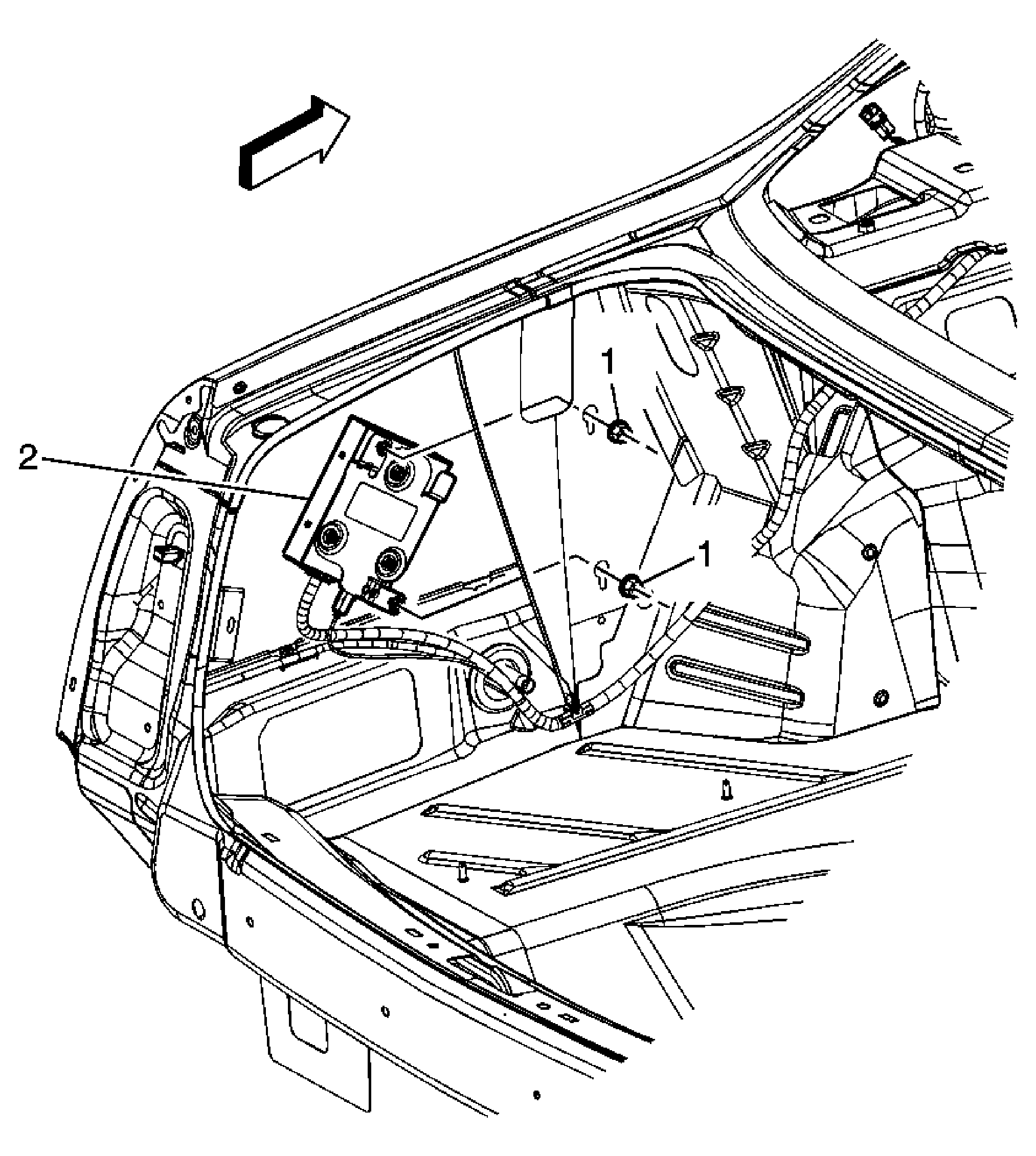

Fig 1: Identifying Digital Radio Receiver & Nuts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the left rear quarter trim panel. Refer to Rear Compartment Side Trim Replacement - Left Side .
1	Digital Radio Receiver Nuts (Qty: 2) NOTE: Refer to Fastener Notice . Tip: The nuts only need to be loosened enough so that the receiver can be moved so that the nuts will fit through the keyhole slot to remove. Tighten: 10 N.m (89 lb in)
2	Digital Radio Receiver Assembly Tip: Disconnect the antenna cable and electrical connectors. Reprogram the digital radio receiver after installation. Refer to Control Module References .
