Engine Views




Harness Routing Views

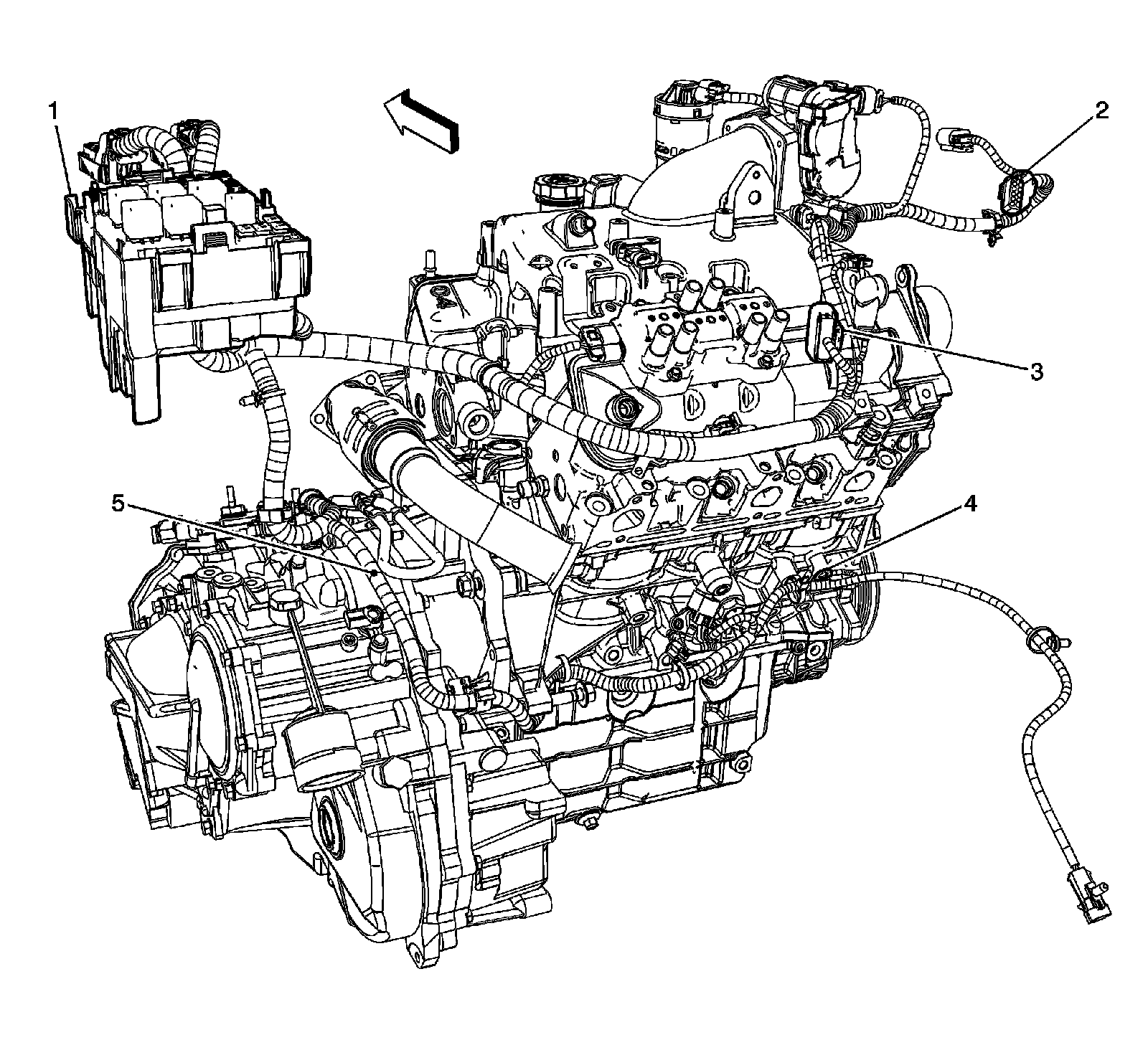

Engine Harness - Rear (LNJ)




1 - Fuse Block - Underhood
2 - X106
3 - X105
4 - G111
5 - J100
