Steering Wheel Secondary/Configurable Control Schematics

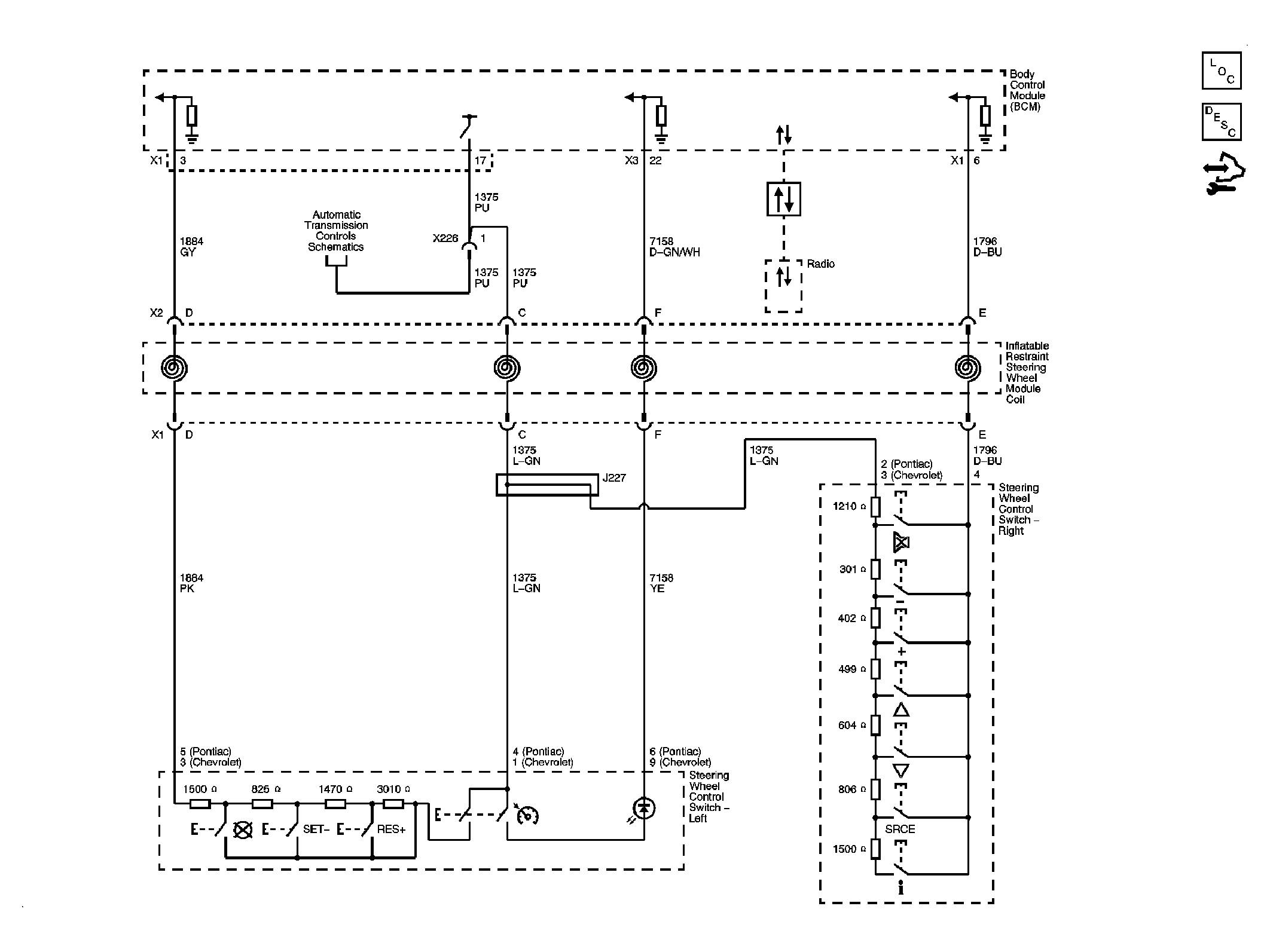

Fig 1: Remote Radio Steering Wheel Controls Schematics (UK3)
GM2086257Courtesy of GENERAL MOTORS CORP.
