Inflatable Restraint Instrument Panel Module Indicator Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

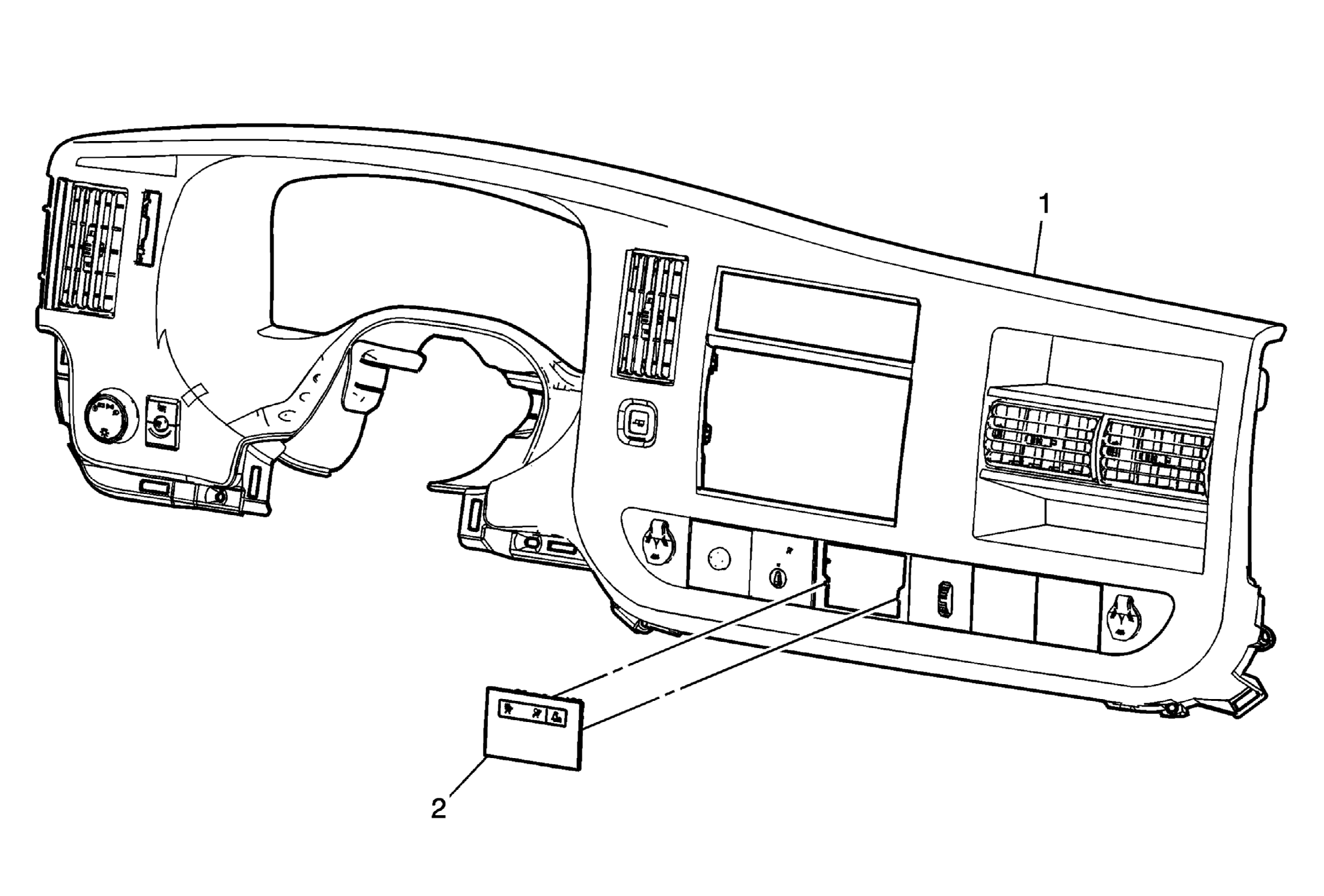

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Cluster Trim Plate Bezel Assembly Refer to Instrument Panel Cluster Trim Plate Bezel Replacement . |
| 2 | SIR Indicator Assembly Procedure: Squeeze the retaining tabs on the back of the switch and push the switch out of the cluster trim bezel assembly. |
