Steering Wheel Control Switch Assembly Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

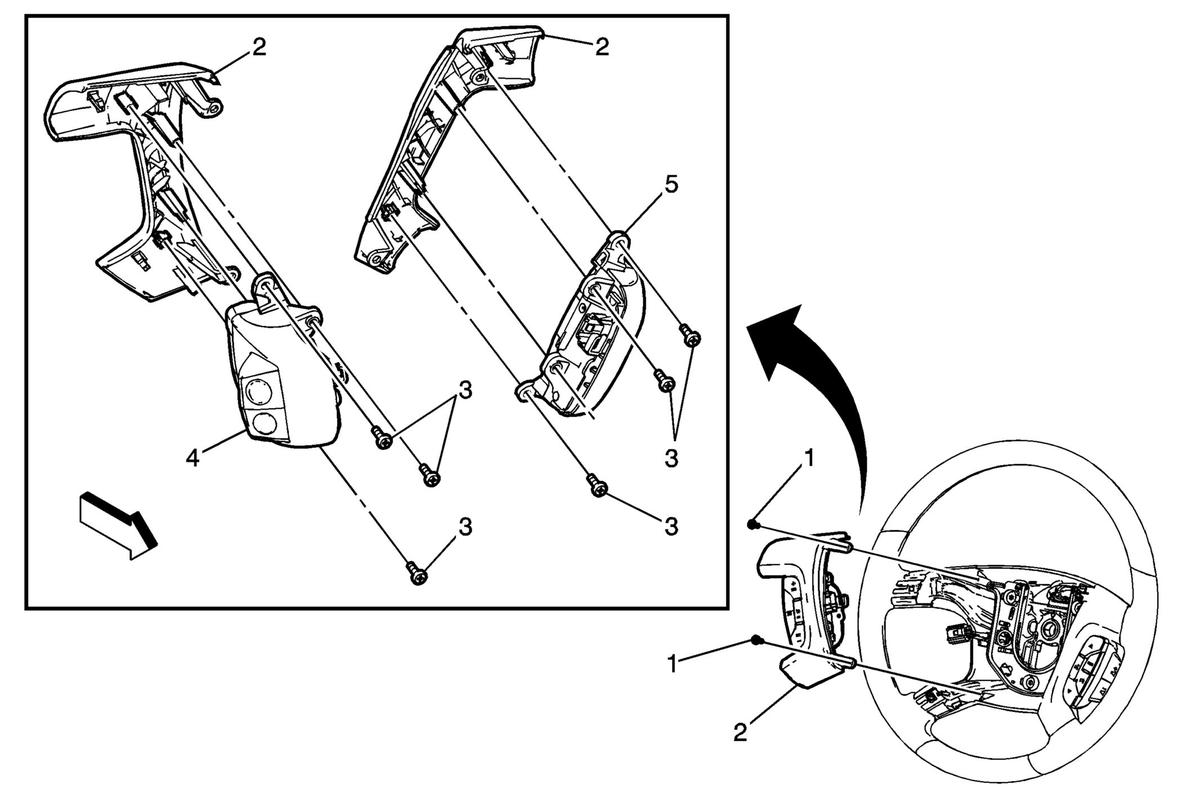

Fig 1: Steering Wheel Control Switch Assembly Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Trim Plate Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Steering Wheel Trim Plate (Qty: 2)
3	Radio Control Screw (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
4	Radio Control Switch Assembly Procedure Disconnect the electrical connector. Make sure the steering wheel control switches are properly seated to the steering wheel trim cover during installation.
5	Cruise Control Switch Assembly Procedure Disconnect the electrical connector. Make sure the steering wheel control switches are properly seated to the steering wheel trim cover during installation.
