Cellular and Navigation Antenna Assembly Replacement
WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

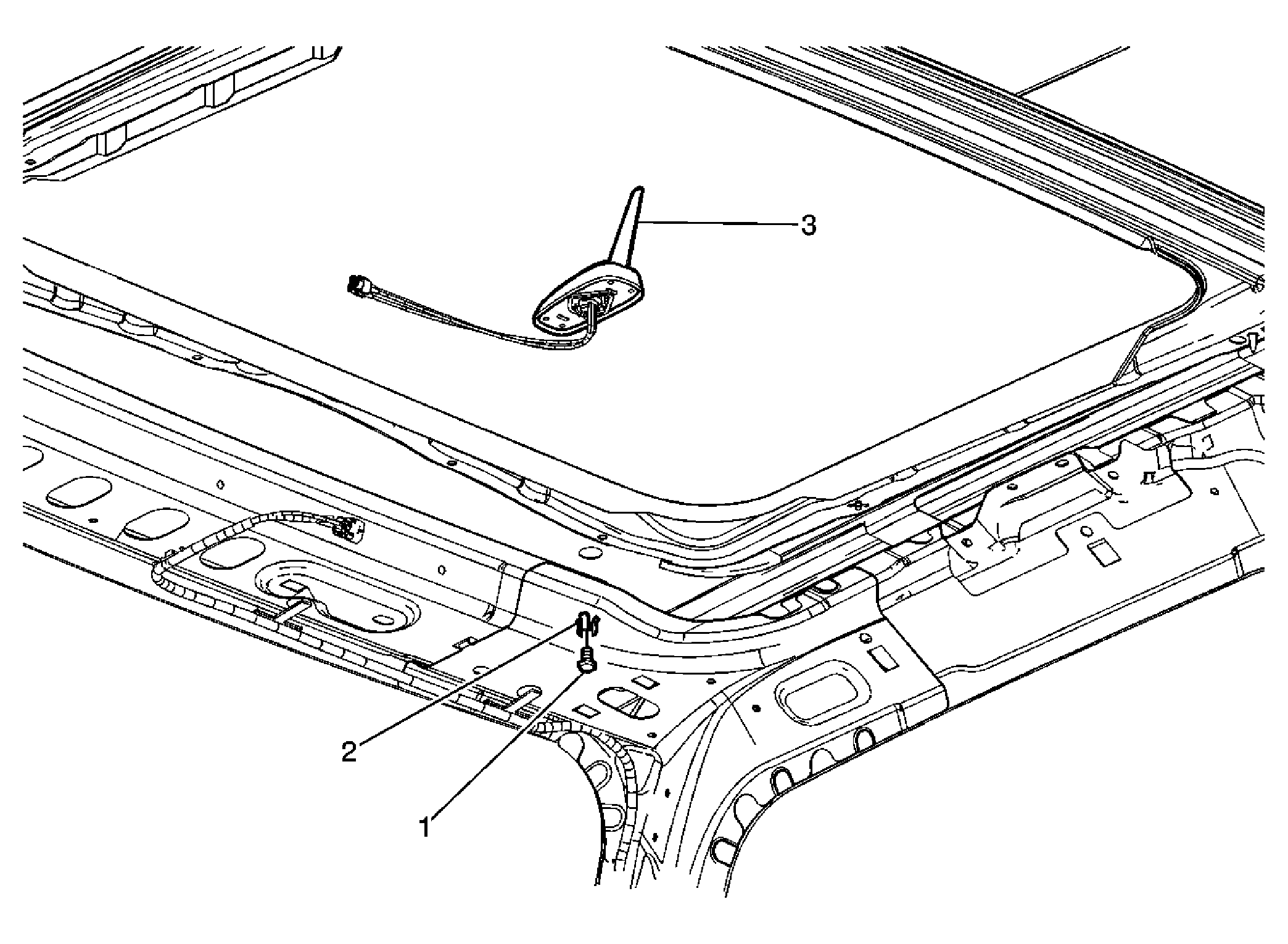

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Lower the front of the headliner. Refer to Headlining Trim Panel Replacement
. |
|
| 1 | Mobile Telephone and Vehicle Location Antenna Assembly Bolt Tighten: 5 N.m (44 lb in) |
| 2 | Mobile Telephone and Vehicle Location Antenna Expansion Sleeve |
| 3 | Mobile Telephone and Vehicle Location Antenna Assembly Tip: Disconnect electrical connections. |
