Data Communication Schematics

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

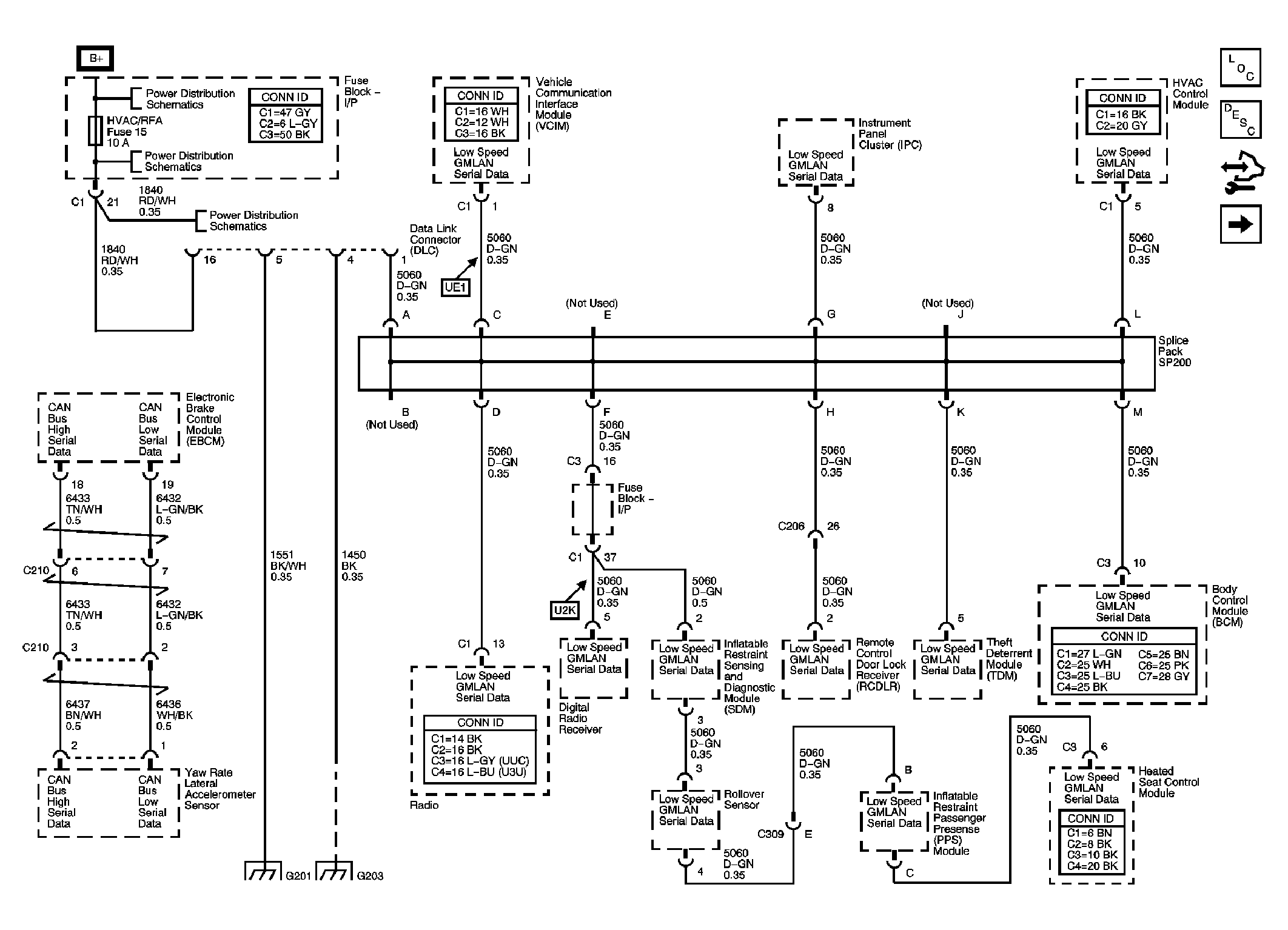

Fig 1: Low Speed GMLAN
GM1923701Courtesy of GENERAL MOTORS CORP.

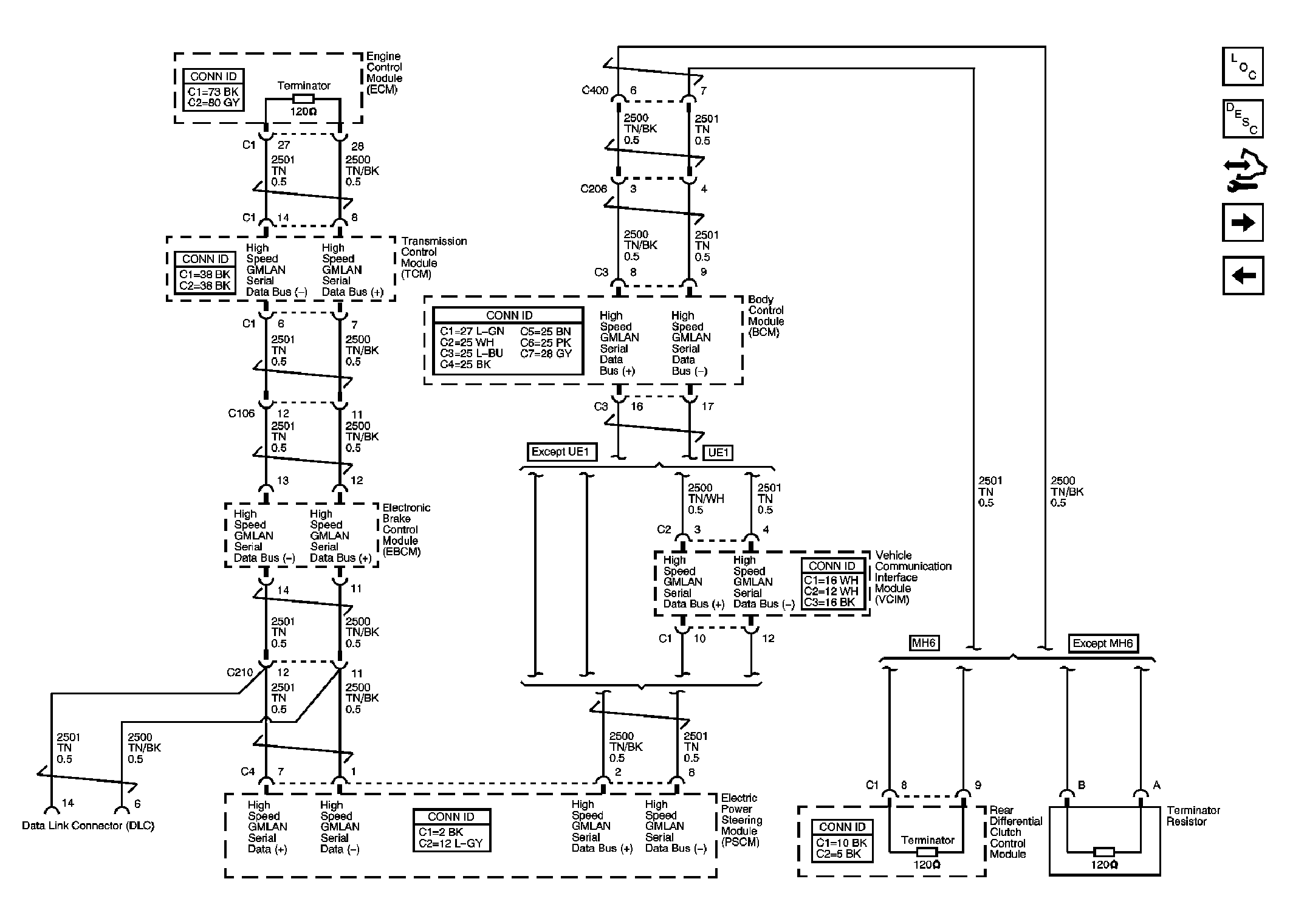

Fig 2: High Speed GMLAN
GM1923703Courtesy of GENERAL MOTORS CORP.
