Door Lock Switch Replacement

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

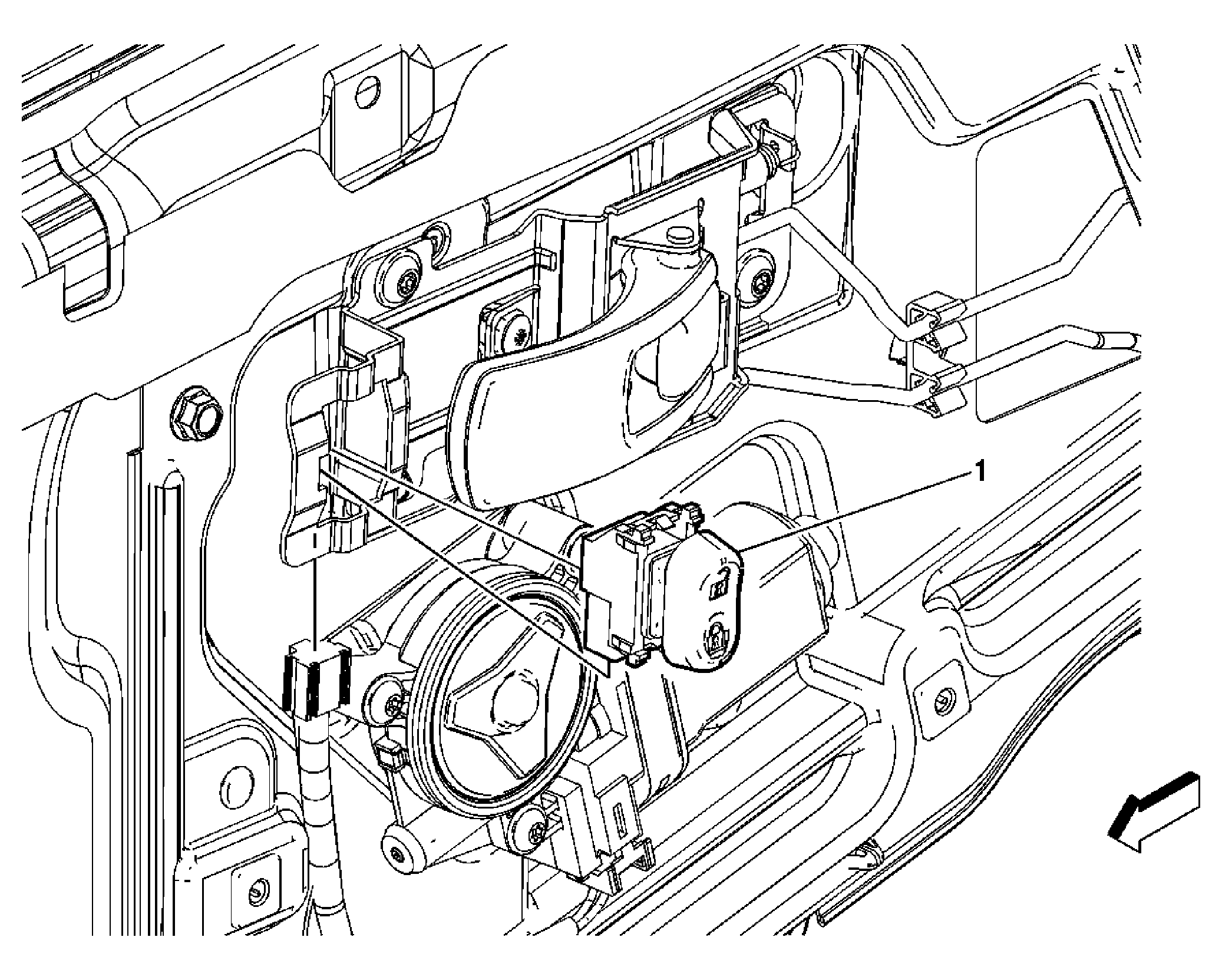

Fig 1: Identifying Power Door Lock Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove front door extension trim panel. Refer to Upper Extension Trim Panel Replacement (Front Side Door) or Upper Extension Trim Panel Replacement (Rear Side Door) . Remove front door handle bezel. Refer to Door Handle Bezel Replacement (Rear Side Door) or Door Handle Bezel Replacement (Front Side Door) . Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Locking System Switch Assembly Tip: Disconnect electrical connector. Use a flat-bladed tool to pry switch from door handle assembly.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove front door extension trim panel. Refer to Upper Extension Trim Panel Replacement (Front Side Door) or Upper Extension Trim Panel Replacement (Rear Side Door) .
Remove front door handle bezel. Refer to Door Handle Bezel Replacement (Rear Side Door) or Door Handle Bezel Replacement (Front Side Door) .
Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement .

Front Side Door Locking System Switch Assembly
Tip:

Disconnect electrical connector.
Use a flat-bladed tool to pry switch from door handle assembly.
