Liftgate Outside Handle Replacement

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

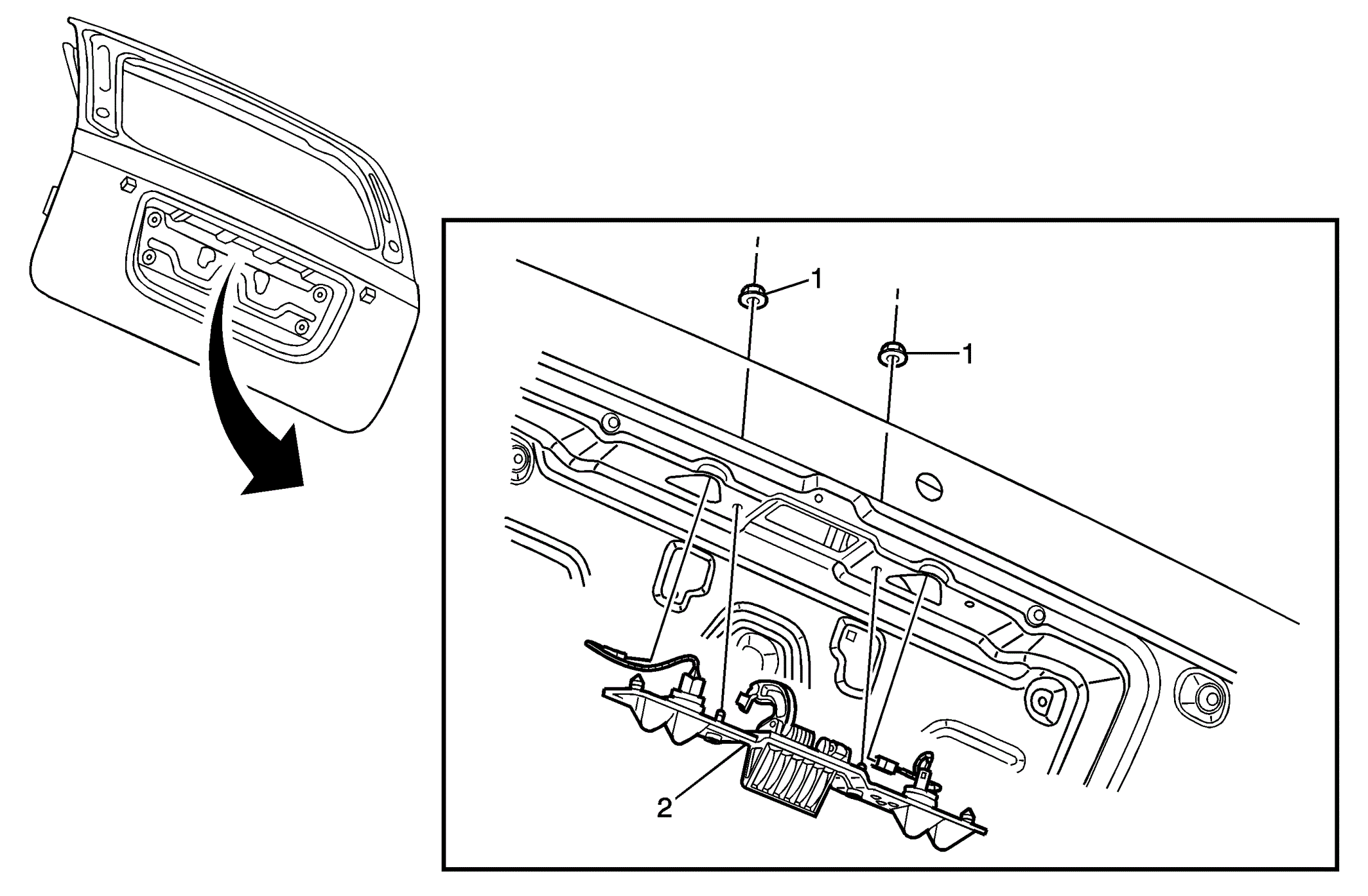

Fig 1: View Of Liftgate Outside Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the liftgate interior trim panel. Refer to Liftgate Trim Panel Replacement .
1	Liftgate Handle Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 4 N.m (35 lb in)
2	Liftgate Handle Assembly
