SIR Component Views
WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

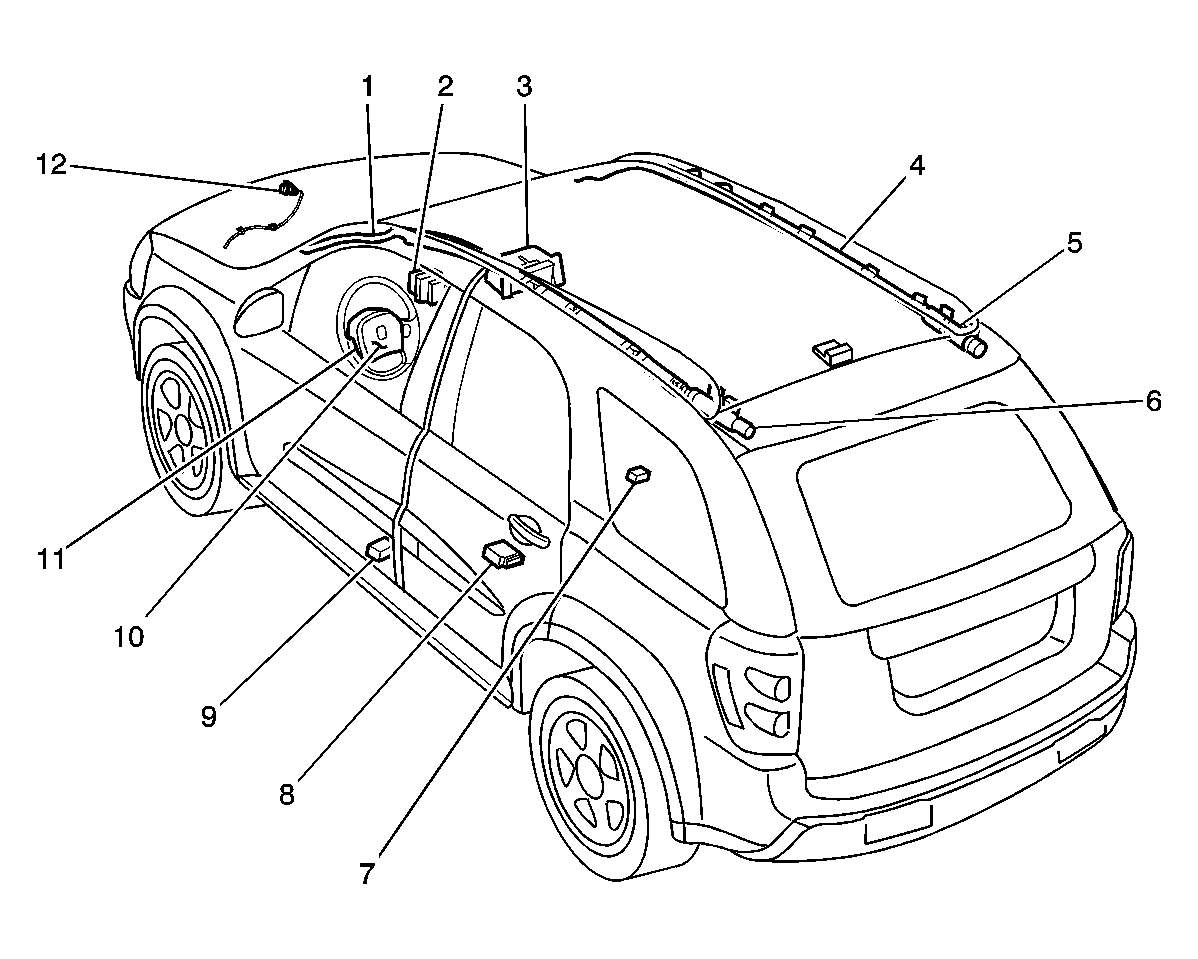

| Callout |
Component Name |
| 1 |
Inflatable Restraint Roof Rail Module - Left (ASF) |
| 2 |
Fuse Block - I/P |
| 3 |
Inflatable Restraint I/P Module |
| 4 |
Inflatable Restraint Roof Rail Module - Right (ASF) |
| 5 |
Inflatable Restraint Roof Rail Module - Right Disable Connector (ASF) |
| 6 |
Inflatable Restraint Roof Rail Module - Left Disable Connector (ASF) |
| 7 |
Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF) |
| 8 |
Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 9 |
Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF) |
| 10 |
Inflatable Restraint Steering Wheel Module Coil - Hidden Beneath Module |
| 11 |
Inflatable Restraint Steering Wheel Module |
| 12 |
Inflatable Restraint Front End Sensor |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Horn Switch Contacts |
| 2 |
Inflatable Restraint Steering Wheel Module C1 |
| 3 |
Steering Wheel Control Switch - Right (w/ UK3/K34 shown, w/K34 Only Similar) |
| 4 |
Inflatable Restraint Steering Wheel Module C2 |
| 5 |
C277 |
| 6 |
Steering Wheel Control Switch - Left (w/ UK3/K34 shown, w/K34 Only Similar) |
