Radio/Navigation System Schematics

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

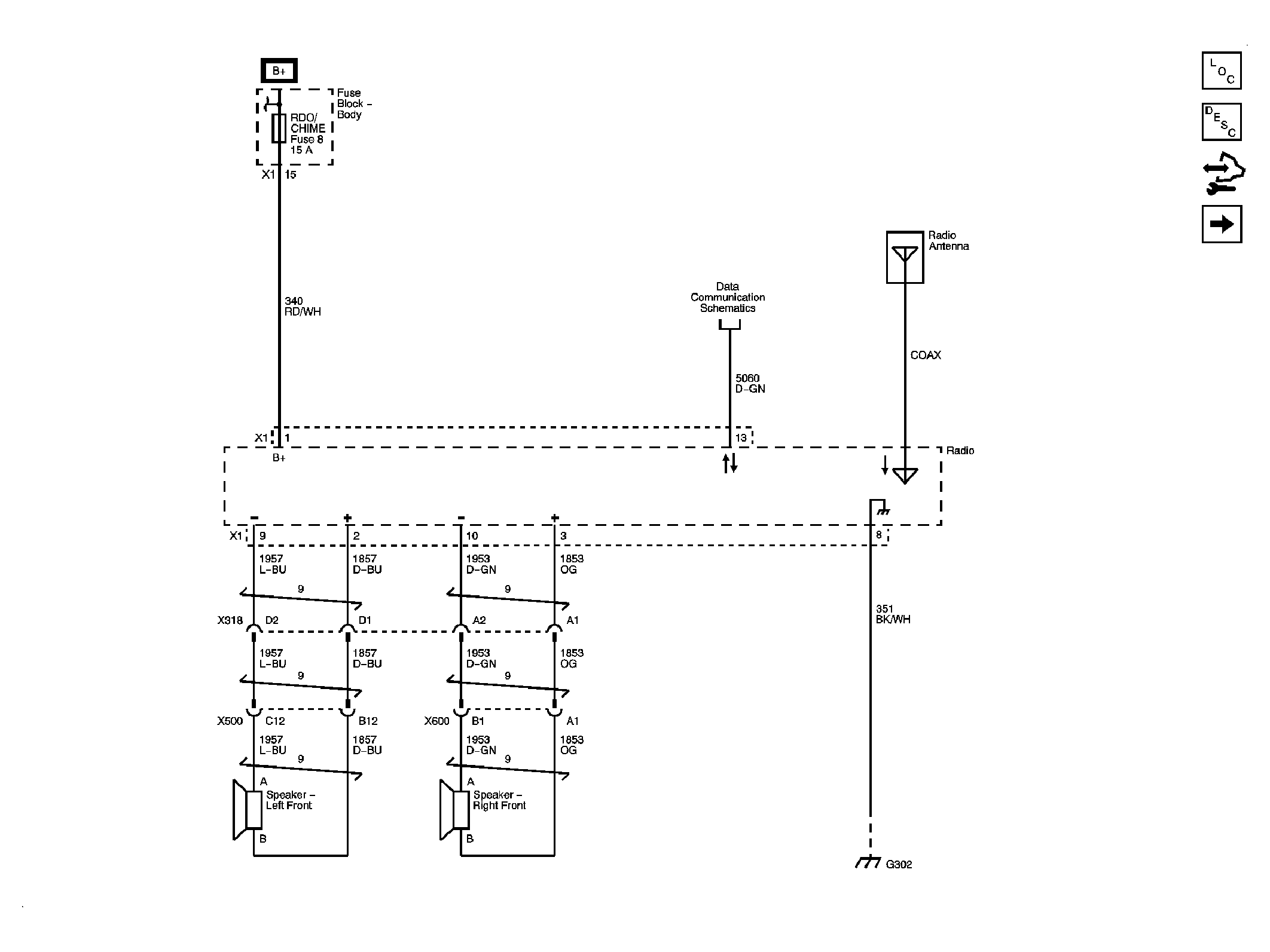

Fig 1: Power, Ground, Serial Data, Antenna and Front Speaker Outputs Schematic

Courtesy of GENERAL MOTORS CORP.

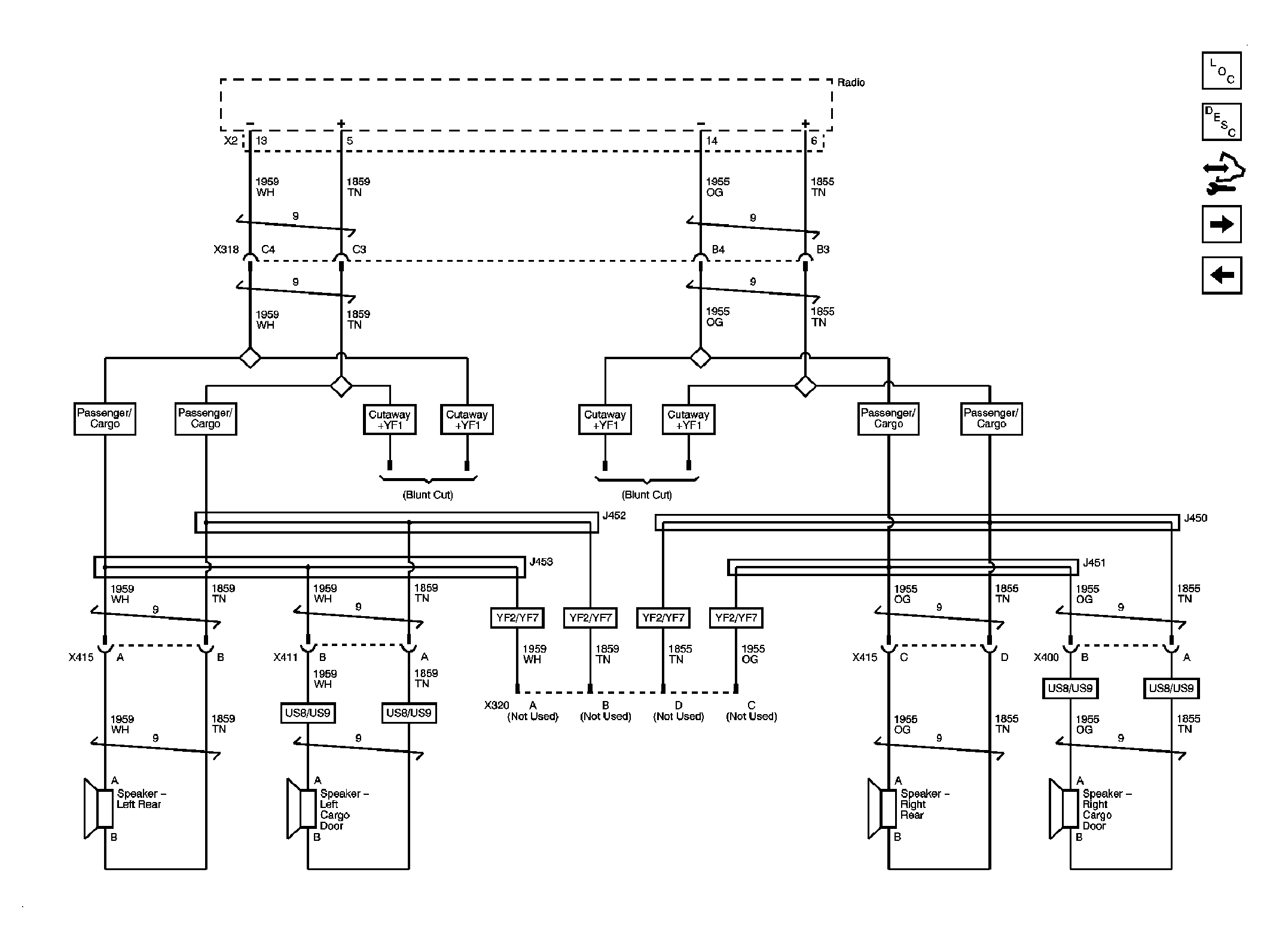

Fig 2: Rear Speaker Outputs Schematic

Courtesy of GENERAL MOTORS CORP.

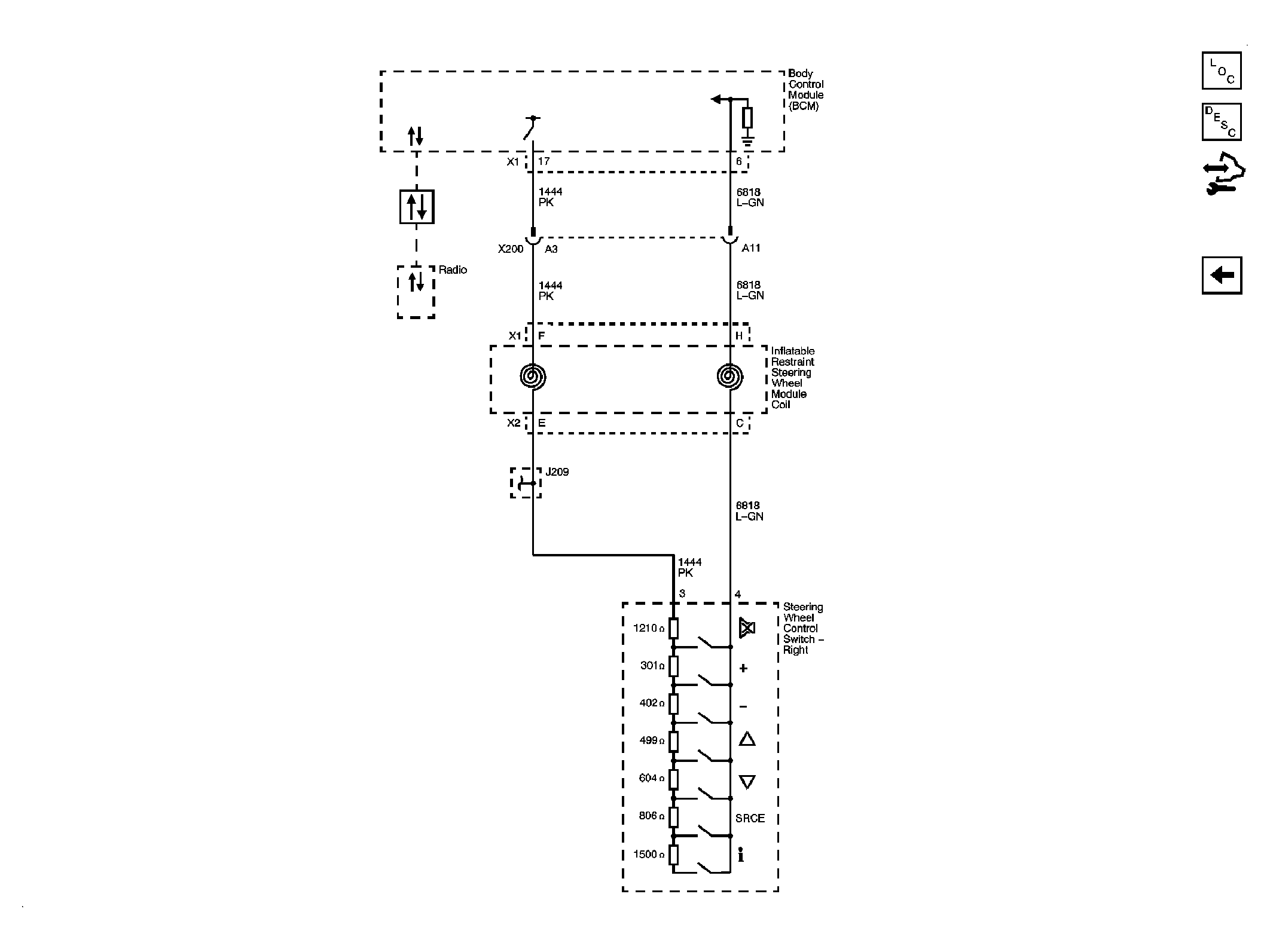

Fig 3: Steering Wheel Radio Redundant Controls Schematic

Courtesy of GENERAL MOTORS CORP.
