Installation Procedure

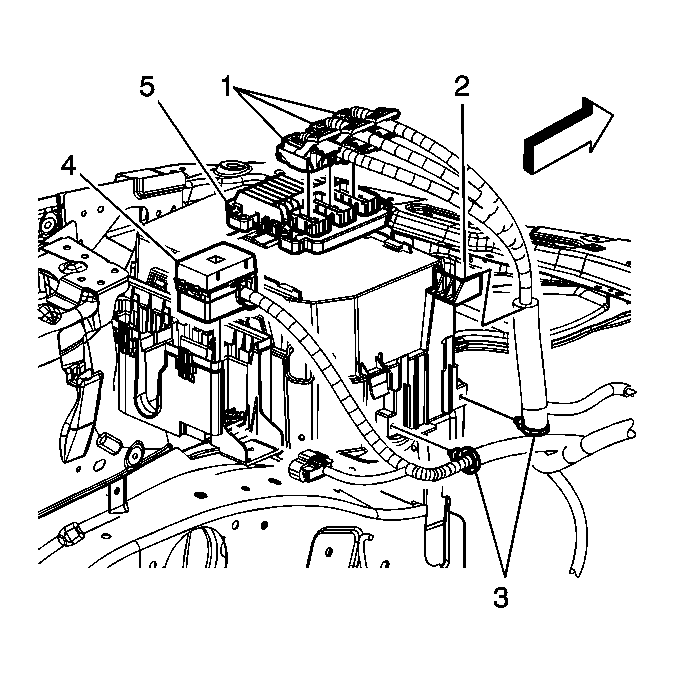

    Fig 1: Identifying Engine Wiring Harness Electrical Connectors
    GM1888715Courtesy of GENERAL MOTORS CORP.
  1. Connect the engine wiring harness electrical connectors (1) to the ECM (5).
  2. Slide the ECM into the ECM bracket until it locks into place.

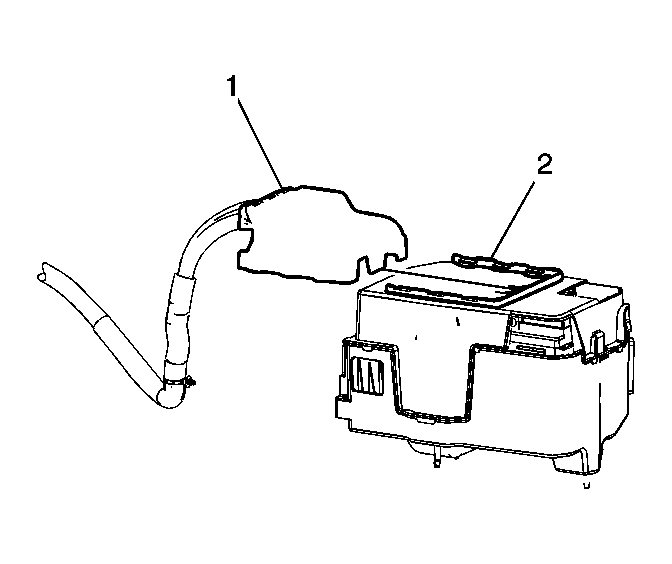

    3. Fig 2: Identifying ECM Bracket & Air Cleaner Assembly Cover
    GM1888714Courtesy of GENERAL MOTORS CORP.
  3. Install the ECM bracket (1) onto the air cleaner assembly cover (2) until it locks in place.
  4. If replacing the ECM, program the ECM. Refer to Control Module References .
