Removal Procedure

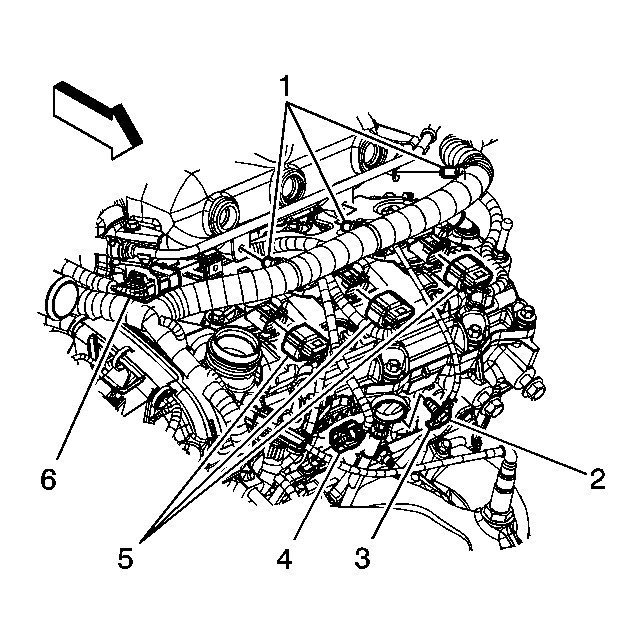

    Fig 1: Identifying Engine Wiring Harness Electrical Connectors
    GM1836029Courtesy of GENERAL MOTORS CORP.
  1. Partially drain the cooling system. Refer to Cooling System Draining and Filling (LY7 GE 47716 Fill) or Cooling System Draining and Filling (LY7 Static Fill) .
  2. Disconnect the engine wiring harness electrical connector (4) from the engine coolant temperature (ECT) sensor.
    3. Fig 2: View Of ECT Sensor
    GM1836047Courtesy of GENERAL MOTORS CORP.
  3. Remove the ECT sensor.
