Installation Procedure

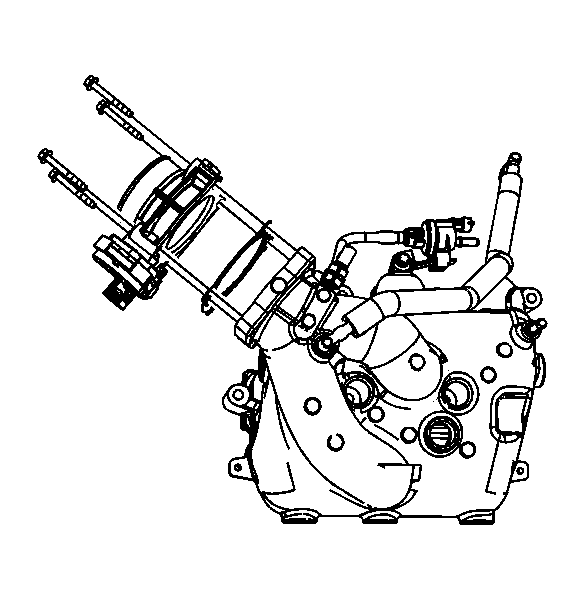

    Fig 1: Identifying Throttle Body Gasket
    GM1836025Courtesy of GENERAL MOTORS CORP.
  1. Position a NEW throttle body gasket to the upper intake manifold.
  2. Position the throttle body to the upper intake manifold.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the throttle body bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

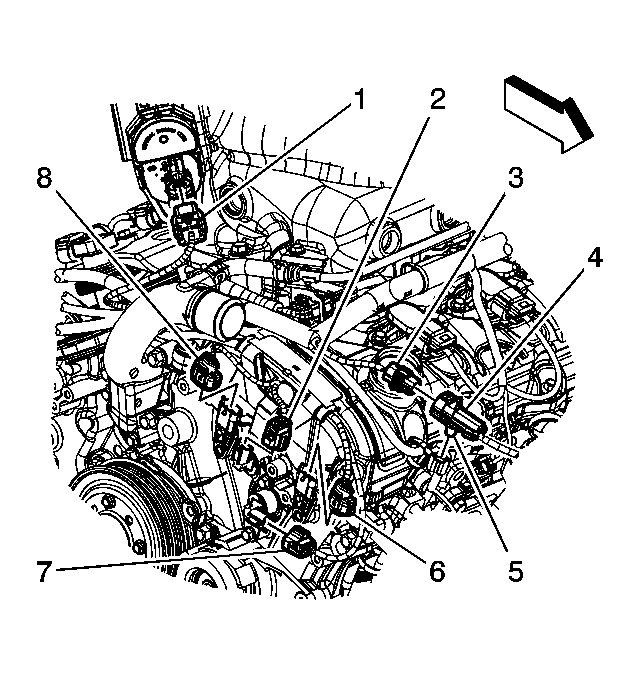

    4. Fig 2: Identifying Engine Wiring Harness Electrical Connector, HO2S Electrical Connector & Retainer
    GM1836024Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (1) to the TAC module.
  5. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
