Steering Control Module




Component Connector End Views

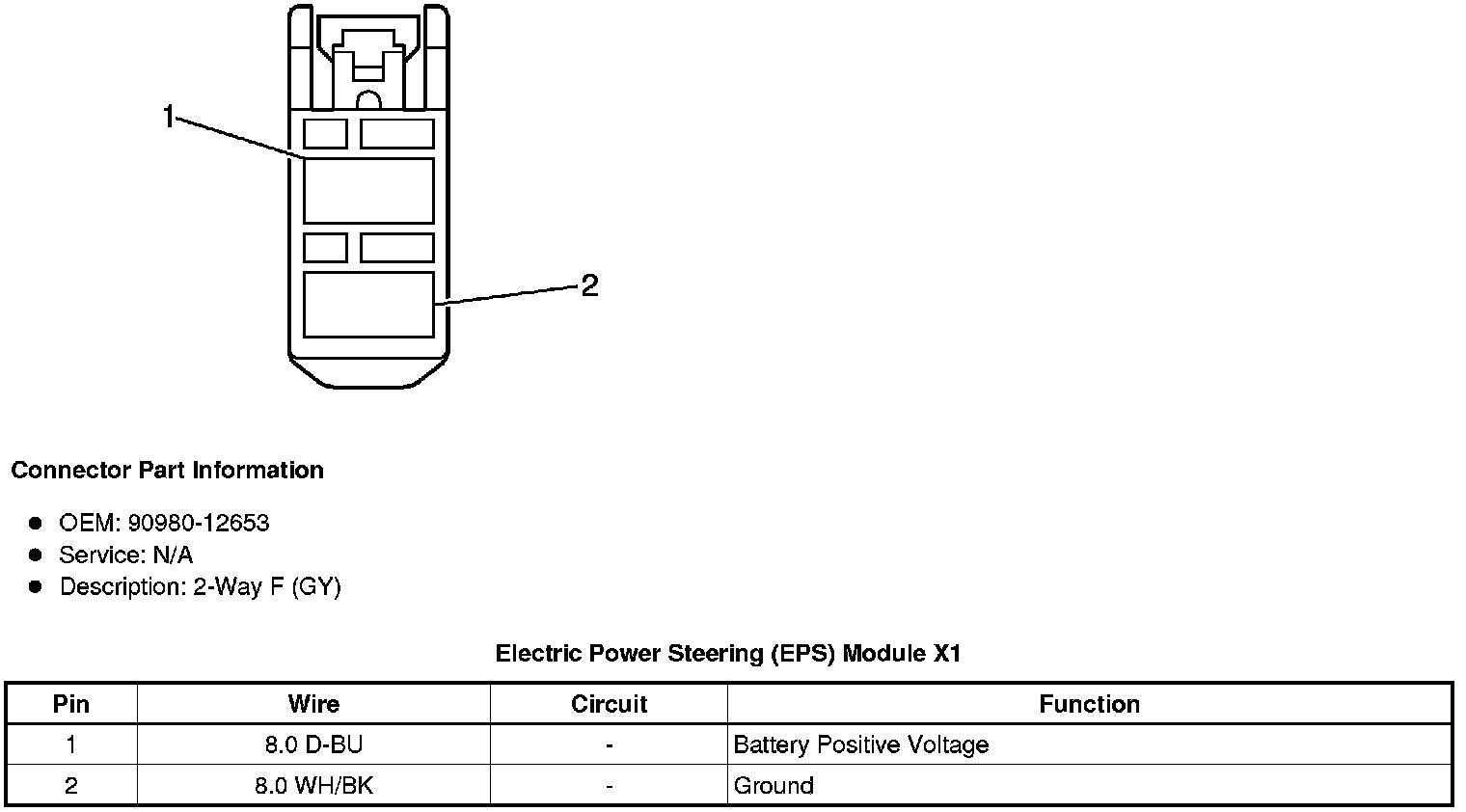

Electric Power Steering (EPS) Module X1

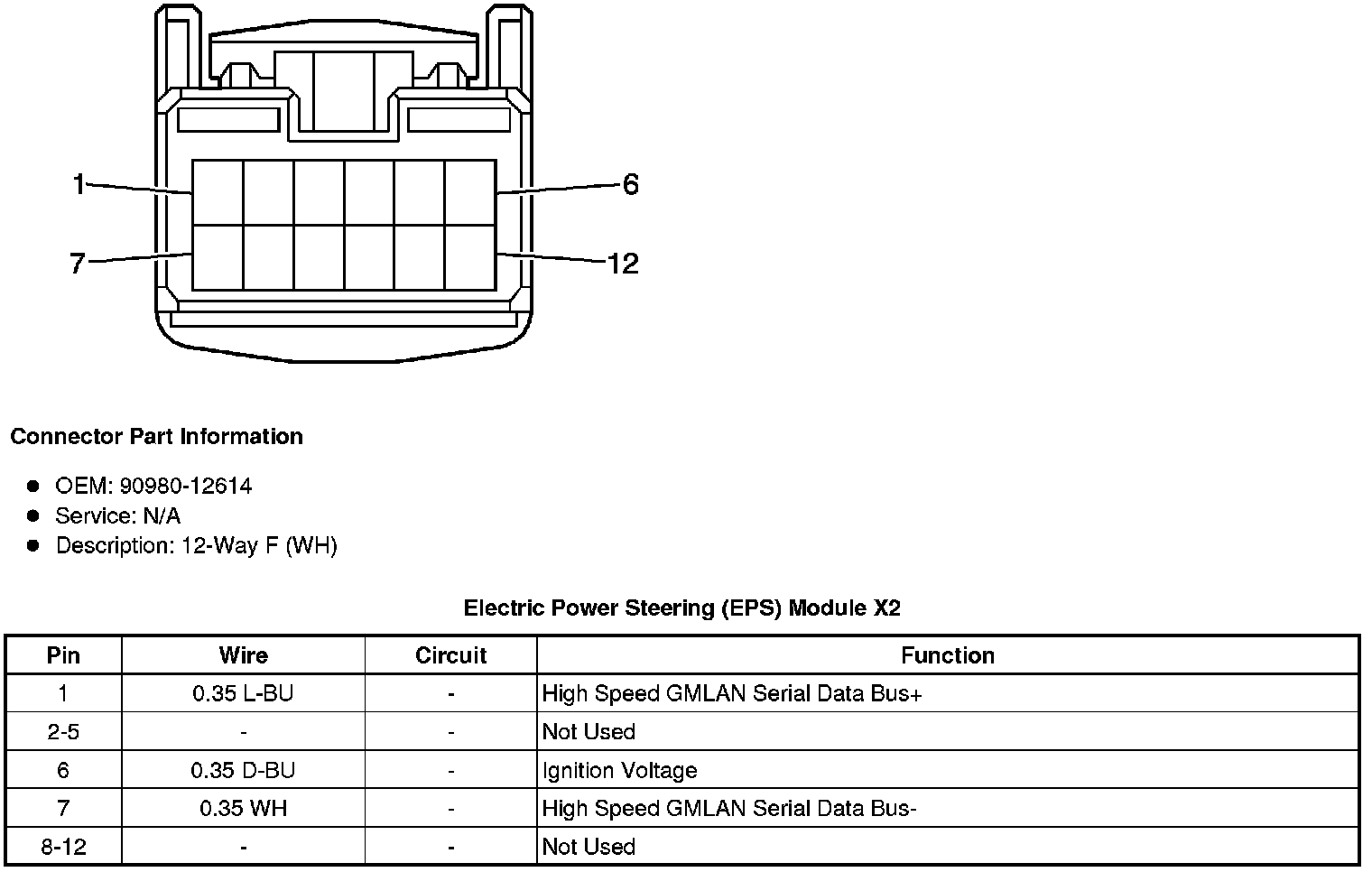

Electric Power Steering (EPS) Module X2

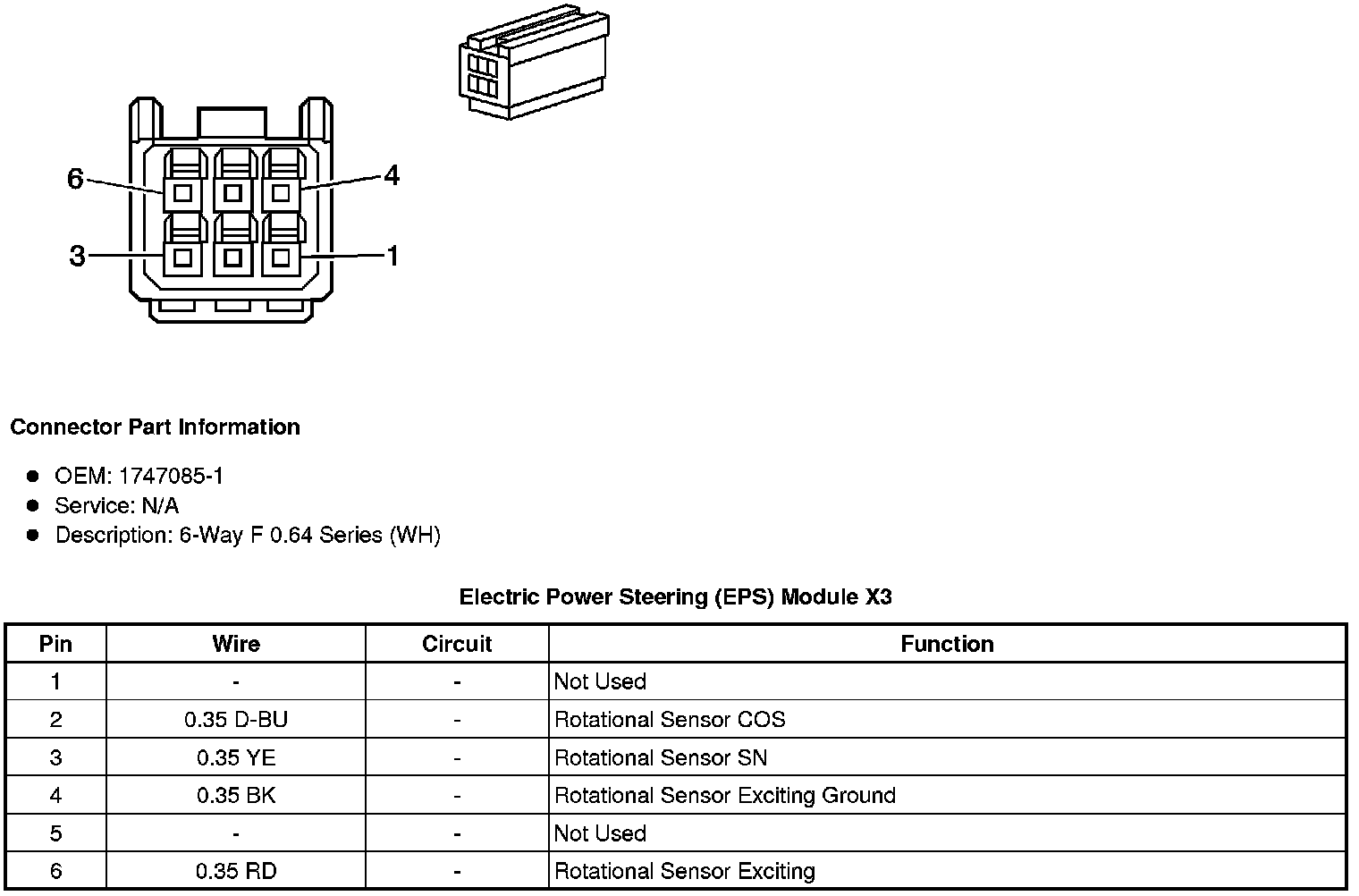

Electric Power Steering (EPS) Module X3

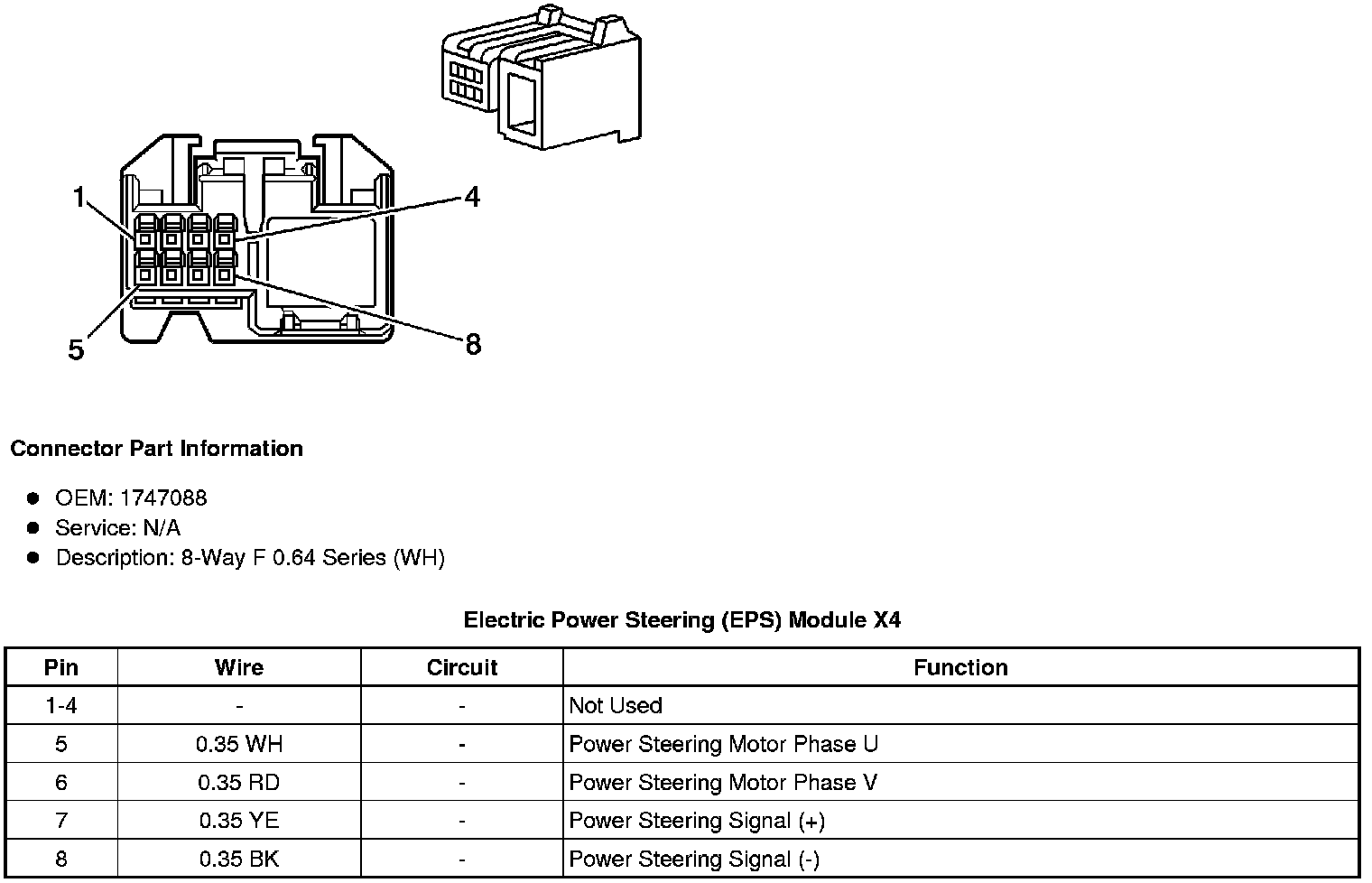

Electric Power Steering (EPS) Module X4

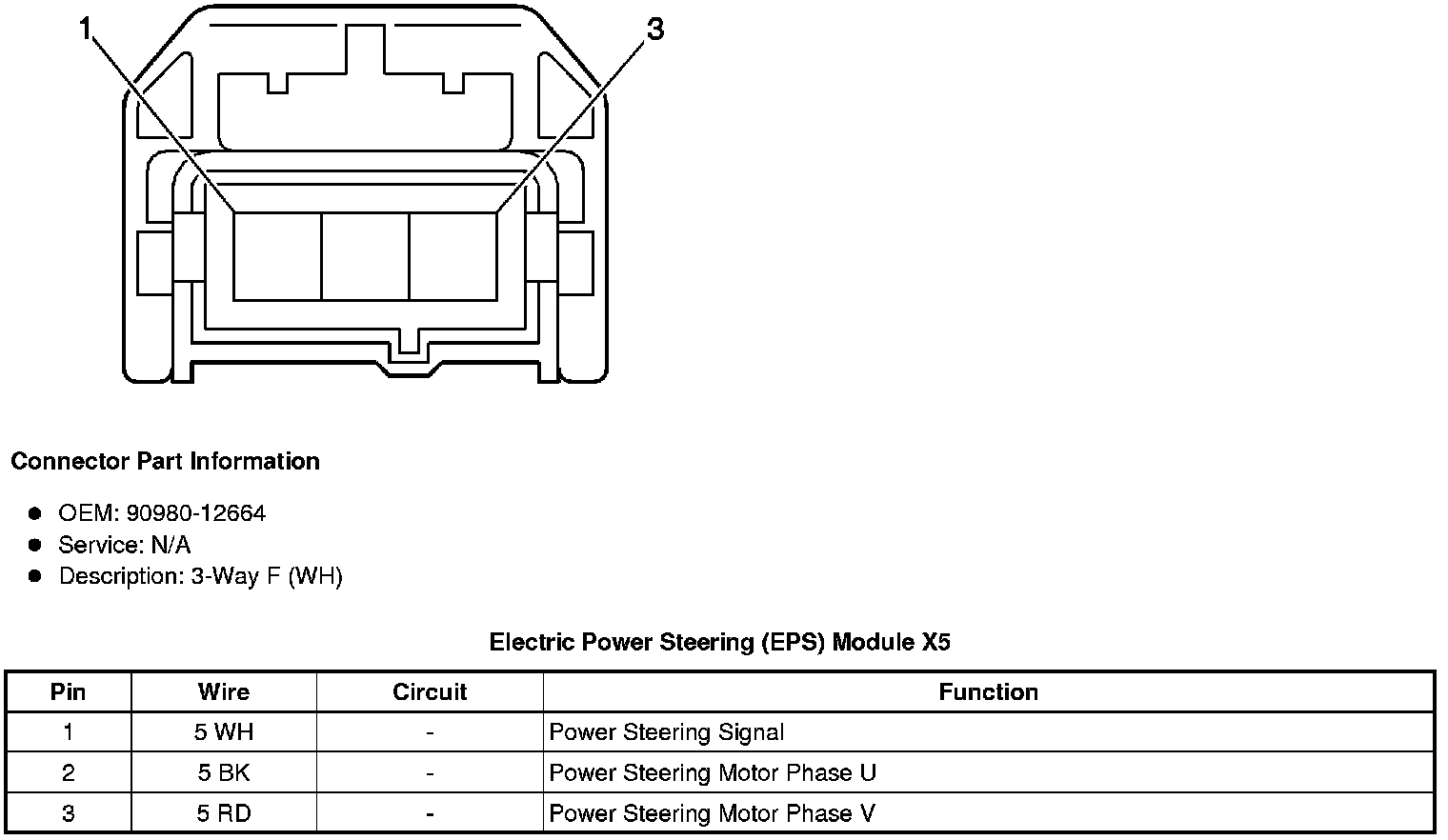

Electric Power Steering (EPS) Module X5
