Frame: Service and Repair

Frame Brace Replacement

Removal Procedure




1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

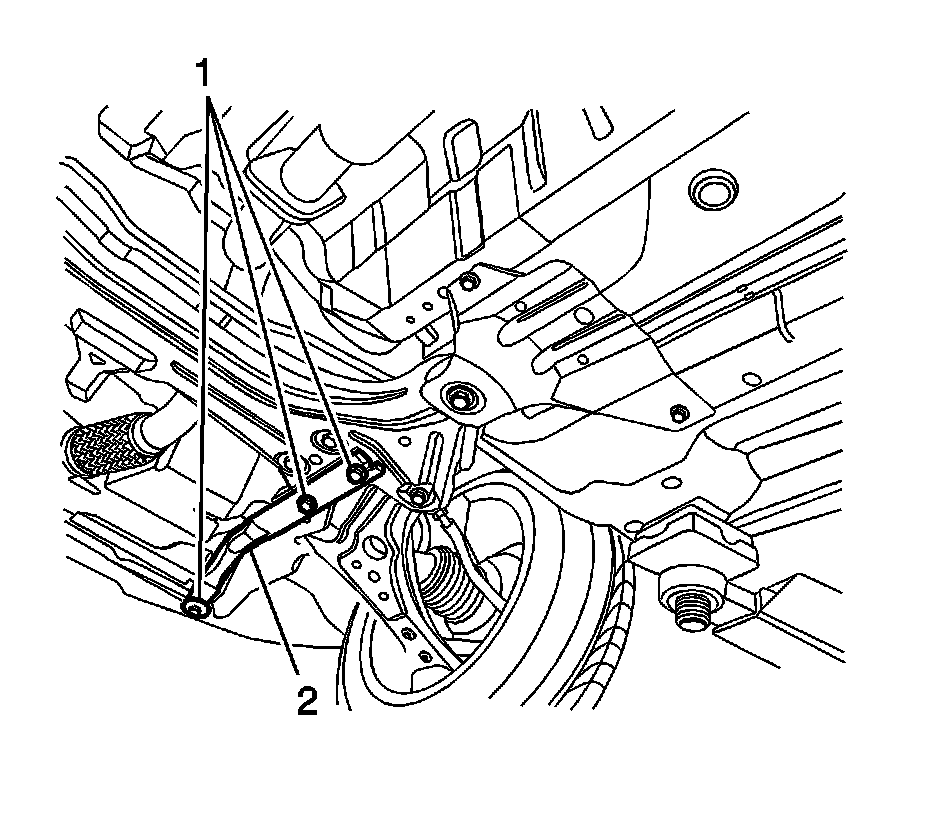

2. Remove the bolts (1) from the frame brace (2).
3. Remove the frame brace (2) from the vehicle.

Installation Procedure




1. Install the frame brace (2) from the vehicle.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the bolts (1) to the frame brace (2) and tighten to 100 Nm (74 lb ft).
3. Lower the vehicle.
