Throttle Position Sensor




Component Connector End Views

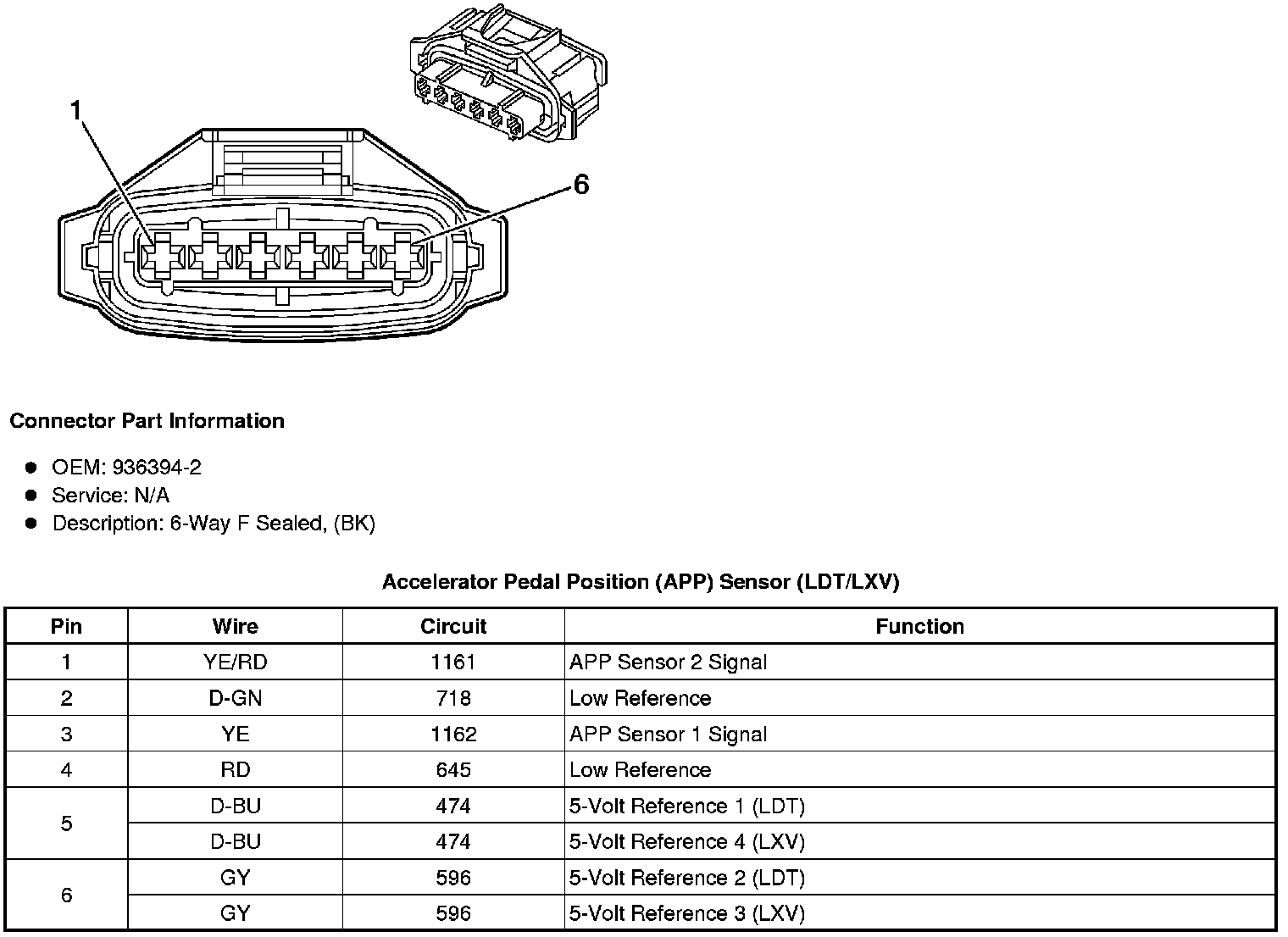

Accelerator Pedal Position (APP) Sensor (LDT/LXV)





Throttle Position (TP) Sensor (without LDT/LXV)
