Transmission Speed Sensor, A/T

Disassembled Views

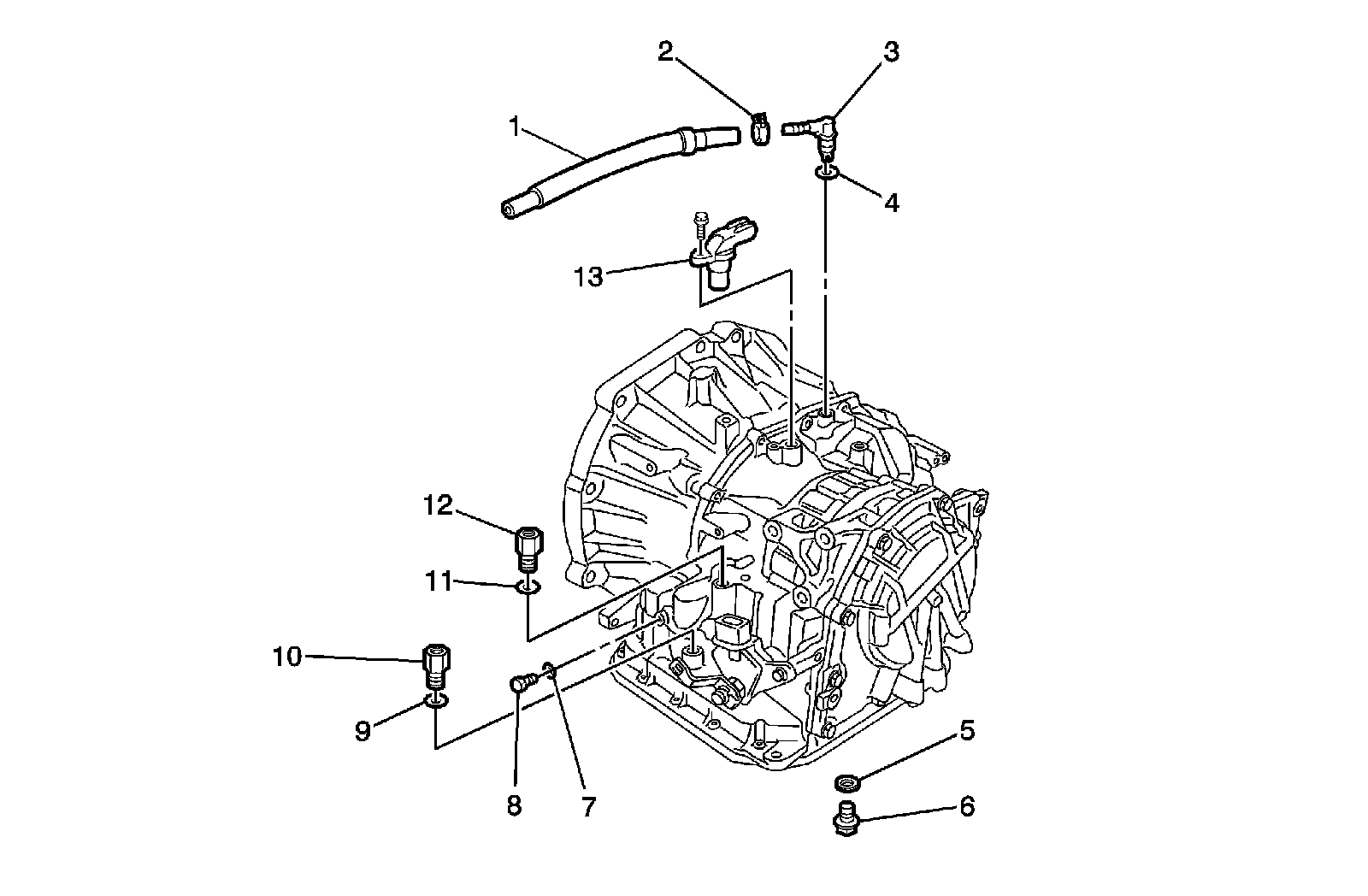

Case and Associated Parts (1 of 2)




1 - Breather Hose
2 - Clip
3 - Breather Plug
4 - O-Ring
5 - Washer
6 - Drain Plug
7 - O-Ring
8 - Bolt Plug
9 - O-Ring
10 - Oil Cooler Inlet Union
11 - O-Ring
12 - Oil Cooler Outlet Union
13 - Input Shaft Speed (ISS) Sensor
