Installation Procedure

    Fig 1: CMP Sensor & Bolt
    GM1578483Courtesy of GENERAL MOTORS CORP.
    NOTE: Inspect the CMP sensor for damage, replace as necessary.
  1. Lubricate the CMP sensor O-ring seal with clean engine oil.
  2. Install the CMP sensor. Intake CMP shown, exhaust CMP similar.
    CAUTION: Refer to Fastener Caution .
  3. Install the CMP sensor bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

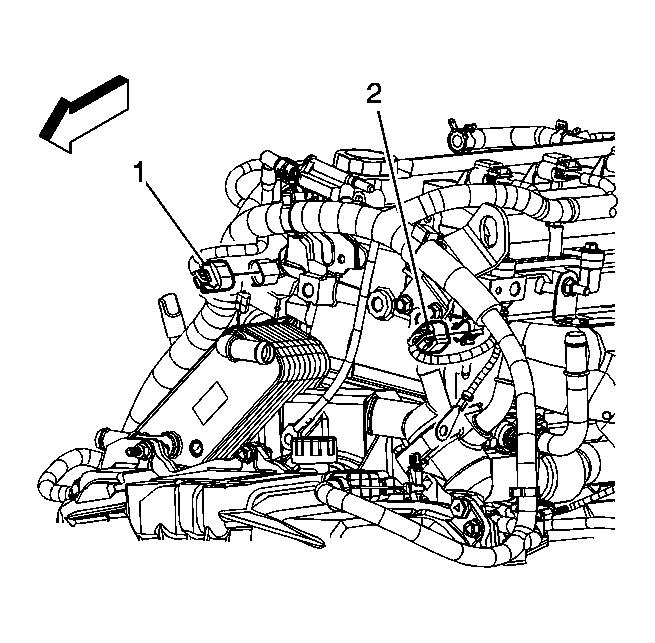

    4. Fig 2: Intake & Exhaust CMP Sensor Electrical Connectors
    GM1578481Courtesy of GENERAL MOTORS CORP.
  4. Connect the exhaust CMP sensor electrical connector (2).
