Body Control System Schematics

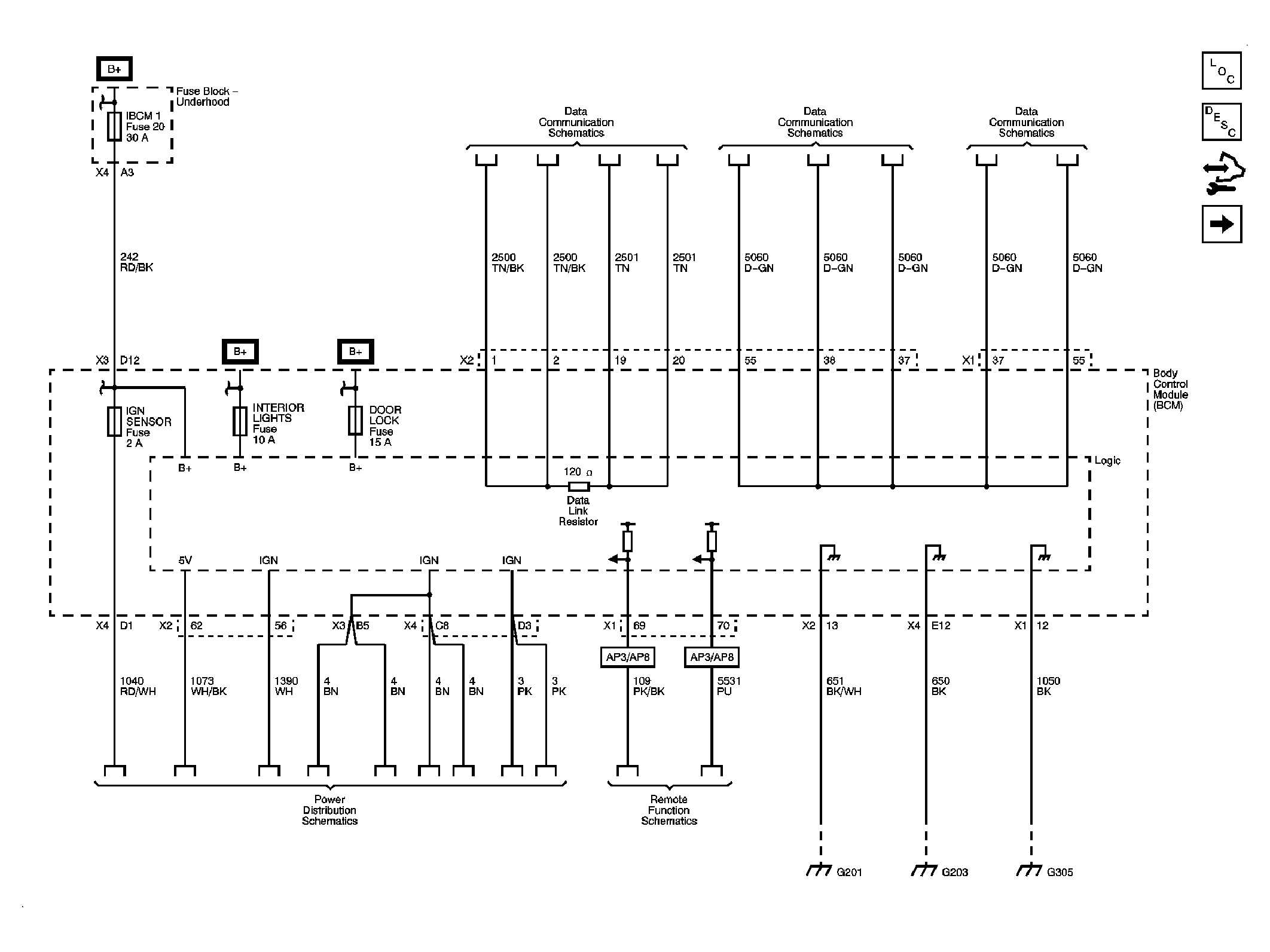

Fig 1: Power, Ground & DLC Circuit Schematic
GM2254235Courtesy of GENERAL MOTORS CORP.
Fig 2: Accessory, HVAC Blower High & Run Relays Circuit Schematic
GM2254236Courtesy of GENERAL MOTORS CORP.

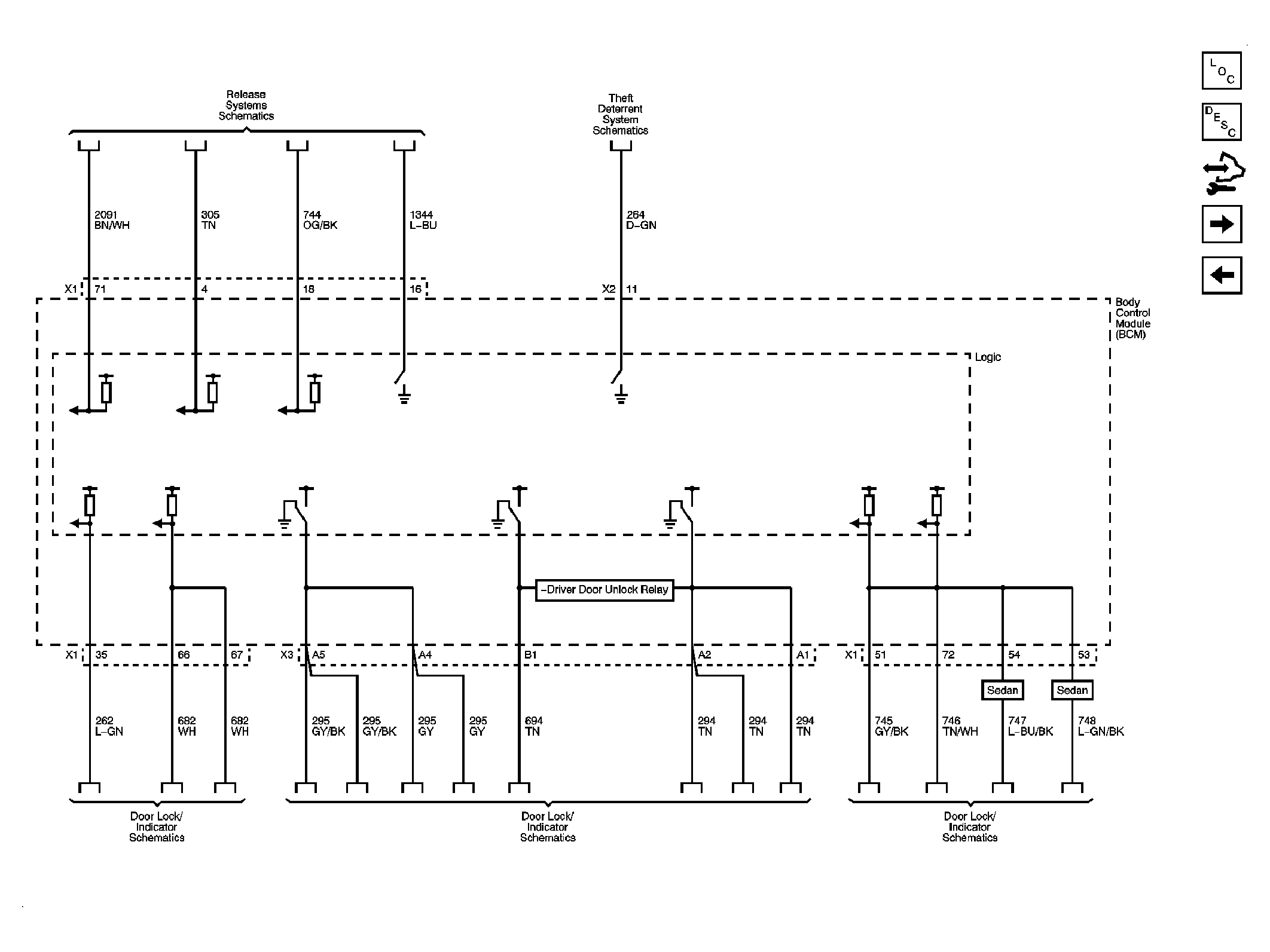

Fig 3: Controlled/Monitored Subsystem References Circuit Schematic (1 Of 3)
GM2254237Courtesy of GENERAL MOTORS CORP.

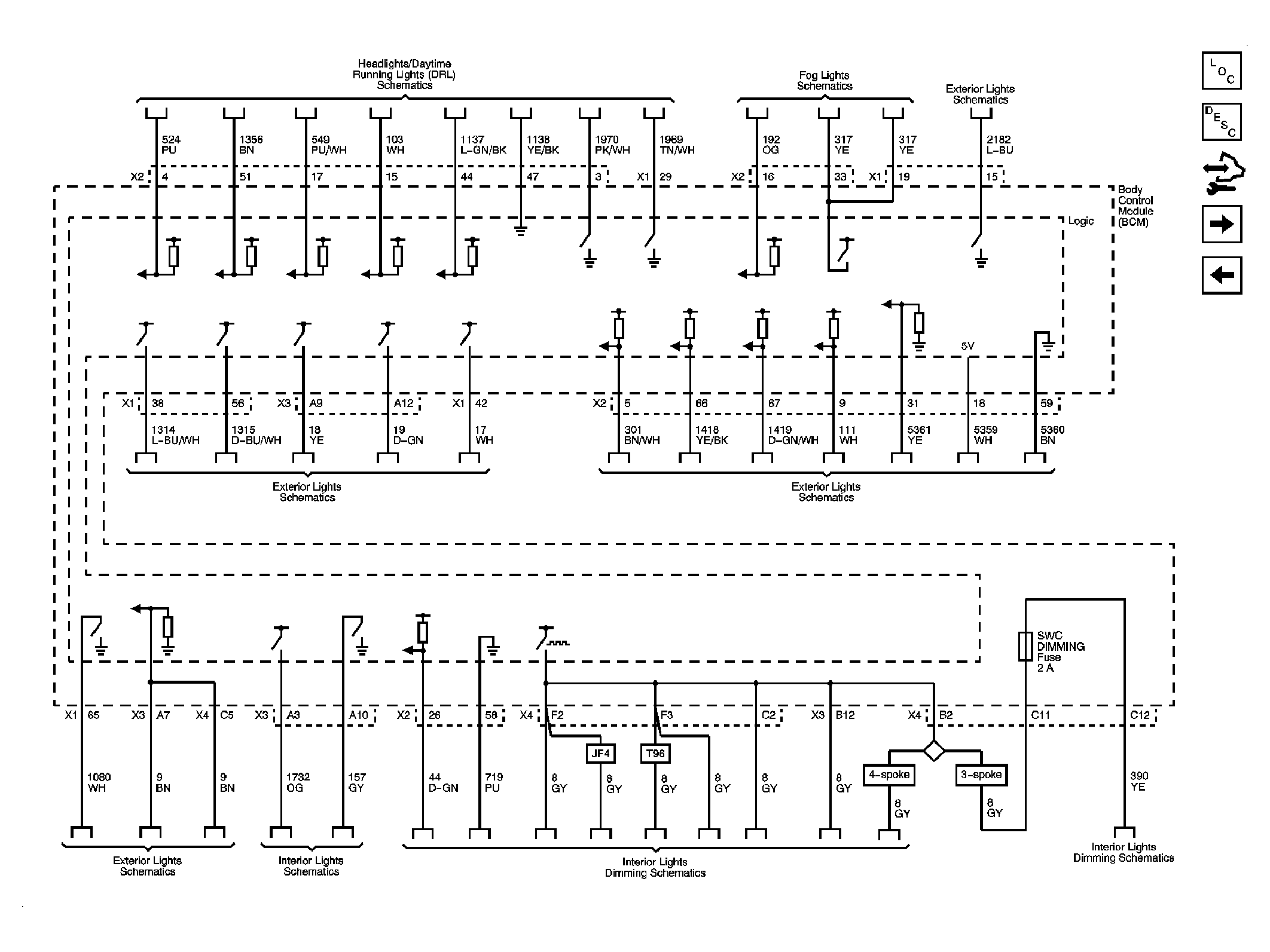

Fig 4: Controlled/Monitored Subsystem References Circuit Schematic (2 Of 3)
GM2254239Courtesy of GENERAL MOTORS CORP.

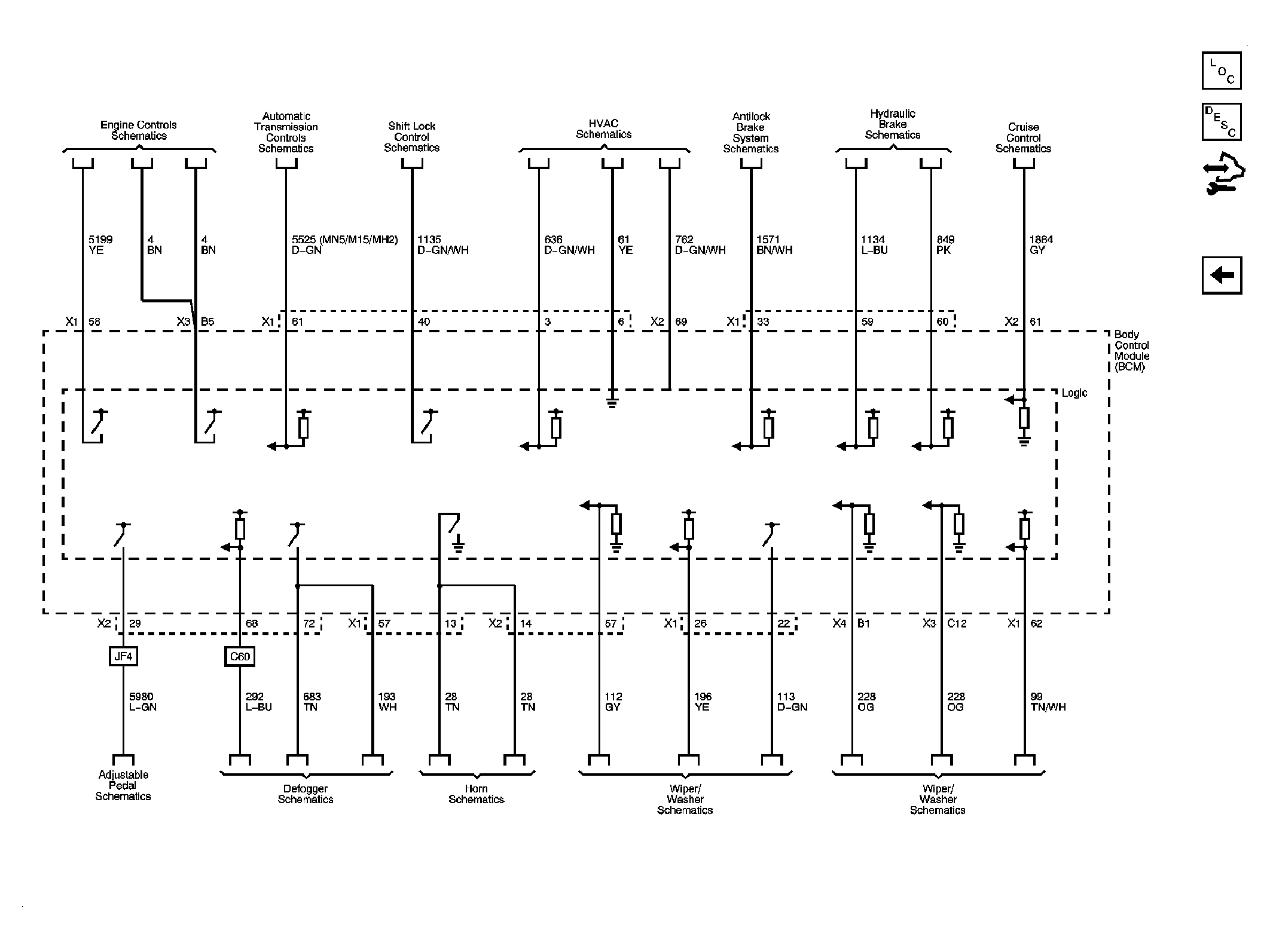

Fig 5: Controlled/Monitored Subsystem References Circuit Schematic (3 Of 3)
GM2254240Courtesy of GENERAL MOTORS CORP.
