Data Communication Schematics

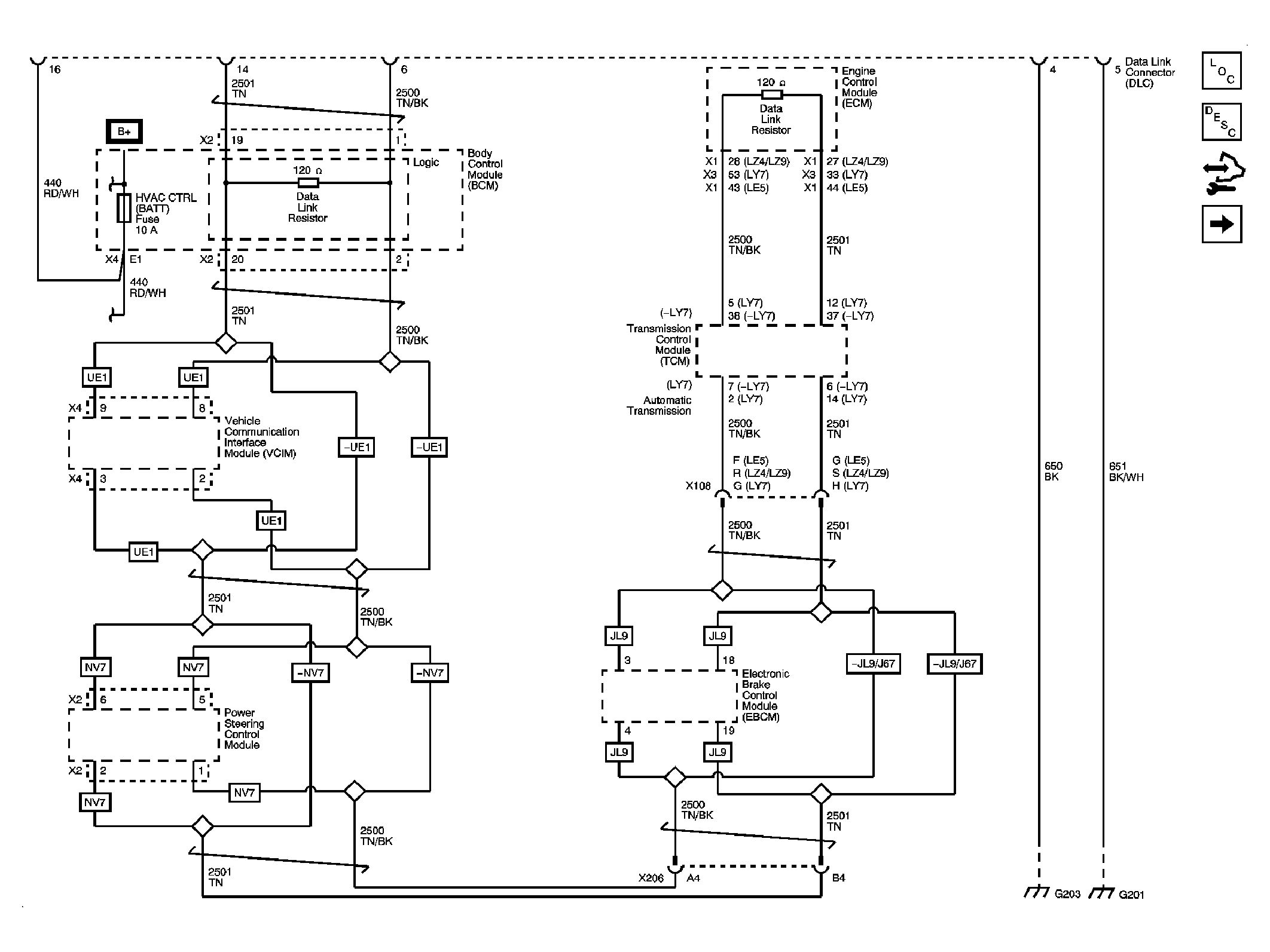

Fig 1: Power, Ground, High Speed GMLAN Serial Data Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Low Speed GMLAN Serial Data Circuit Schematic (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Low Speed GMLAN Serial Data Circuit Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.
