Communication Interface Module Bracket Replacement




Communication Interface Module Bracket Replacement

Removal Procedure

1. Remove the right closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side Instrument Panel Insulator Panel Replacement - Right Side.
2. Remove the communication interface module. Refer to Communication Interface Module Replacement Communication Interface Module Replacement.

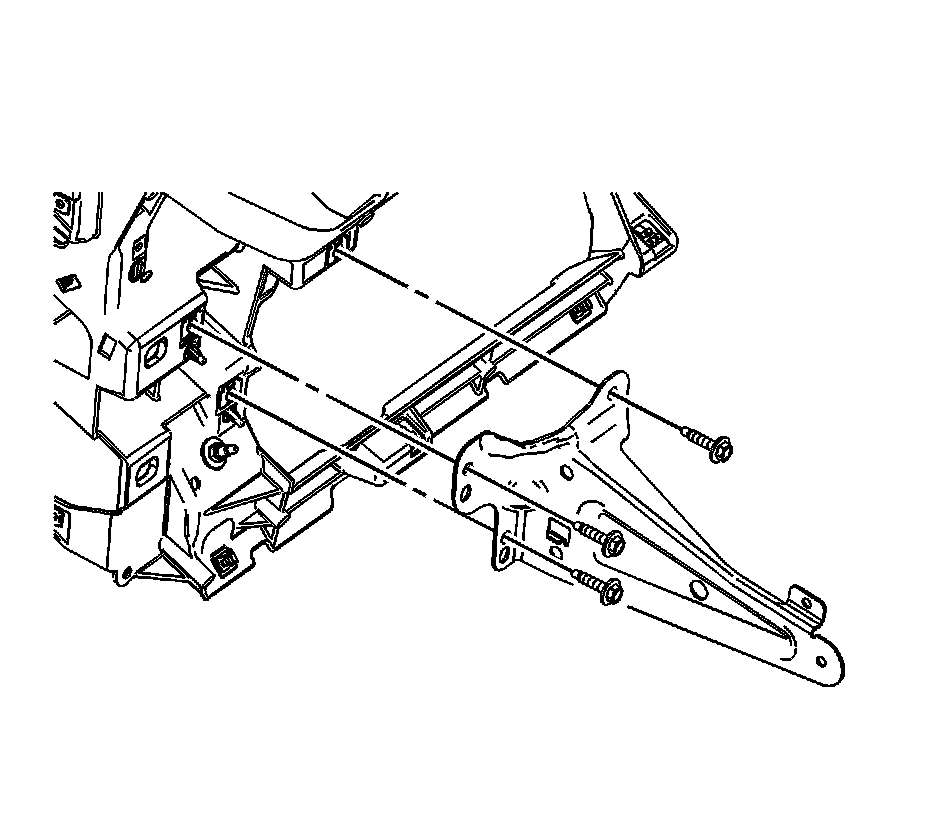

3. Remove the OnStar bracket bolts.




4. Remove the OnStar module bracket.

Installation Procedure




1. Install the OnStar module bracket.

Caution: Refer to Fastener Caution Fastener Caution.

2. Tighten the OnStar bracket bolts.

Tighten the bolts to 10 Nm (89 lb in).

3. Install the communication interface module. Refer to Communication Interface Module Replacement Communication Interface Module Replacement.
4. Install the right closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side Instrument Panel Insulator Panel Replacement - Right Side.
