Engine - Coolant Temperature Sensor/Switch




Component Connector End Views

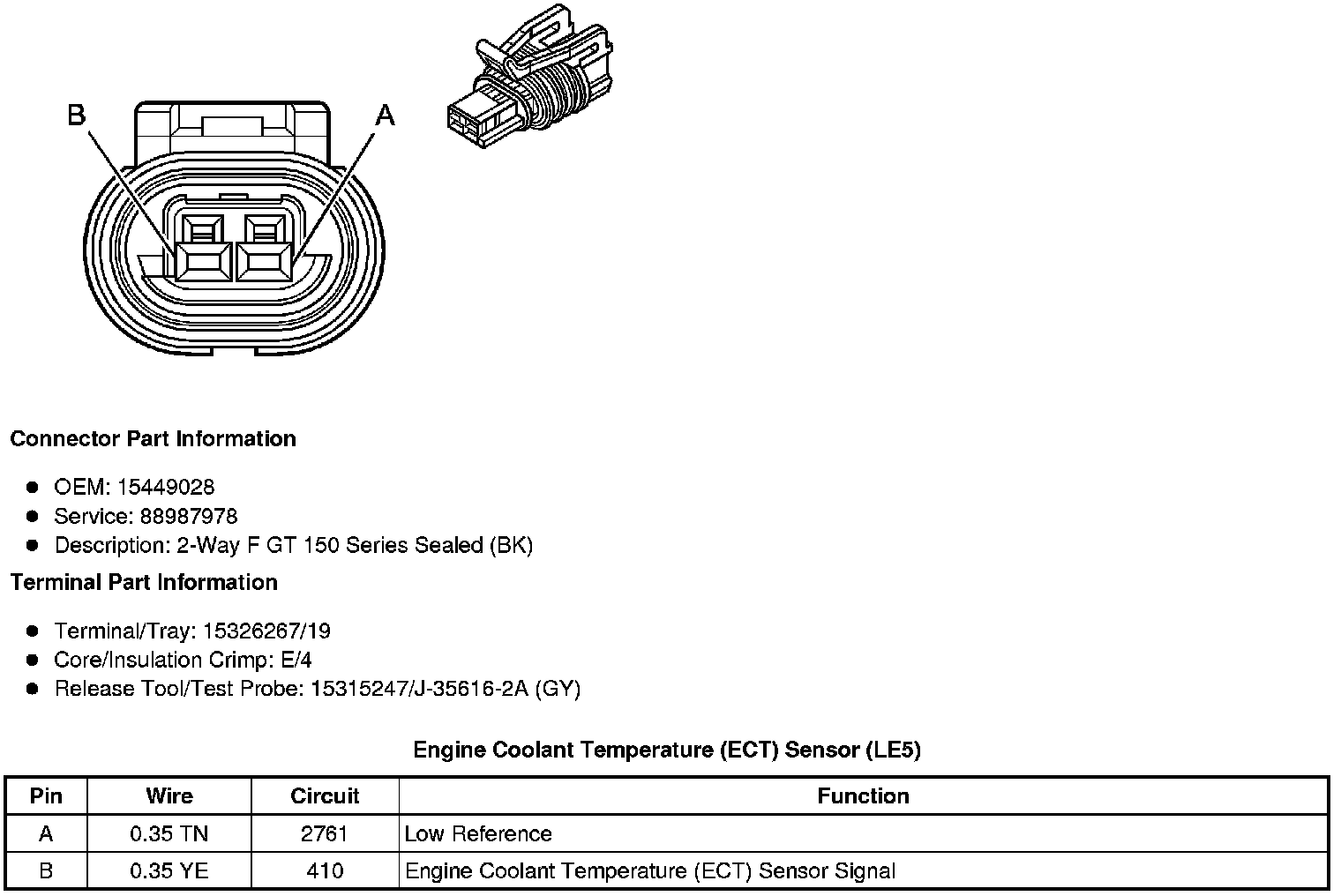

Engine Coolant Temperature (ECT) Sensor (LE5 or LE9)
