Seat Temperature Control Module
>>
Heated Seat Control Module - Driver X1 (KA1)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

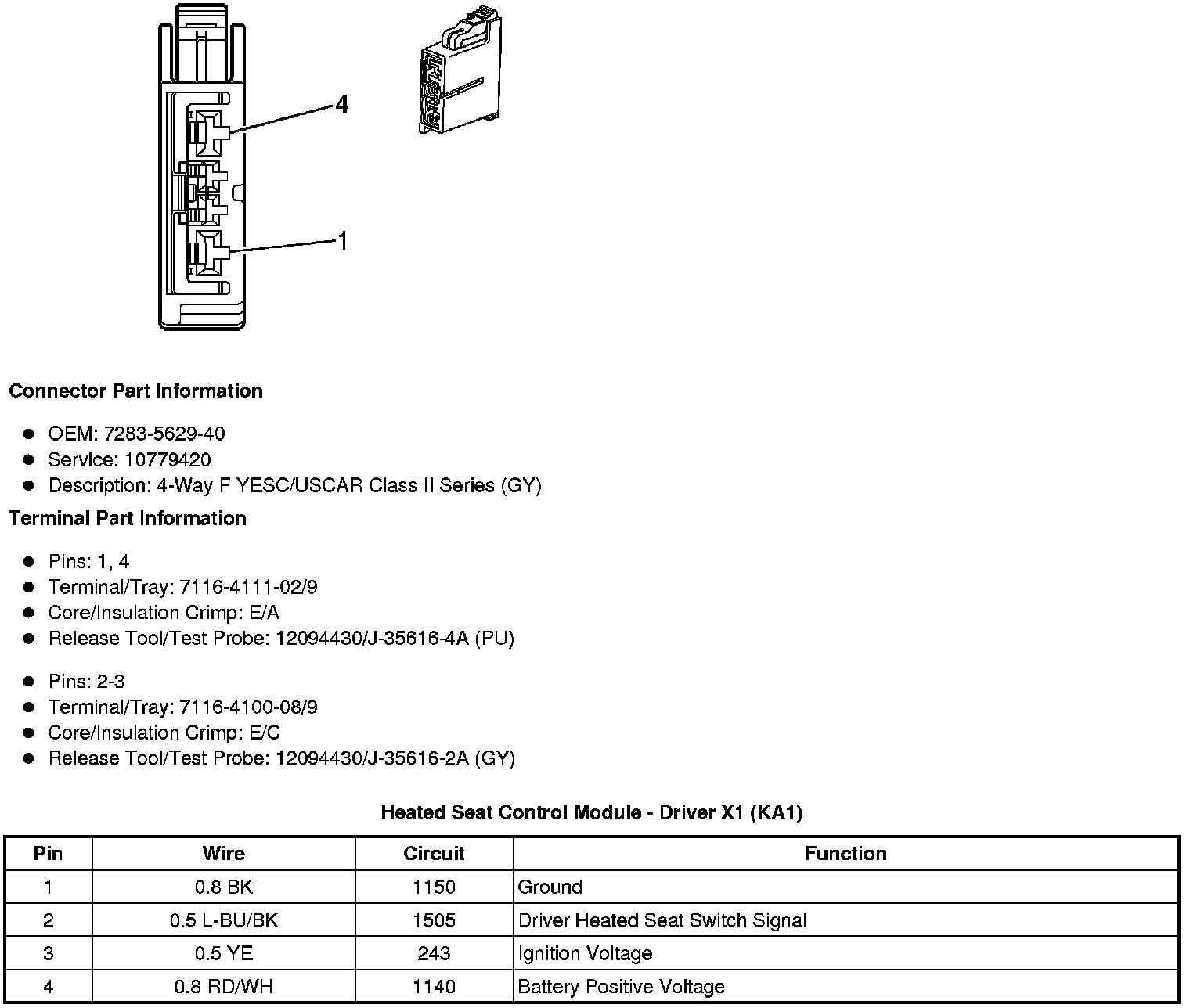

Heated Seat Control Module - Driver X1 (KA1)
Component Connector End Views
Heated Seat Control Module - Driver X1 (KA1)
