Electronic Power Steering Control Module X1 (NV7)

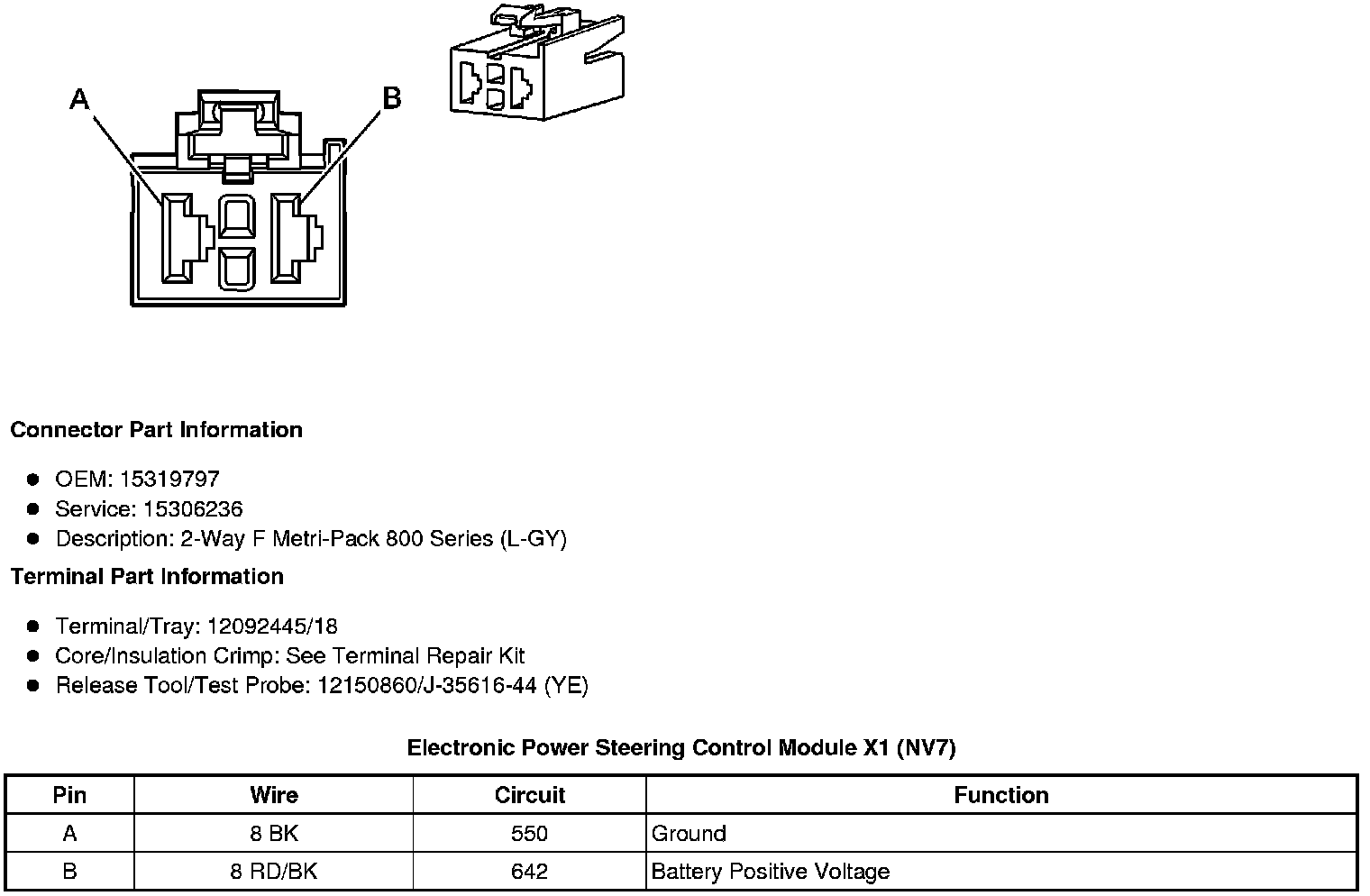

Component Connector End Views
Electronic Power Steering Control Module X1 (NV7)
