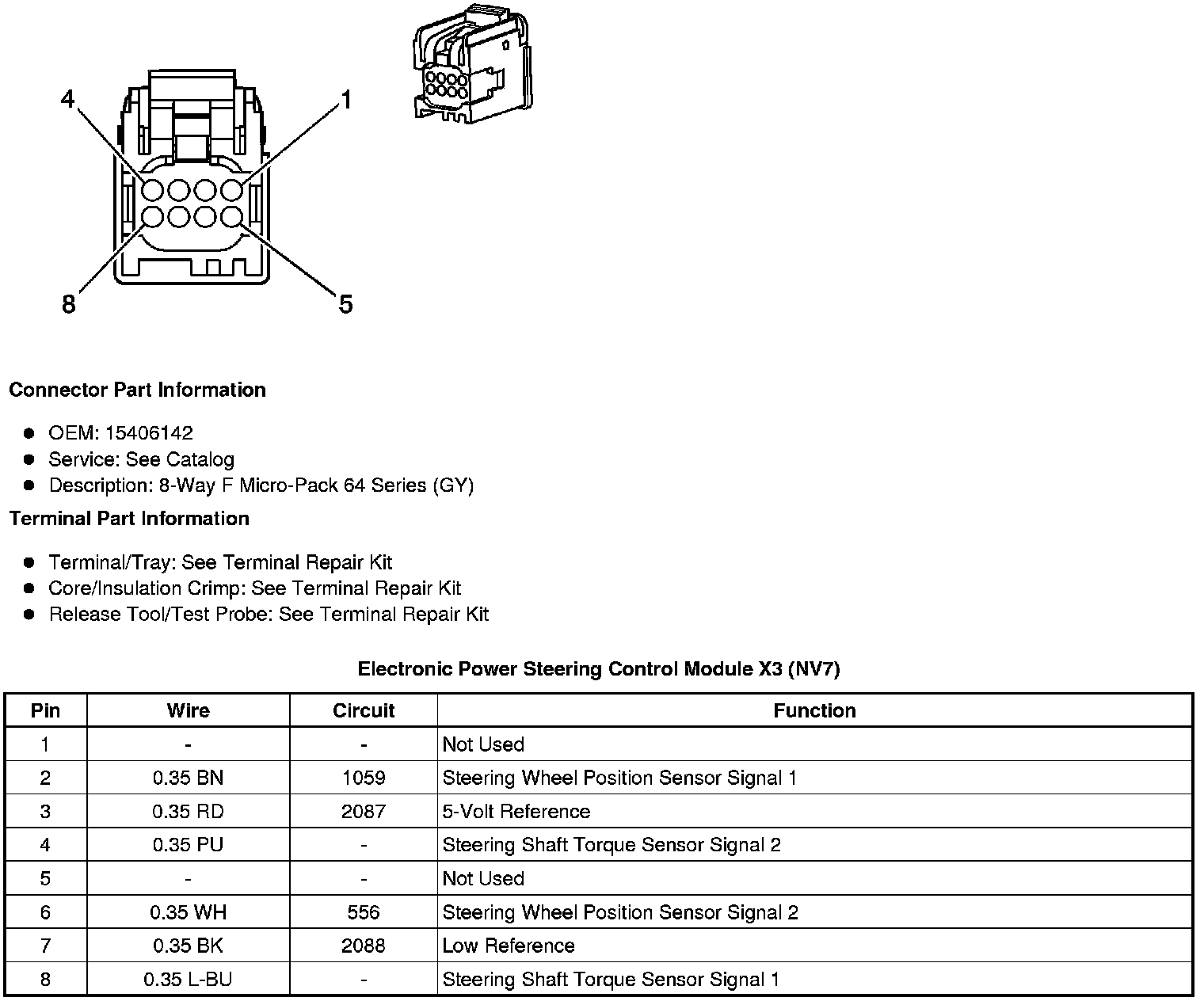

Electronic Power Steering Control Module X3 (NV7)




Component Connector End Views

Electronic Power Steering Control Module X3 (NV7)
