Front of Vehicle Components

Front of Vehicle/Engine Compartment Component Views

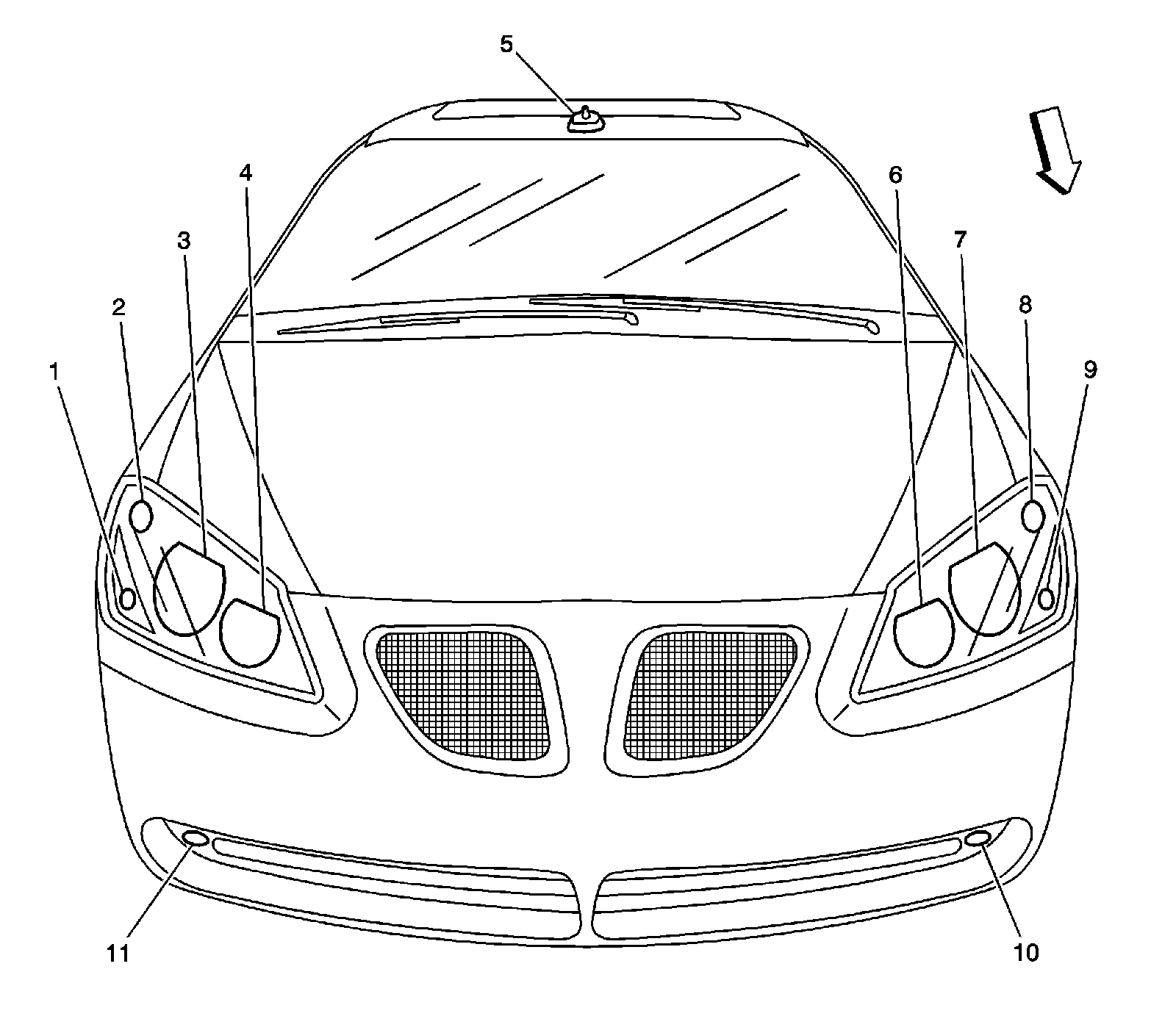

Front of Vehicle Components




1 - Side Marker Lamp - Right Front
2 - Park/Turn Signal Lamp - Right
3 - Headlamp - Right Low Beam
4 - Headlamp - Right High Beam
5 - Cellular, Navigation and Digital Radio Antenna (UE1/U2K)
6 - Headlamp - Left High Beam
7 - Headlamp -Left Low Beam
8 - Park/Turn Signal Lamp - Left
9 - Side Marker Lamp - Left Front
10 - Fog Lamp - Left Front (T96)
11 - Fog Lamp - Right Front (T96)
