Harness Locations

Harness Routing Views

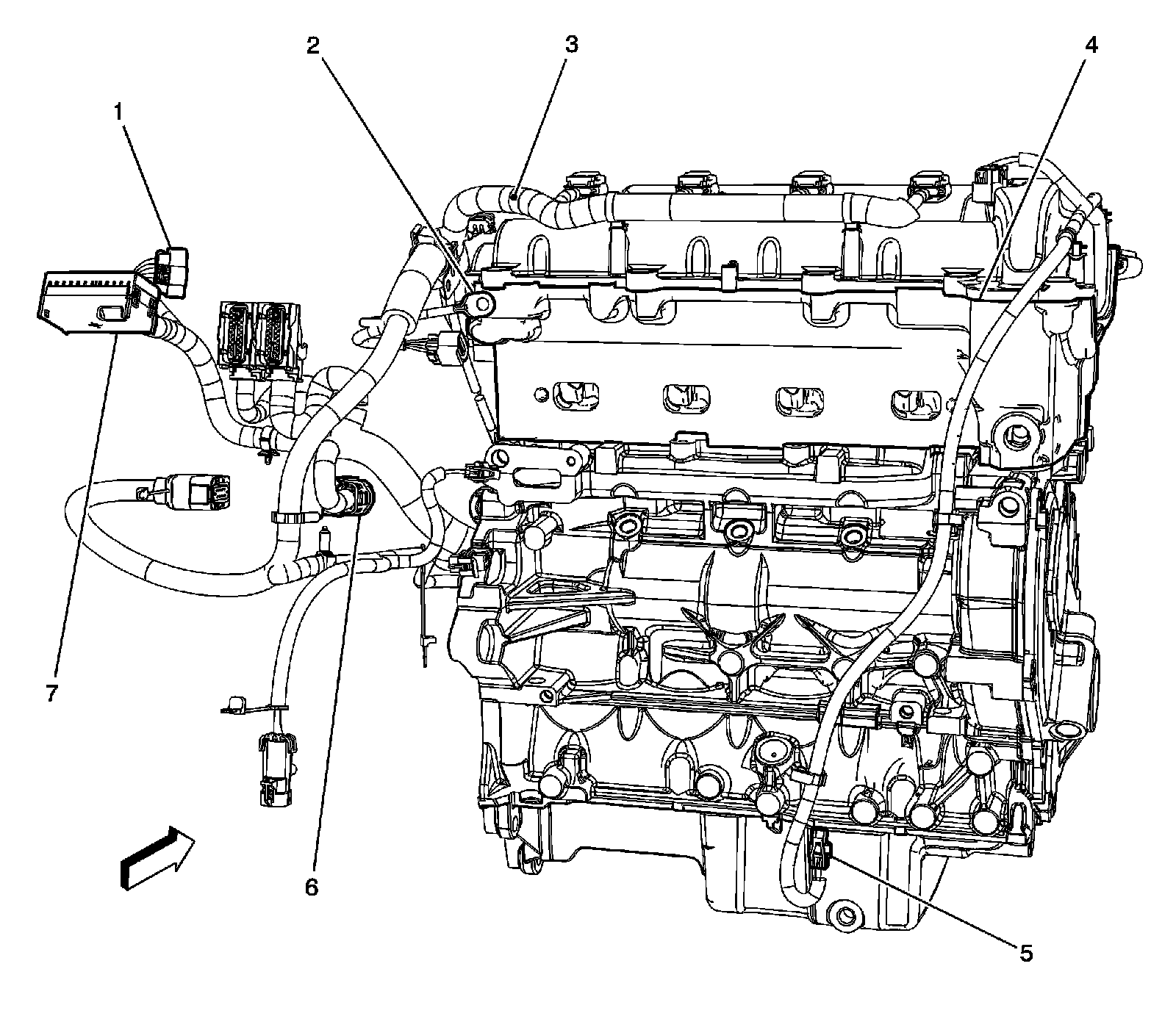

Engine Harness Routing - Rear (LE5)




1 - X108
2 - G110
3 - J101
4 - Cylinder Head
5 - Vehicle Speed Sensor (VSS) Connector
6 - X100 (MN5)
7 - Fuse Block - Underhood X1
