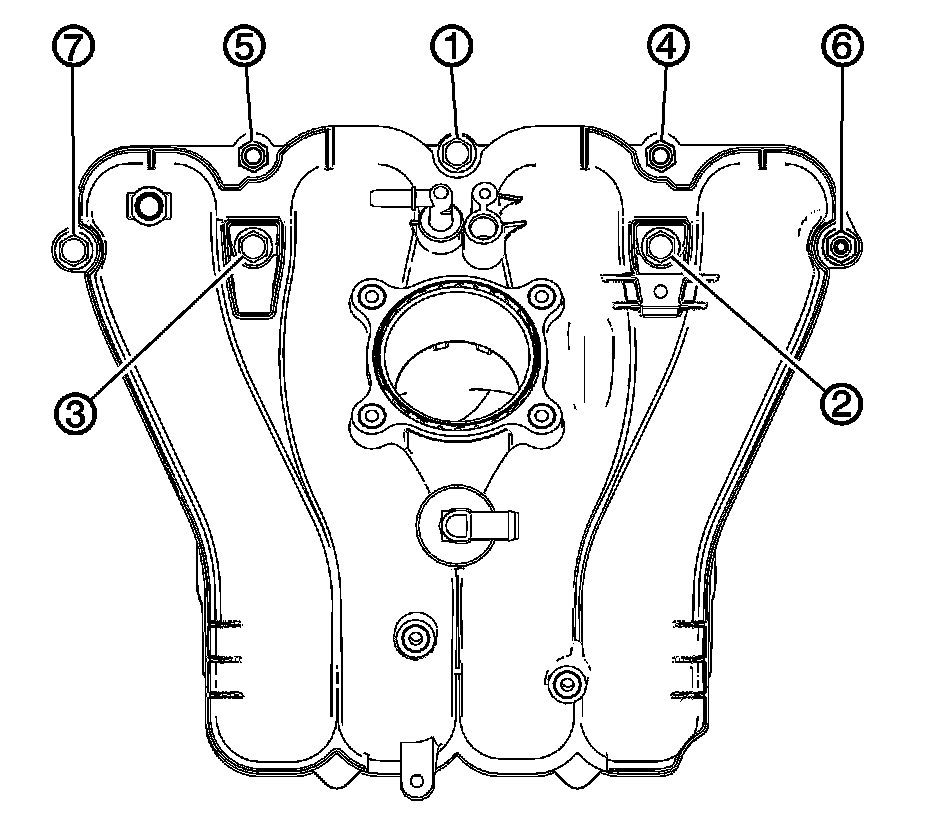

Intake Manifold
Intake Manifold
to Cylinder Head Bolt/Nut
10 Nm (89 lb in)
Intake Manifold
to Cylinder Head Stud
6 Nm (53 lb in)
