Timing Chain Tensioner

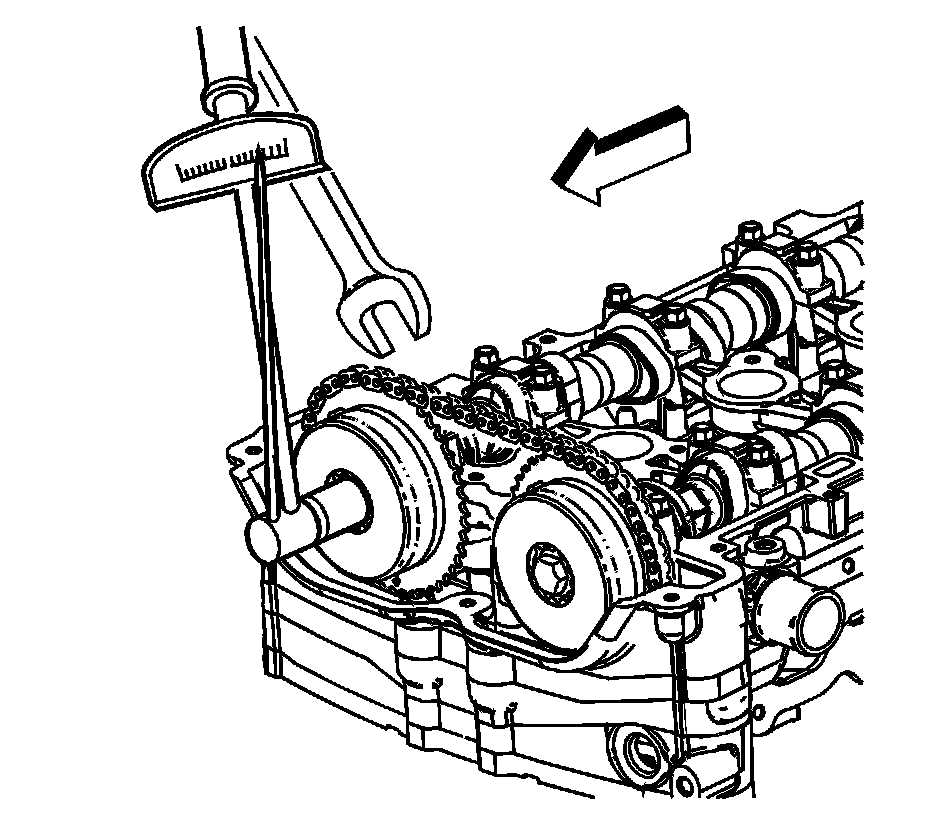

Using a 23 mm wrench, engage the hex on the intake camshaft, and using a torque wrench, tighten the camshaft actuator bolt.

Tighten the intake camshaft position actuator bolt to 30 Nm (22 lb ft), plus 100 degrees.

Using a 23 mm wrench, engage the hex on the exhaust camshaft, and using a torque wrench, tighten the camshaft actuator bolt.

Tighten the exhaust camshaft position actuator bolt to 30 Nm (22 lb ft), plus 100 degrees.
