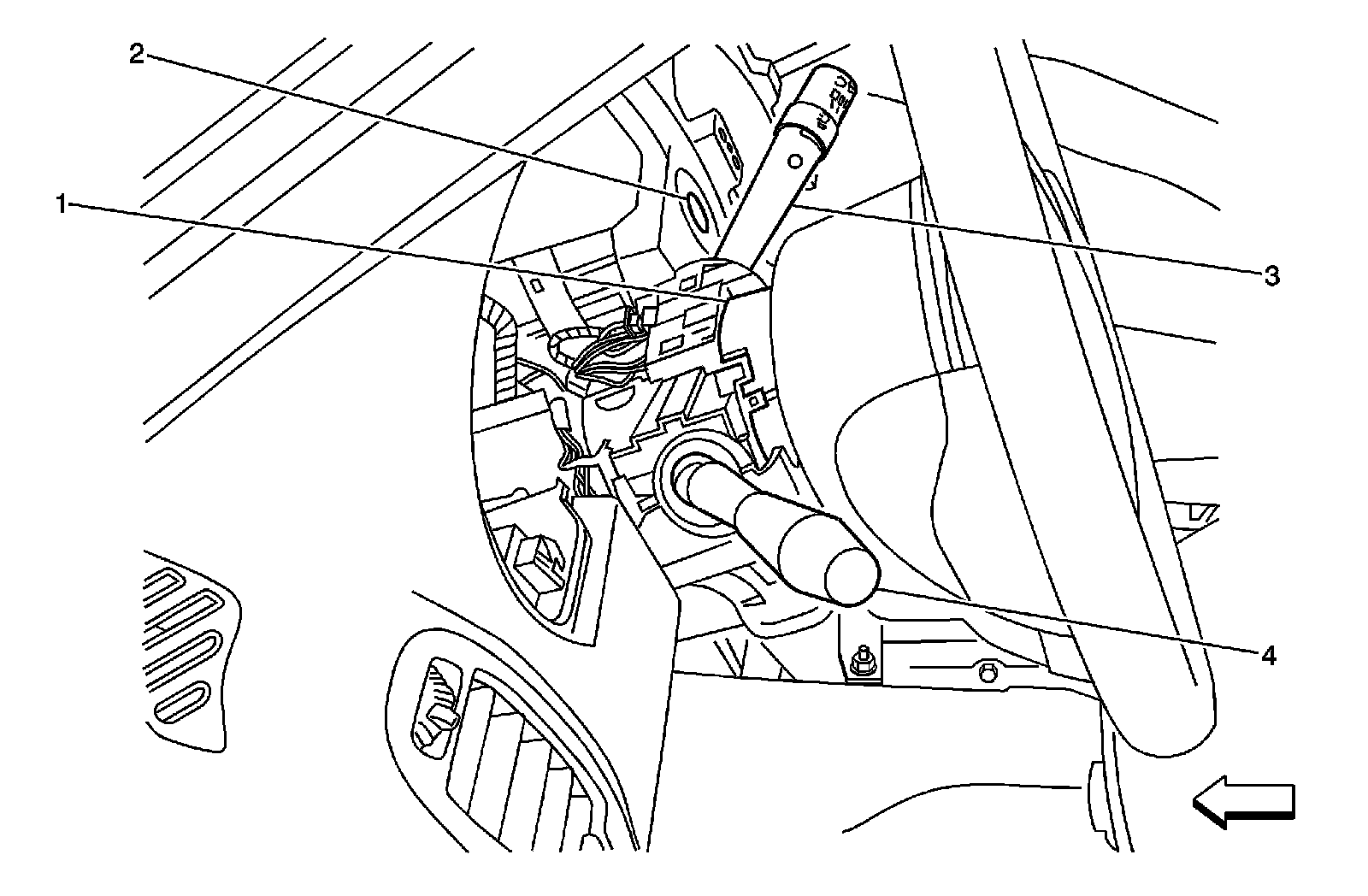

Top of Steering Column Components




Instrument Panel/Center Console Component Views

Top of Steering Column Components




1 - Inflatable Restraint Steering Wheel Module Coil
2 - Ignition Switch
3 - Windshield Wiper/Washer Switch
4 - Turn Signal/Multifunction Switch
