Engine Harness Routing - Rear

Harness Routing Views

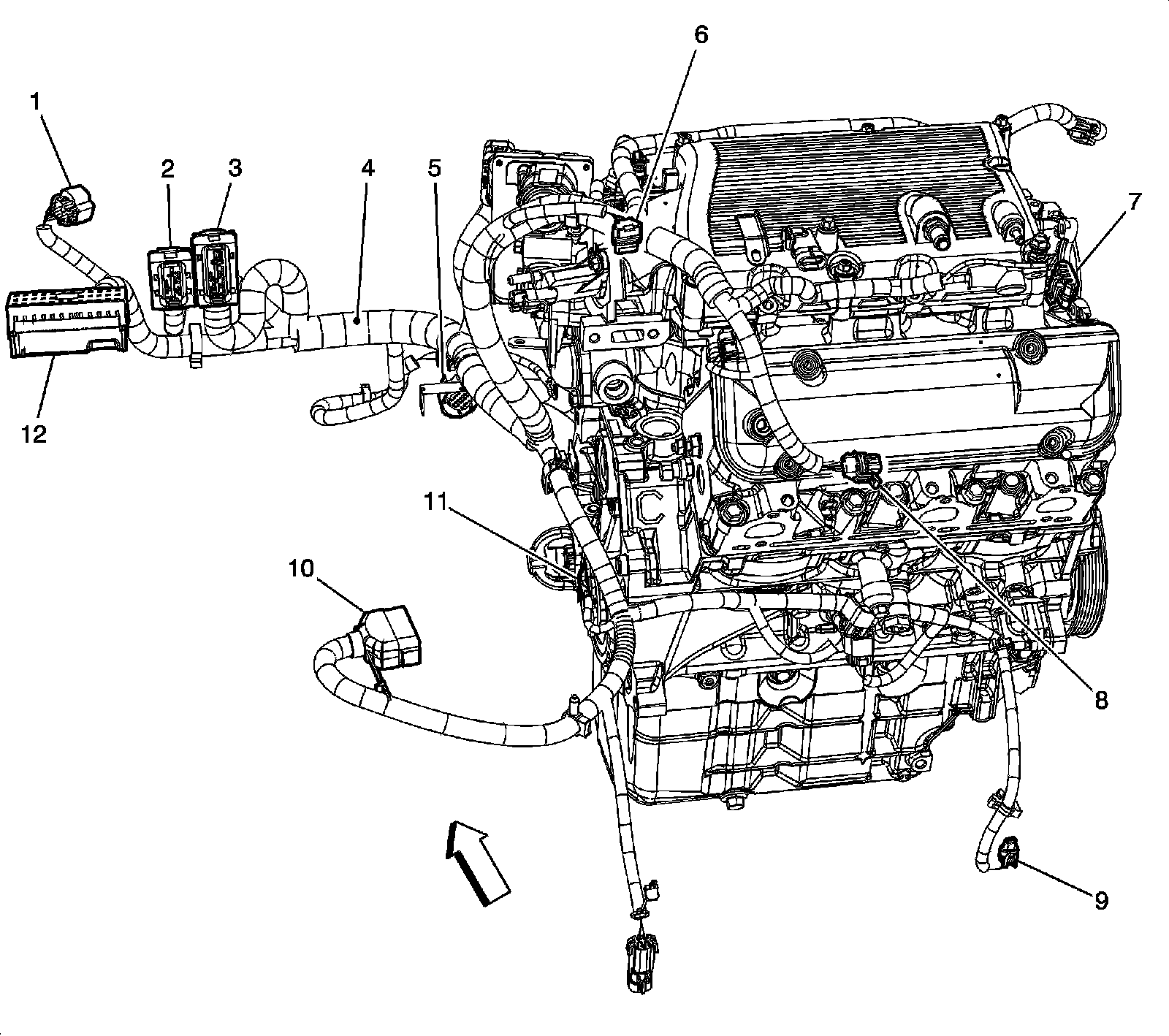

Engine Harness Routing - Rear (LZ4 or LZE)




1 - X108
2 - Engine Control Module (ECM) X3
3 - Engine Control Module (ECM) X2
4 - J118
5 - X100 (MN5)
6 - Exhaust Gas Recirculation (EGR) Valve Connector
7 - Generator Connector
8 - Heated Oxygen Connector (HO2S) Bank 1 Sensor 1 Connector
9 - Vehicle Speed Sensor (VSS) Connector
10 - Park/Neutral Position (PNP) Switch Connector
11 - G106
12 - Fuse Block - Underhood X1
