Instrument Panel/Center Console Component Views

Fig 1: Identifying I/P Console Components (Solstice)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Warning Switch
2	Ambient Light Sensor
3	Inflatable Restraint I/P Module Indicator
4	Fog Lamp Switch (T96)
5	I/P Dimmer Switch
6	Traction Control Switch (JL9)
7	HVAC Control Module
8	Inflatable Restraint I/P Module
9	Rear Compartment Lid/Glass Release Switch
10	Radio
11	Park Brake Lever
12	Accessory Power Outlet
13	Steering Wheel Control Switch - Right (K34)
14	Steering Wheel Control Switch - Left (UK3)
15	Inflatable Restraint Steering Wheel Module
16	Instrument Panel Cluster (IPC)

Fig 2: Identifying Instrument Panel Components (SKY)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Control Switch - Left (K34)
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Control Switch - Right (UK3)
5	Ambient Light Sensor
6	Hazard Warning Switch
7	Inflatable Restraint I/P Module
8	Instrument Panel Compartment
9	Rear Compartment Lid Release Switch/Rear Compartment Lid Ajar Switch
10	Accessory Power Outlet
11	Traction Control Switch
12	Radio
13	Park Brake Lever
14	Shifter Knob
15	Inflatable Restraint I/P Module Indicator
16	HVAC Controls
17	Windshield Wiper/Washer Switch
18	Inflatable Restraint Steering Wheel Module
19	Driver Information Center (DIC) Switch
20	I/P Dimmer Switch
21	Fog Lamp Switch (T96)

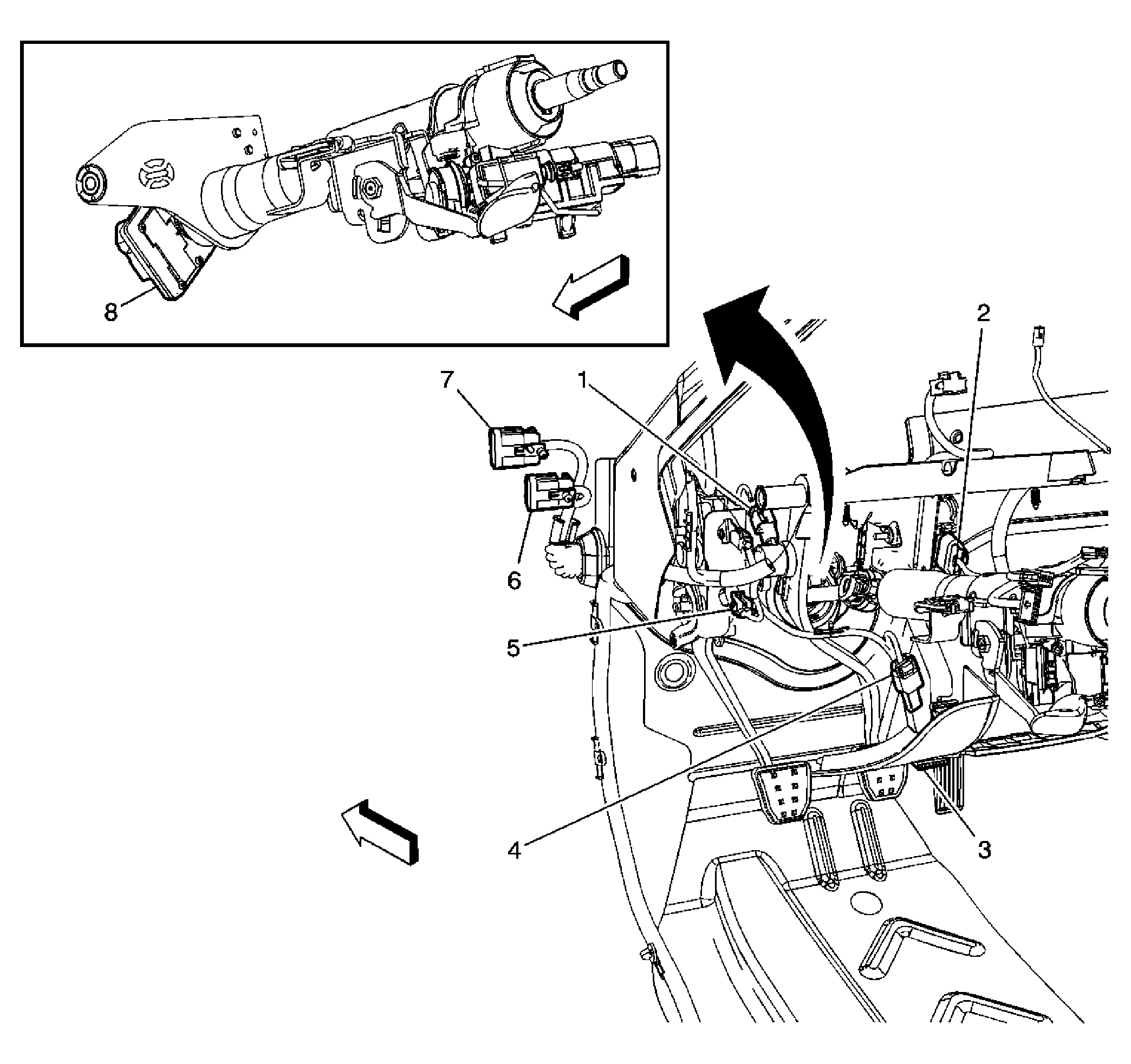

Fig 3: Identifying Lower Left Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pedal Position (BPP) Sensor
2	Accelerator Pedal Position (APP) Sensor
3	Data Link Connector (DLC)
4	Data Link Resistor
5	Clutch Pedal Position (CPP) Sensor (MA5)
6	X500
7	X501
8	Steering Angle Sensor

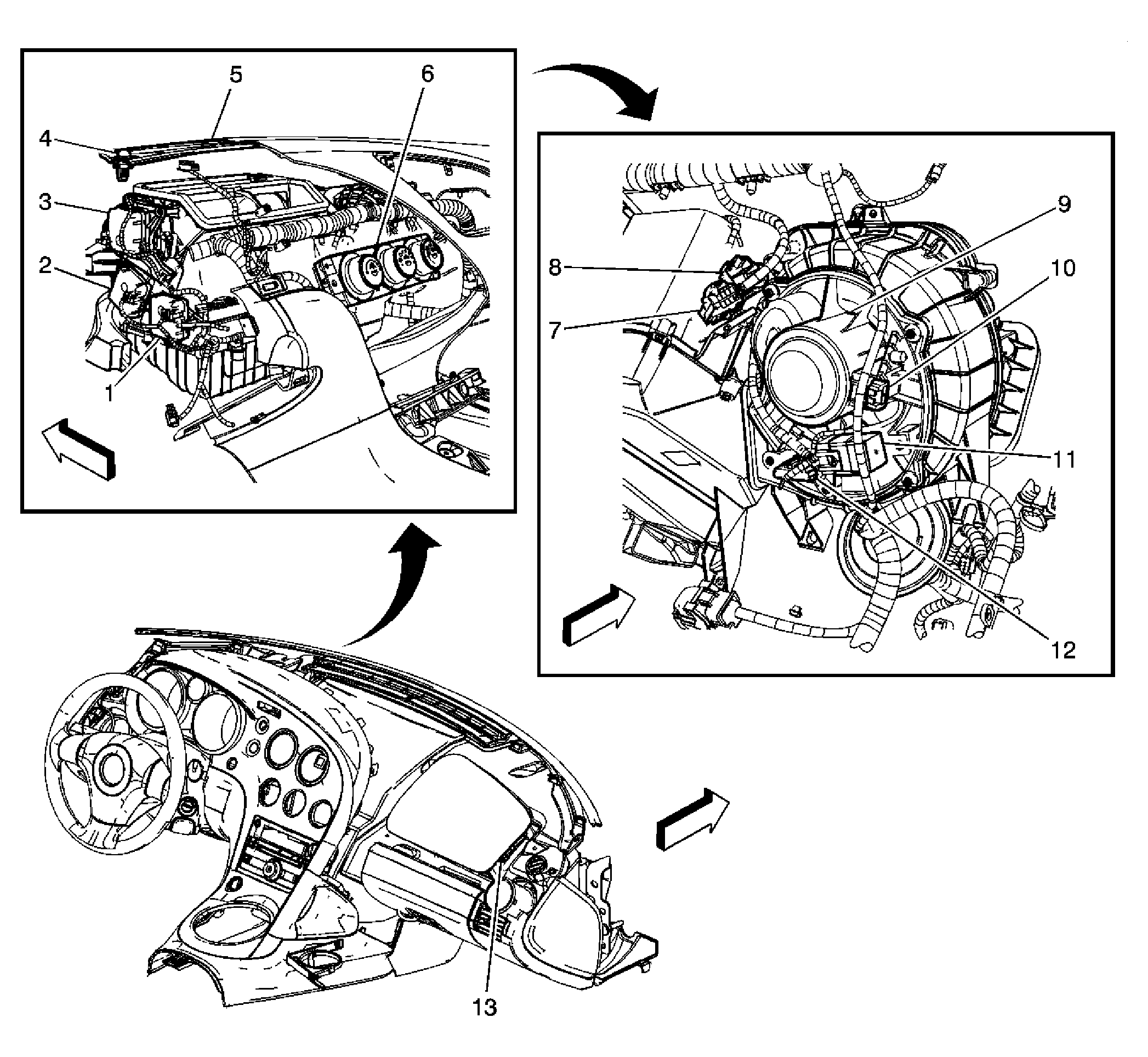

Fig 4: Identifying Lower Right Side Of Instrument Panel (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator - Right
2	Air Temperature Actuator - Left
3	Mode Actuator
4	Ambient Light Sensor
5	Air Vent Grille
6	HVAC Control Module
7	X216
8	X218
9	Blower Motor
10	Blower Motor Connector
11	Blower Motor High Speed Relay
12	Blower Motor Resistor Assembly
13	X208

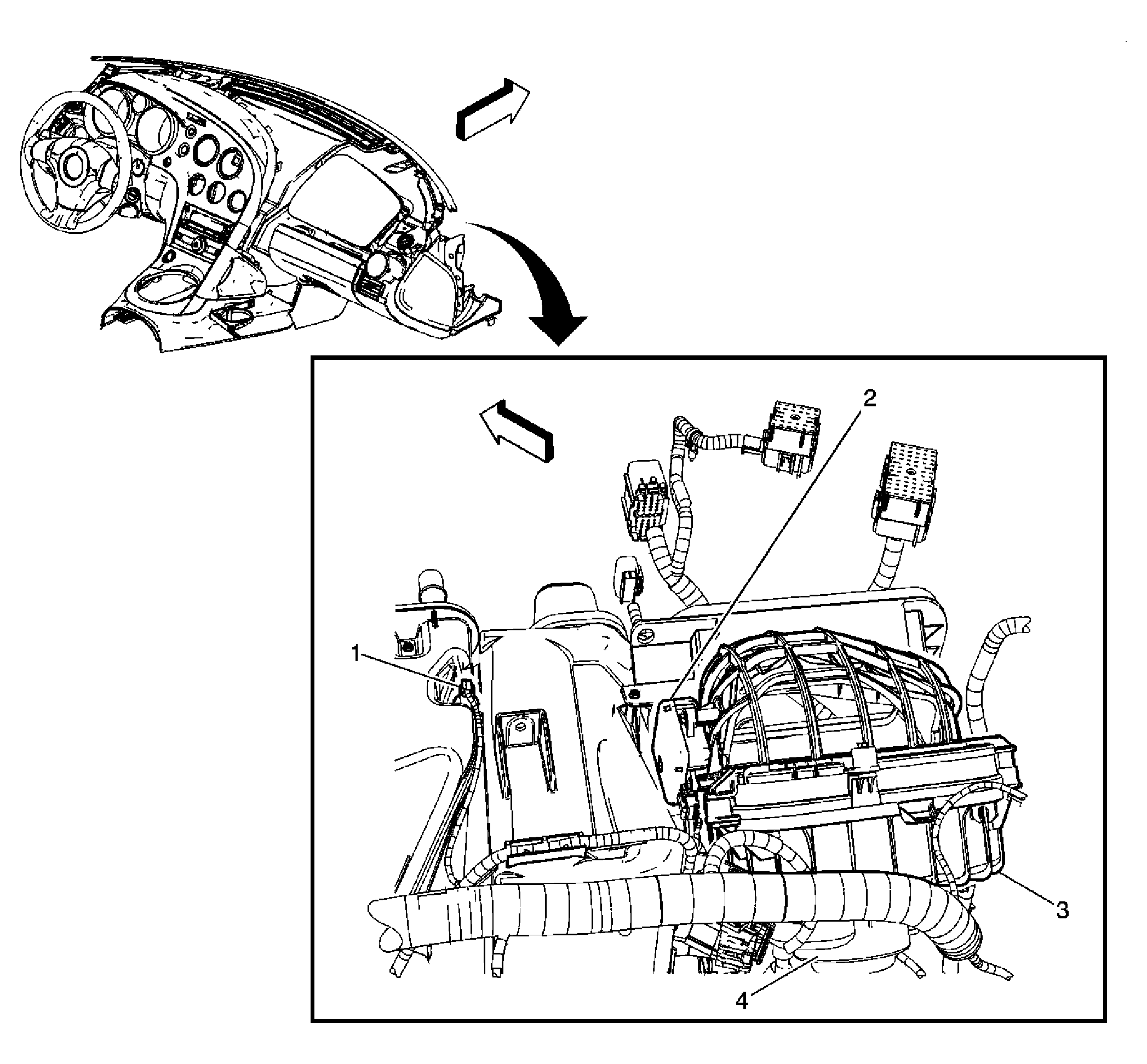

Fig 5: Identifying Lower Right Side of Instrument Panel (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporator Temperature Sensor (C60)
2	Recirculation Actuator (C60)
3	HVAC Case
4	Blower Motor

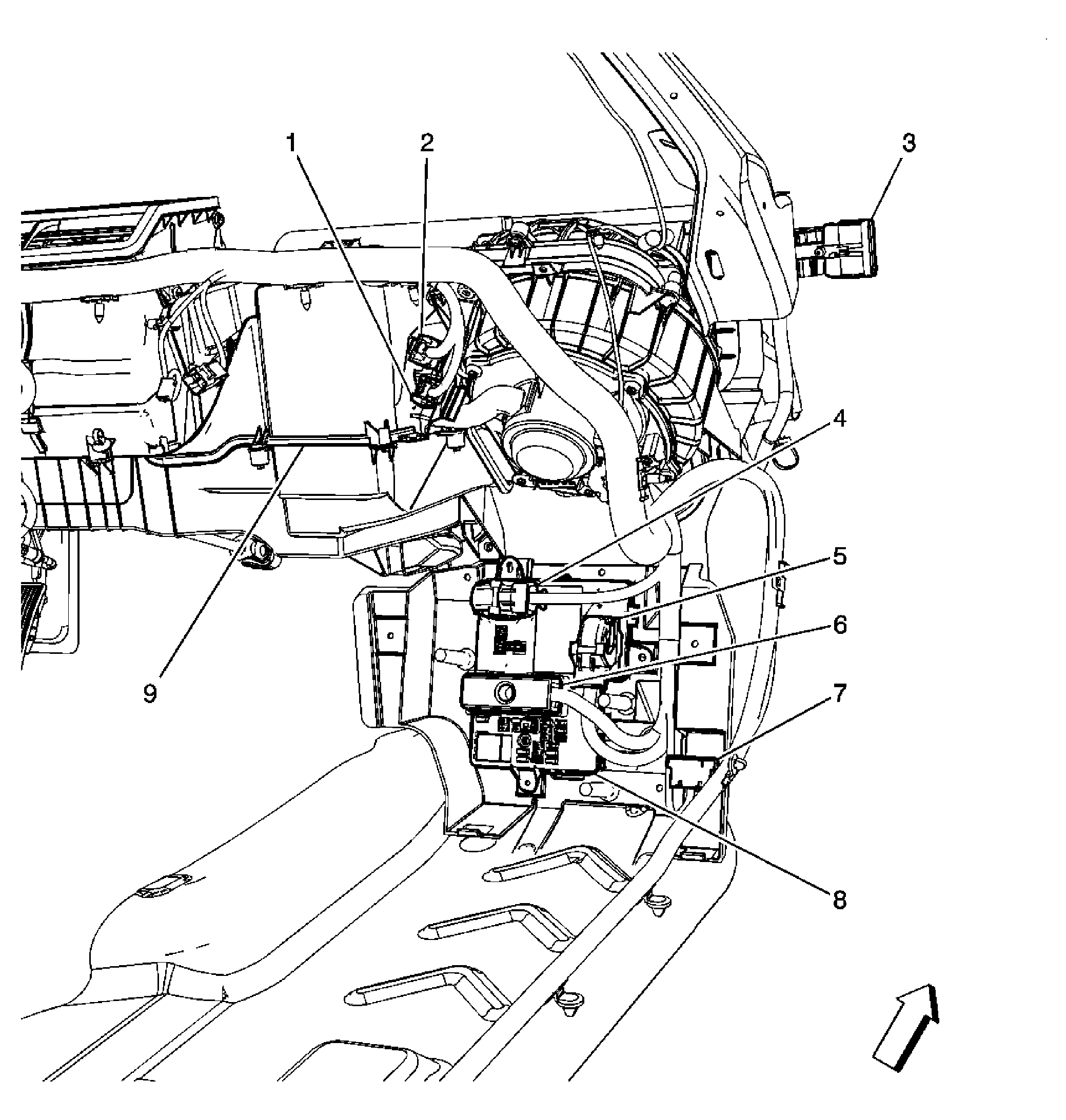

Fig 6: Identifying Right Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

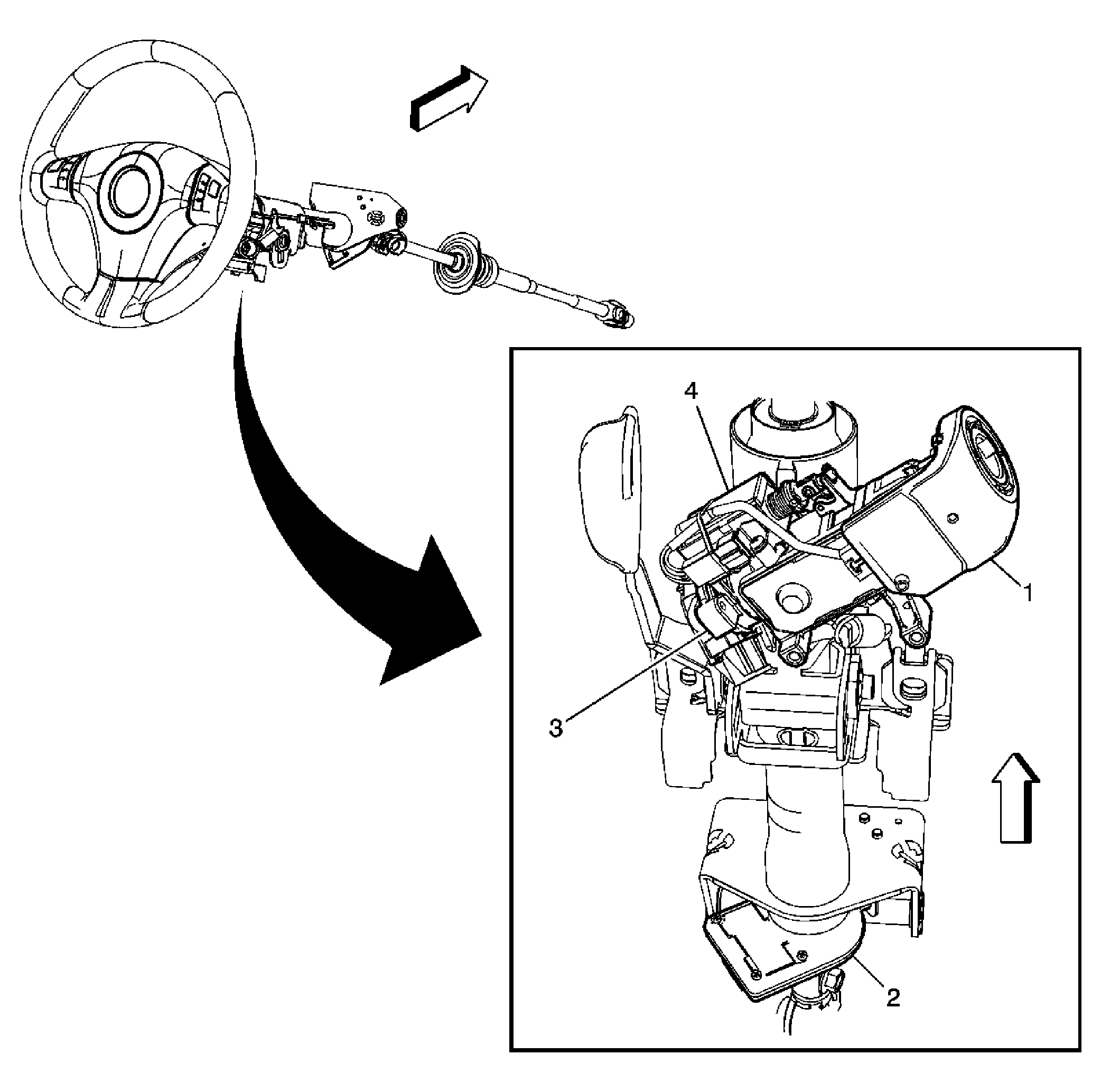

Fig 7: Identifying Left Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Theft Deterrent Module (TDM)
2	Steering Angle Sensor
3	Ignition Switch
4	Ignition Lock Cylinder Control Actuator (M82)

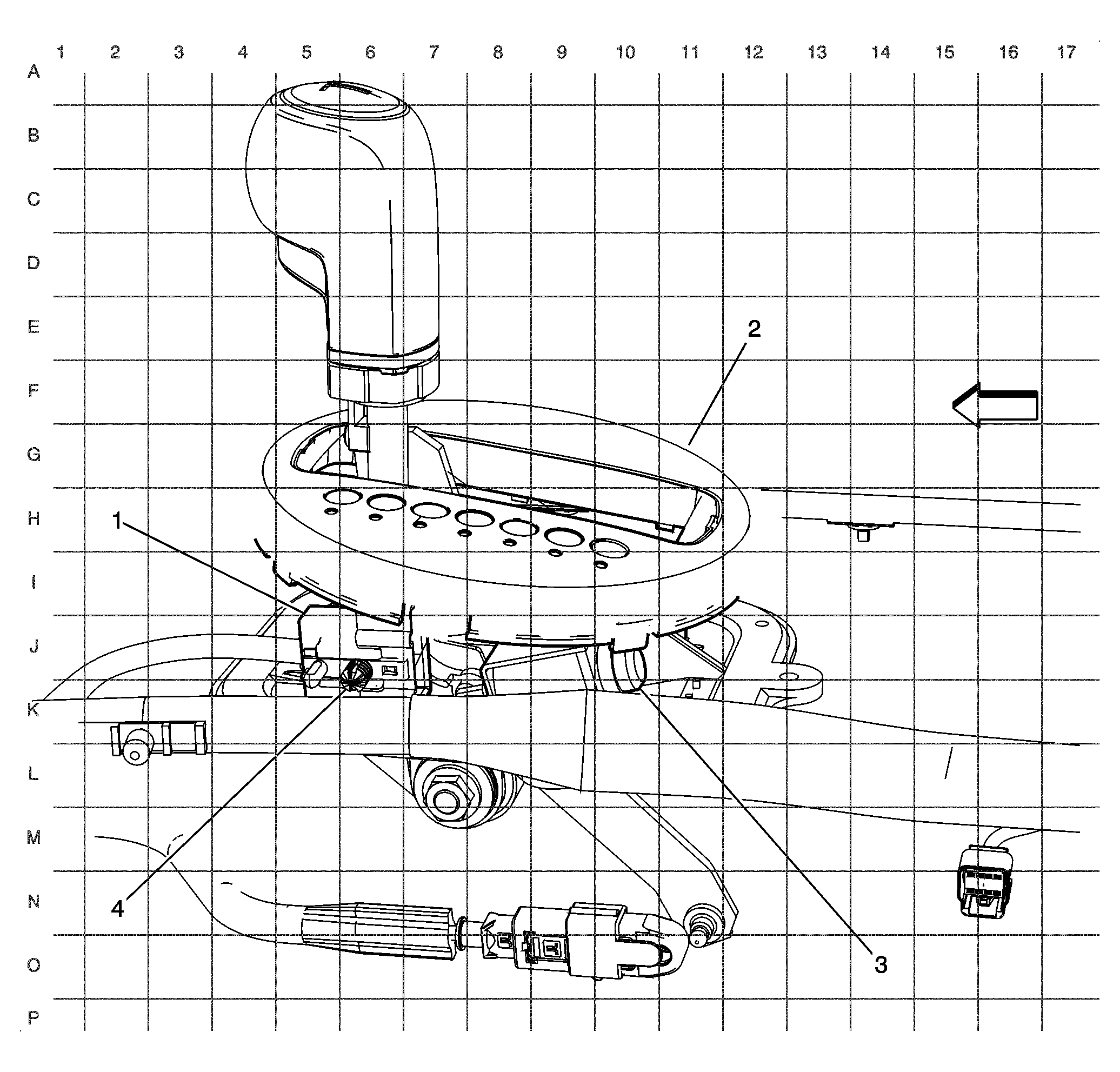

Fig 8: Identifying Underneath Floor Shifter

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X207
2	Floor Shifter
3	Automatic Transmission Shift Lock Control Solenoid
4	Park Position Switch

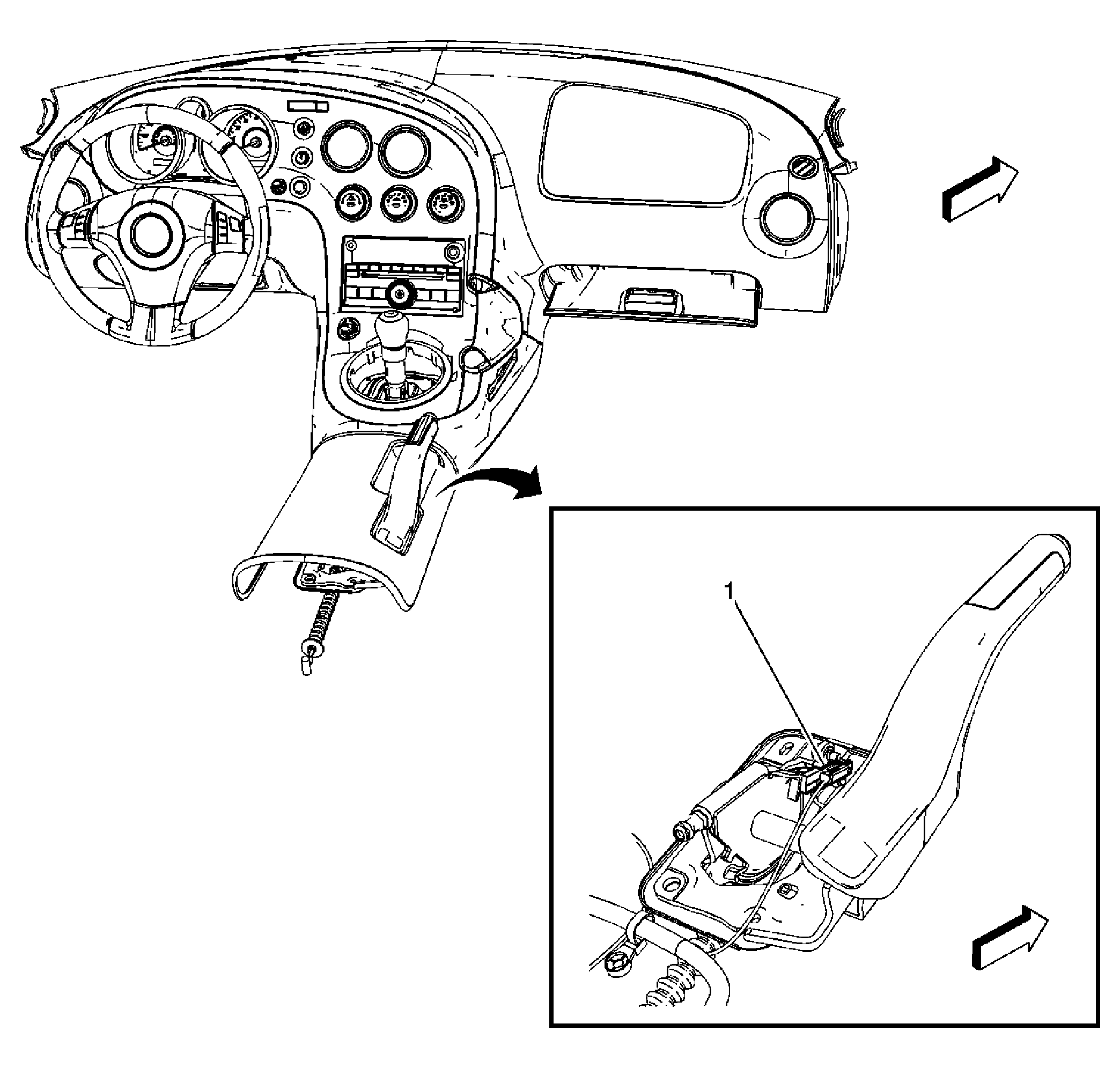

Fig 9: Identifying Center Of Interior - Under Floor Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch

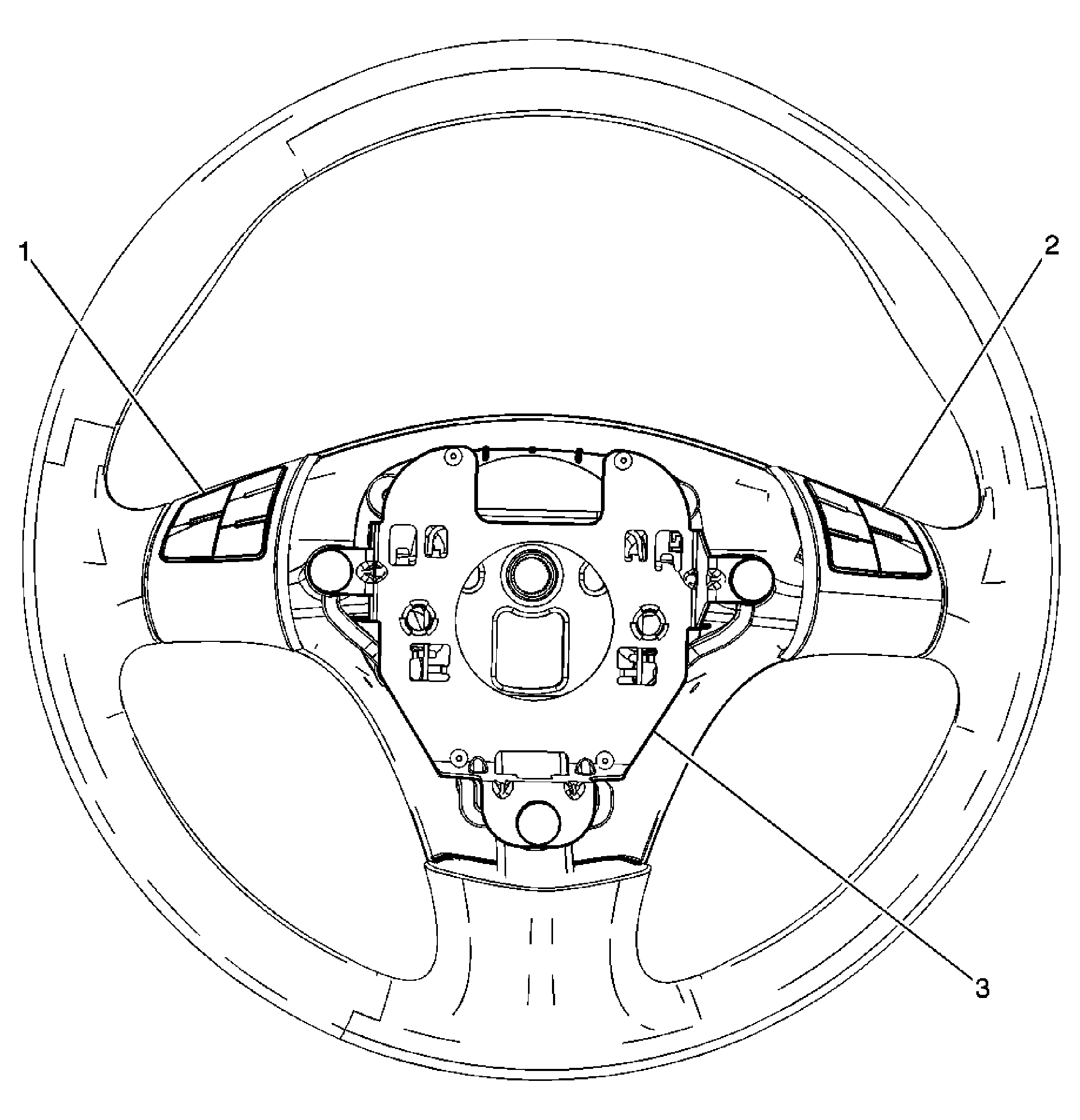

Fig 10: Identifying Steering Wheel Components (3-Spoke)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Control Switch - Left (K34)
2	Steering Wheel Control Switch - Right (UK3)
3	Horn Switch
