Starting System

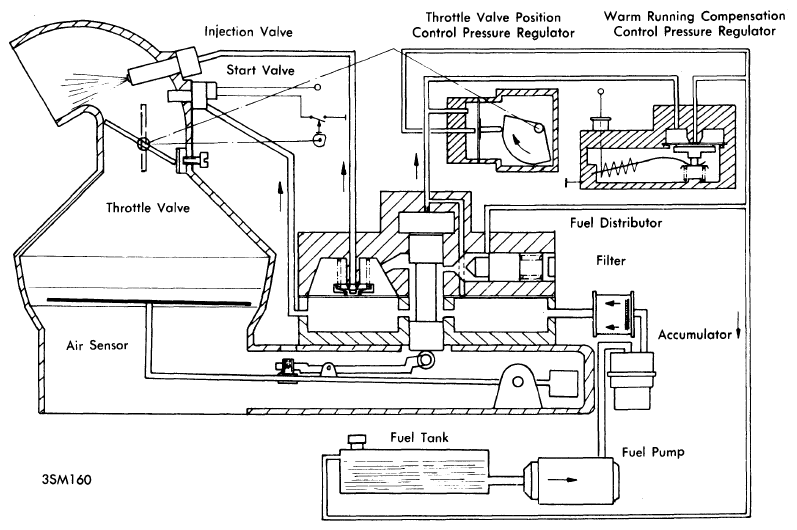

Since air flow created by engine pistons during starting is not sufficient to operate plunger of fuel distributor, an additional start valve is provided in air distributor. Start valve receives fuel from primary circuit of fuel distributor. This valve is activated whenever engine is cranked with hand throttle fully open. Solenoid of starter valve receives its current from starter circuit by way of a switch on hand throttle.
