Ignition Control Module: Locations

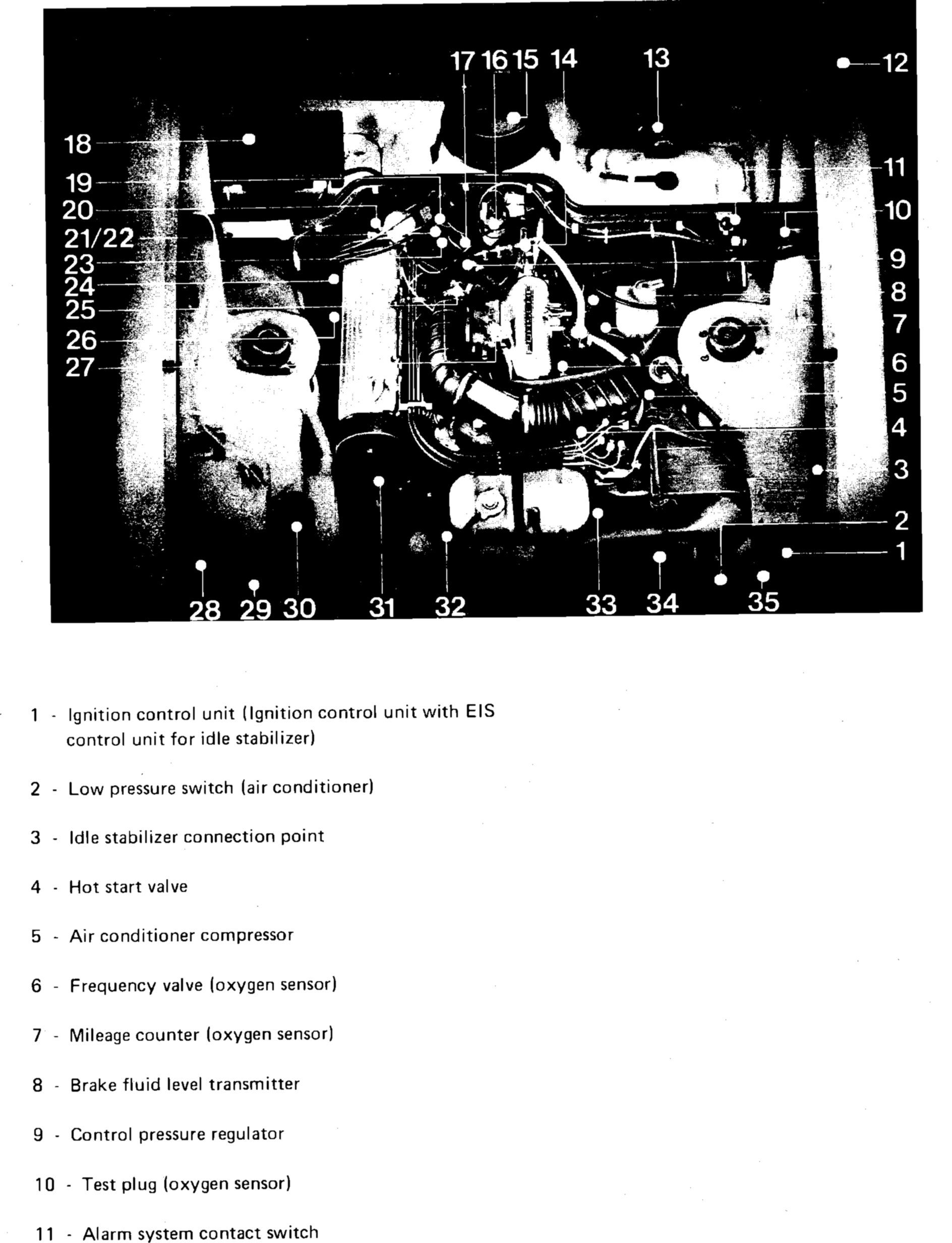

Engine Compartment Component Locations (Part 1 Of 2).:




Engine Compartment Component Locations (Part 1 Of 2).:




Front LH Side Of Engine Compartment

Applicable to: 924
