Engine Oiling System

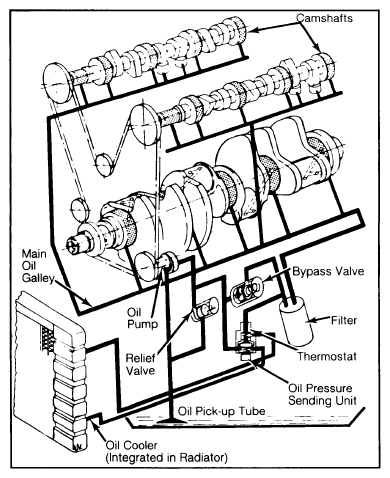

Engine utilizes a wet sump with an oil cooler integrated in the vehicle radiator as a heat exchanger. Sickle type oil pump is located in a separate cast iron housing bolted to the left front of the engine. Pump is driven by toothed belt.
Full pressure system pumps oil to pressure relief valve, thermostat, main oil passage, filter, crankcase upper section, cylinder heads and camshaft housings. All main oil passages are cast into the mating surface of the crankcase lower section.
