Miscellaneous Components

MISCELLANEOUS COMPONENTS LOCATION

Component Location
CDI Control Unit Capacitor On left side of engine compartment. See Figure .

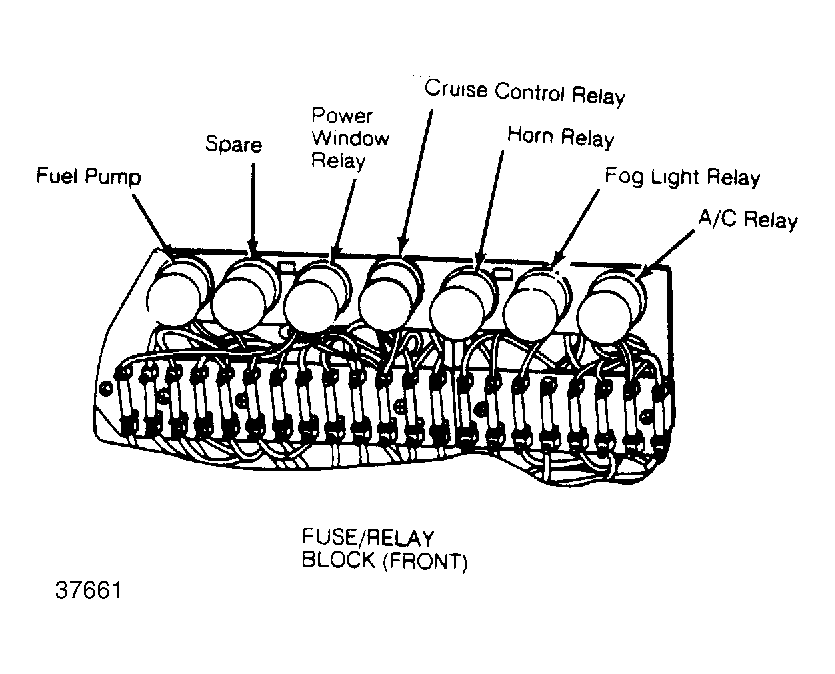

Fuse/Relay Block (Front) On left side of luggage compartment. See Figure & Figure .
Fuse/Relay Block (Rear) On left side of engine compartment. See Figure & Figure .
Oxygen Sensor Reset Button Behind speedometer.
