Control Units

CONTROL UNITS LOCATION

Component Location
ABS Control Unit Behind left kick panel.
A/C Control Unit On left side of A/C box.

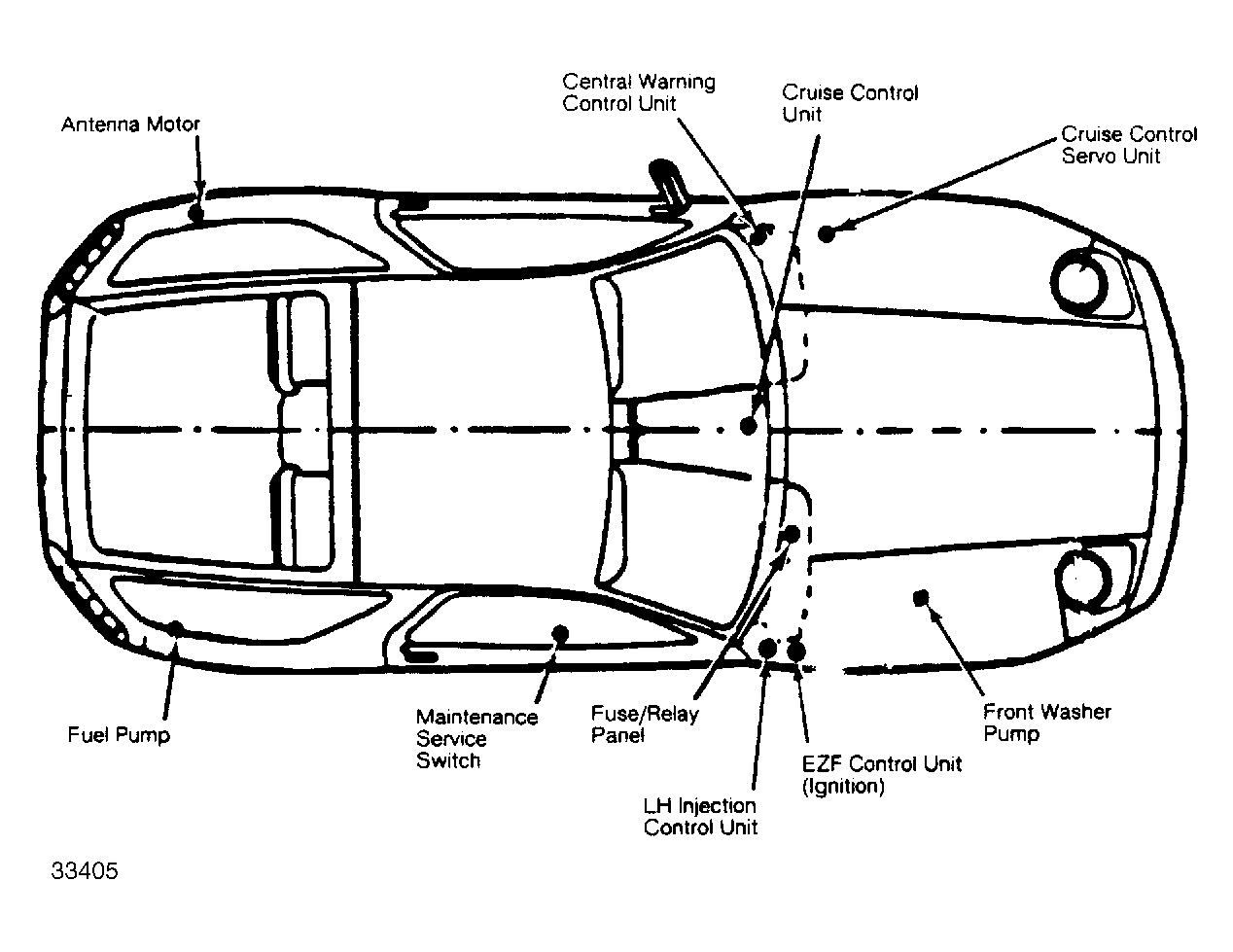

Central Warning System Control Unit Underneath foot rest in drivers footwell. See Figure .
Cruise Control Unit Behind center console. See Figure .
LH Injection Control Unit On right passengers footwell. See Figure .
EZF Control Unit (Ignition) In passengers footwell next to EFI control unit. See Figure .
Wiper Control Unit Under dash on left electrical bracket.
