Electronic Control Unit: Notes

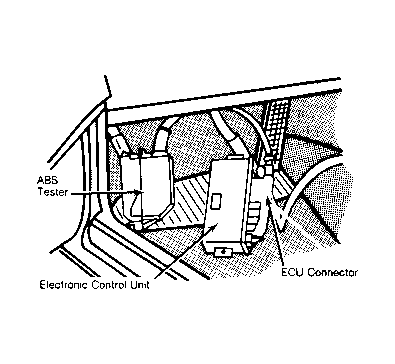

The electronic control unit controls all solenoid valve functions in the hydraulic unit. On 928S models, the electronic unit is located above hood release handle on the left kick panel. On 944 models, it is located in the passenger side kick panel.
The signal processing section processes input by deriving acceleration, deceleration and wheel slip values from the speed sensor's signals. This information is sent to the logic section.
