Anti-Lock Brake System: Testing: Tester

Bosch Tester (016.00) is used to check control unit function, hydraulic unit, wire harness and related ABS groups. Actual values determined with tester must be compared with corresponding nominal values. If actual value deviates from nominal value, see TROUBLE SHOOTING  chart at end of test section.

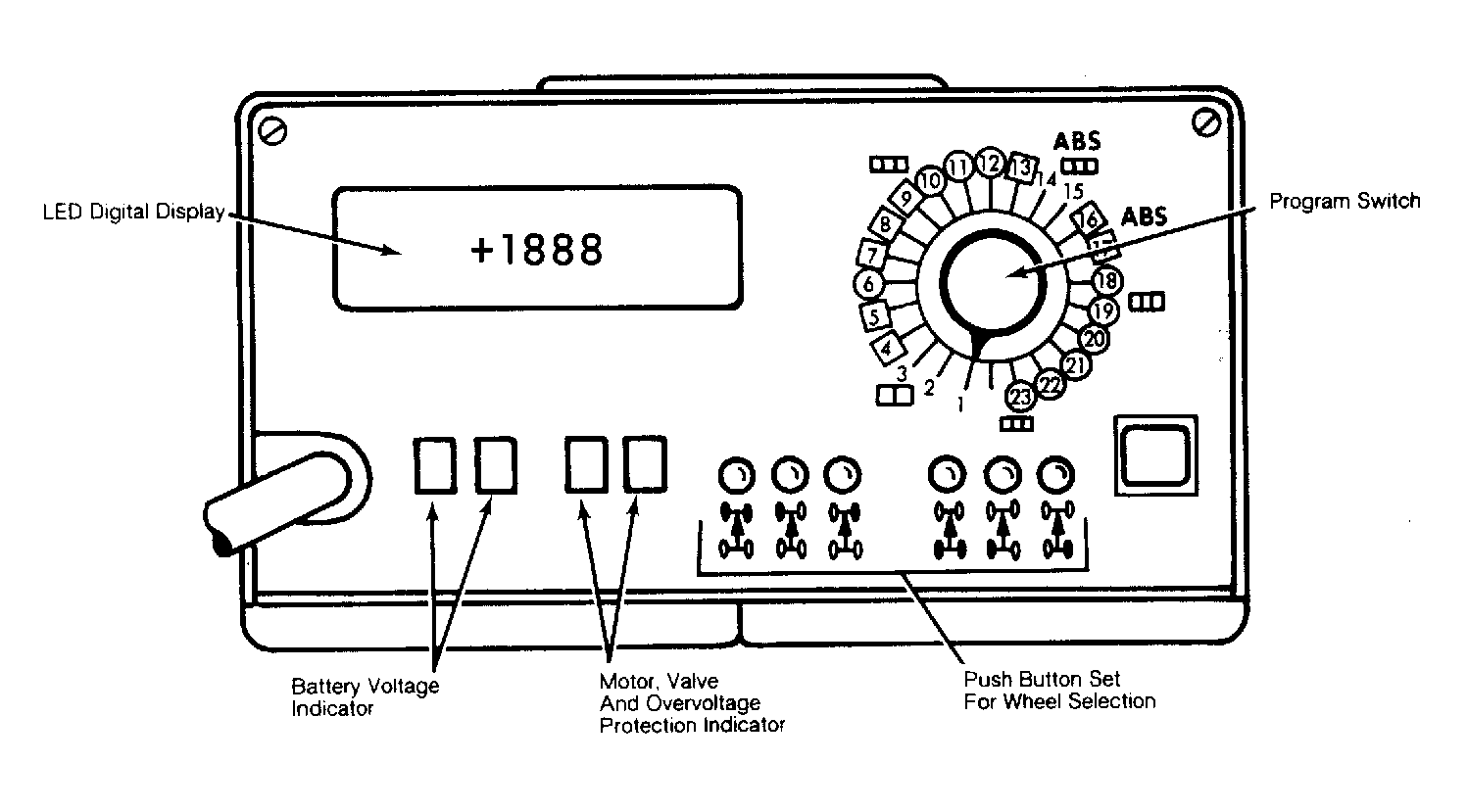

Fig 1: Bosch ABS Tester (016.00)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
