Brake Master Cylinder: Notes

A stepped brake master cylinder with 2 central valves is used.

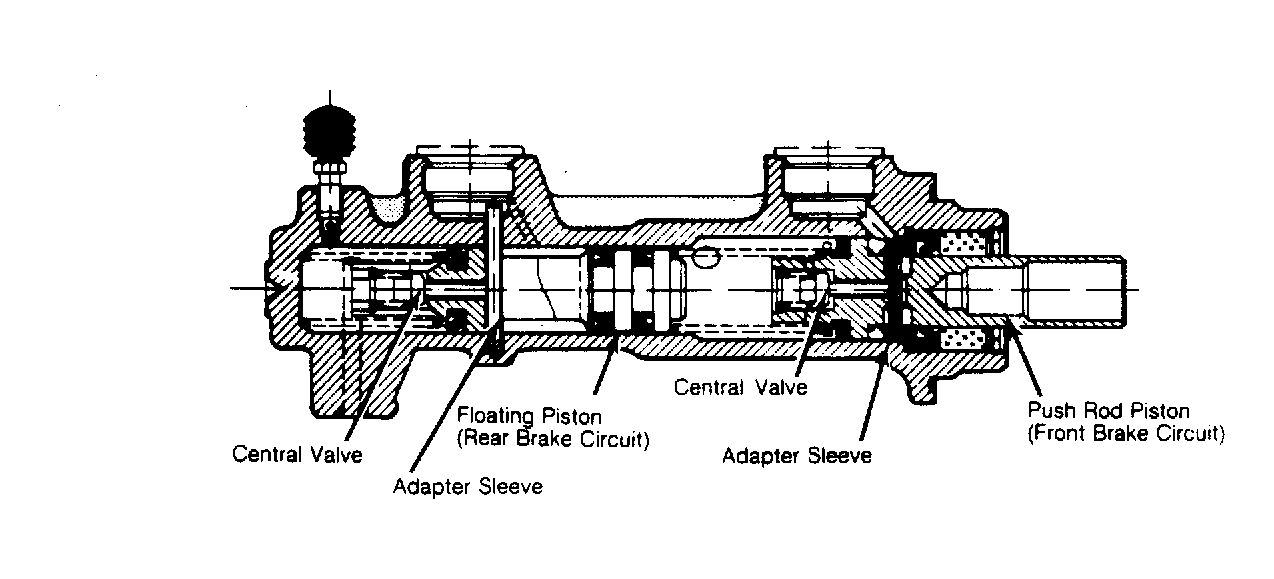

Fig 1: Porsche ABS Master Cylinder
G52165Courtesy of PORSCHE OF NORTH AMERICA, INC.
