Alignment Procedures

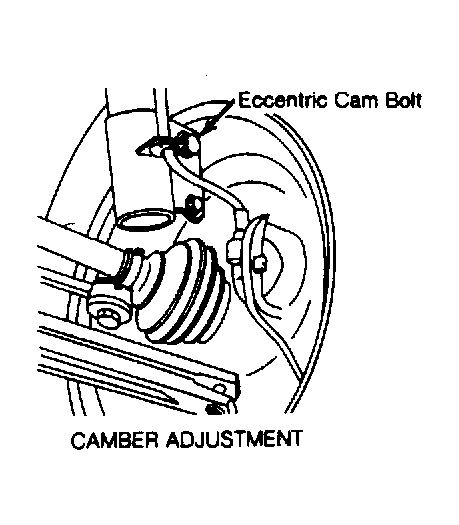

Fig 1: Front Camber Adjustment To decrease camber, decrease width at eccentric contact point.
G100621

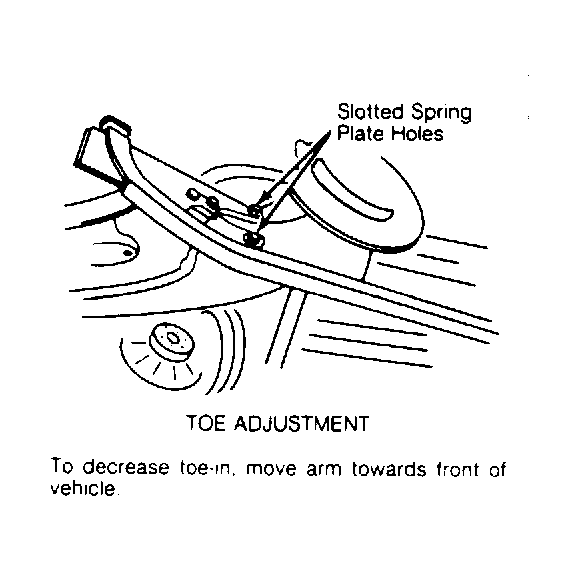

Fig 2: Rear Toe Adjustment To decrease toe-in, move arm towards front of vehicle.
G103986
NOTE: Alignment procedures not available.
