Control Units

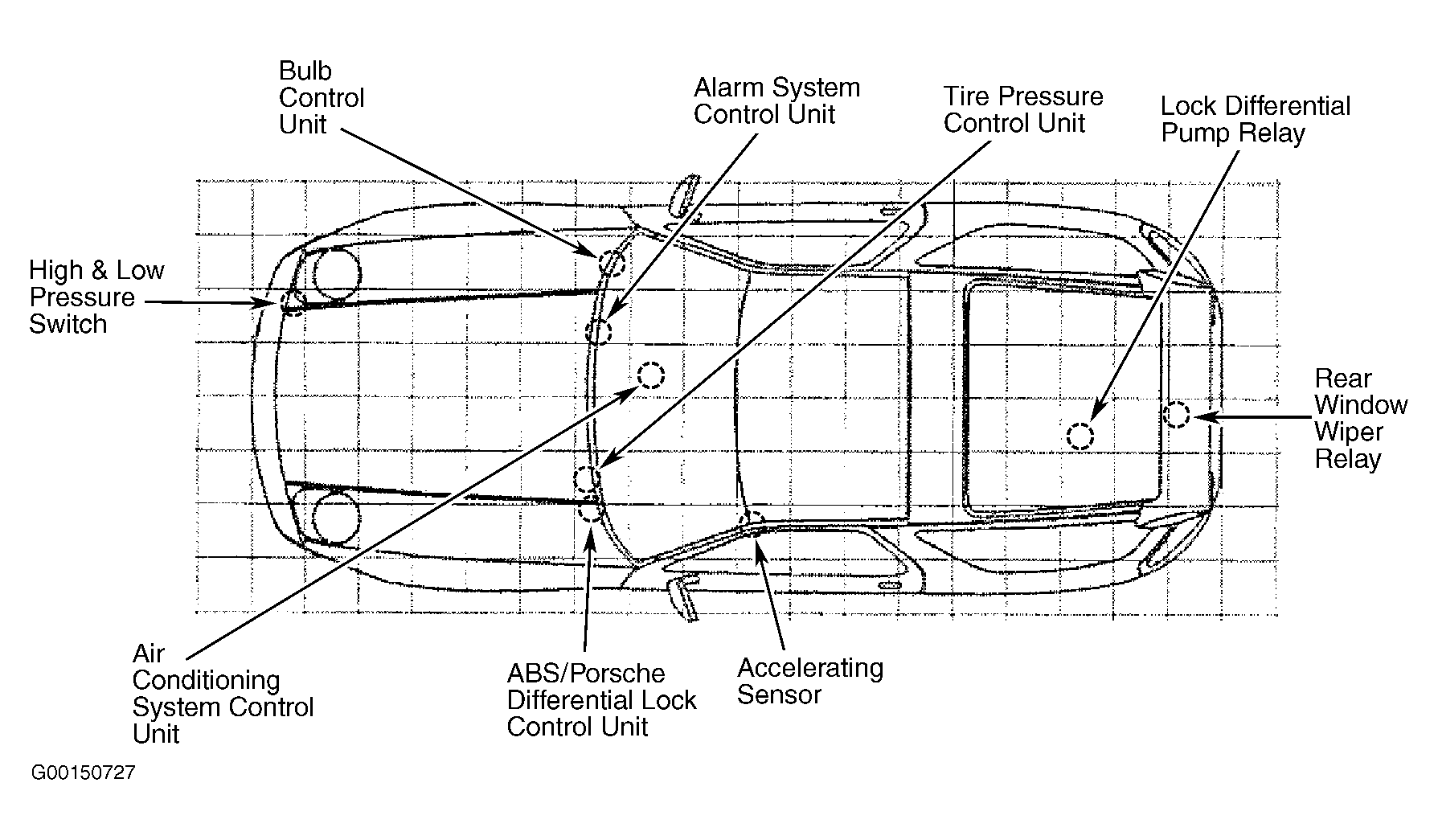

CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS/Porsche Differential Lock Control Unit | On side of driver's footwell. See Figure . |
| Air Conditioning System Control Unit | In heater box. See Figure . |
| Alarm System Additional Control Unit | In center console below radio. |
| Alarm System Control Unit | Under left seat. See Figure . |
| Bulb Control Unit | On passenger's parcel tray. See Figure . |
| Coolant Fan Control Unit | Under cover on passenger's side sill. |
| Cruise Control, Control Unit | In driver's footwell, below foot rest. |
| EZK Control Unit | In passenger's footwell, on control unit console. |
| Ignition Circuit Control Unit | On control unit, at console. |
| Left Jetronic Control Unit | In passenger's footwell, on control unit. |
| Mirror Memory Control Unit | In driver's footwell. |
| Seat Memory Control Unit (Left) | In left seat. |
| Seat Memory Control Unit (Right) | In right seat. |
| Tire Pressure Control Unit | On instrument panel. See Figure . |
