Firing Order & Timing Marks

NOTE: For location of ignition timing mark, see ADJUSTMENTS article in the ENGINE PERFORMANCE Section

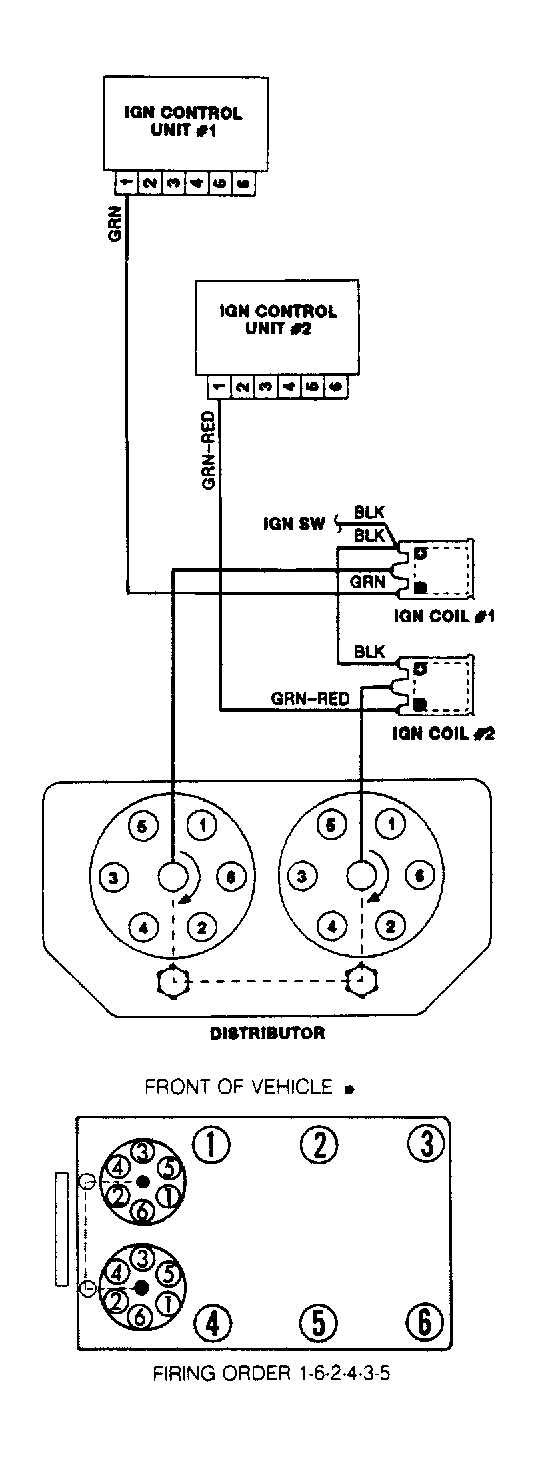

Fig 1: Firing Order & Distributor Rotation (Double Ignition System)
G90I17333
